Larkin LEL0060AS6AMAB0000 Evaporator, Low Profile, 2-Speed EC, 115/1/60

Product Description

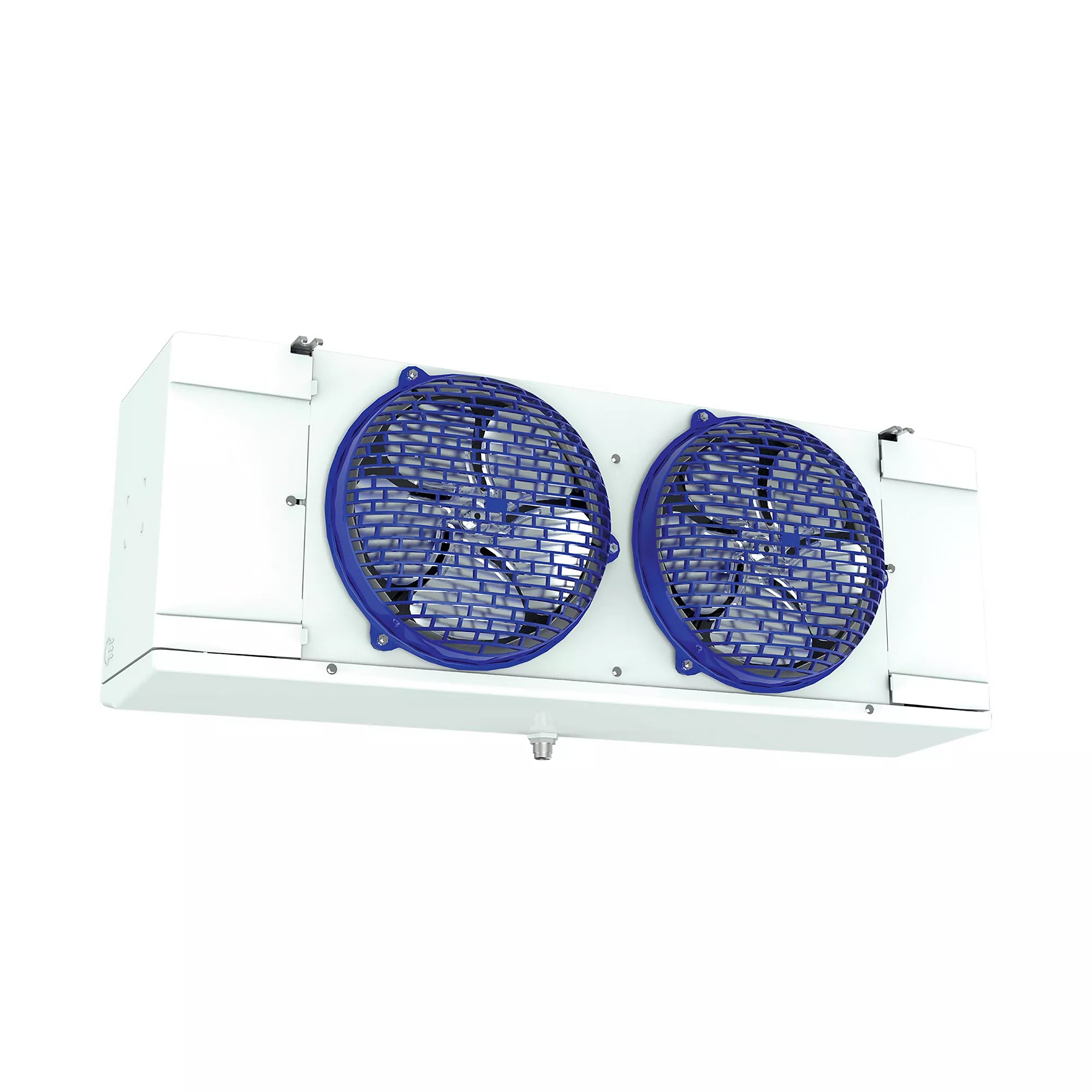

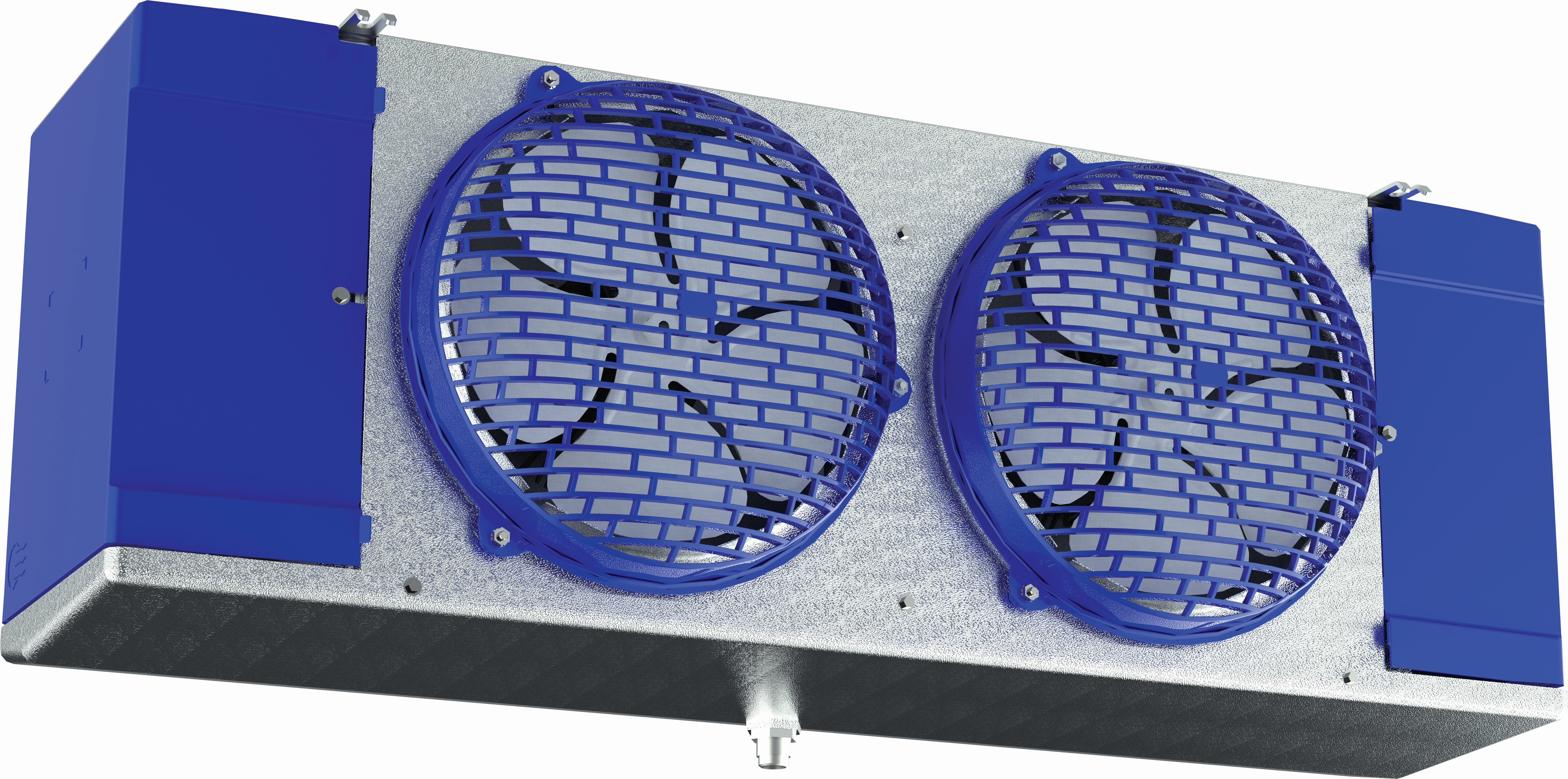

The Larkin LEL0060AS6AMAB0000 is a low profile unit cooler featuring a cabinet design with hinged, removable front access panels for easy access to electrical and refrigeration components. It has a molded fan guard and access panels made of durable, NSF and UL Sanitation rated plastic. This unit cooler is designed for walk-in applications with an air defrost system and a 2-speed EC motor.

• Cabinet design features hinged, removable front access panels on each side for easy access.
• Molded fan guard and access panels are made of strong, durable, NSF and UL Sanitation rated lightweight and damage-resistant molded plastic material.

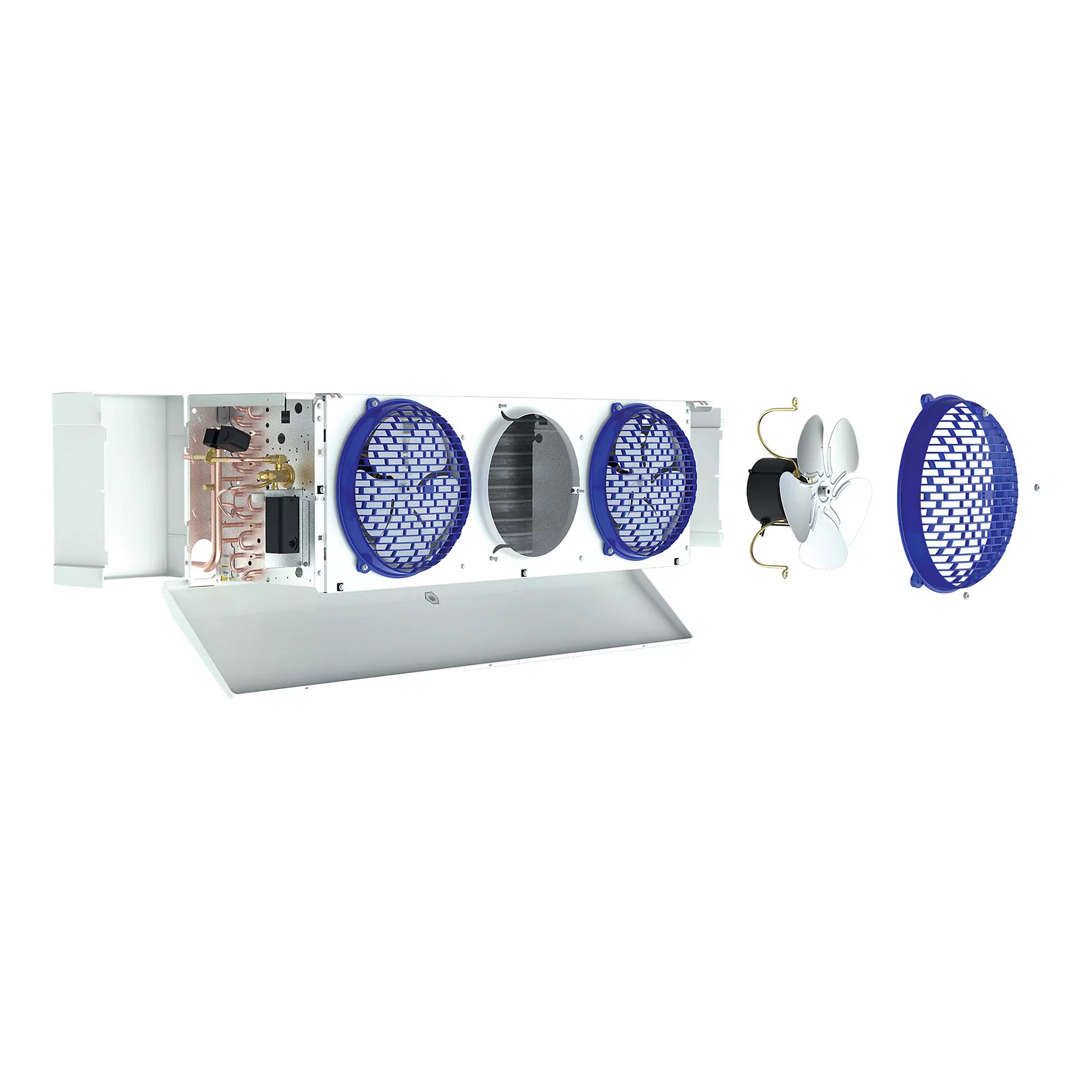

• Quick-removal fan guard/motor assembly for easier servicing of air mover parts.

Product Highlights

This Larkin low profile unit cooler is ideal for walk-in refrigeration applications. Features include easy access panels, durable construction, and a 2-speed EC motor.

Product Information

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: LEL0060AS6AMAB0000
• Country of Origin: USA

Technical Specifications

• Brand: Larkin
• Manufacturer Part Number: LEL0060AS6AMAB0000
• Unit Cooler Nominal BTU: 6000
• Voltage: 115 VAC
• Phase: Single
• Cycle/Hertz: 60 Hz
• Motor Type: ECM (Electronically Commutated Motor)
• Unit Cooler Defrost Type: Air
• Unit Cooler Evaporator Style: Low Profile
• Unit Cooler Number of Fans: 1
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• UL Listed: Yes
• ETL Listed: No
• Prop 65: Yes
• Minimum Circuit Ampacity (MCA): 1.1
• Amps: 0.9
• Drain Connection Size: 3/4"
• Liquid Line Size (OD): 1/2"
• Suction Line Size (OD): 5/8"
• Fins per Inch (FPI): 6
• Unit Cooler Type: Walk-In
• Cooling Capacity: 6000 BTU/Hour
• Power Rating: 55 Watt (Motor)
• Airflow Rating: 653 CFM
• Horsepower: 1/20
• Enclosure Material: Stainless Steel
