Larkin 22592101 Wire Harness Hvac Replacement

Product Description

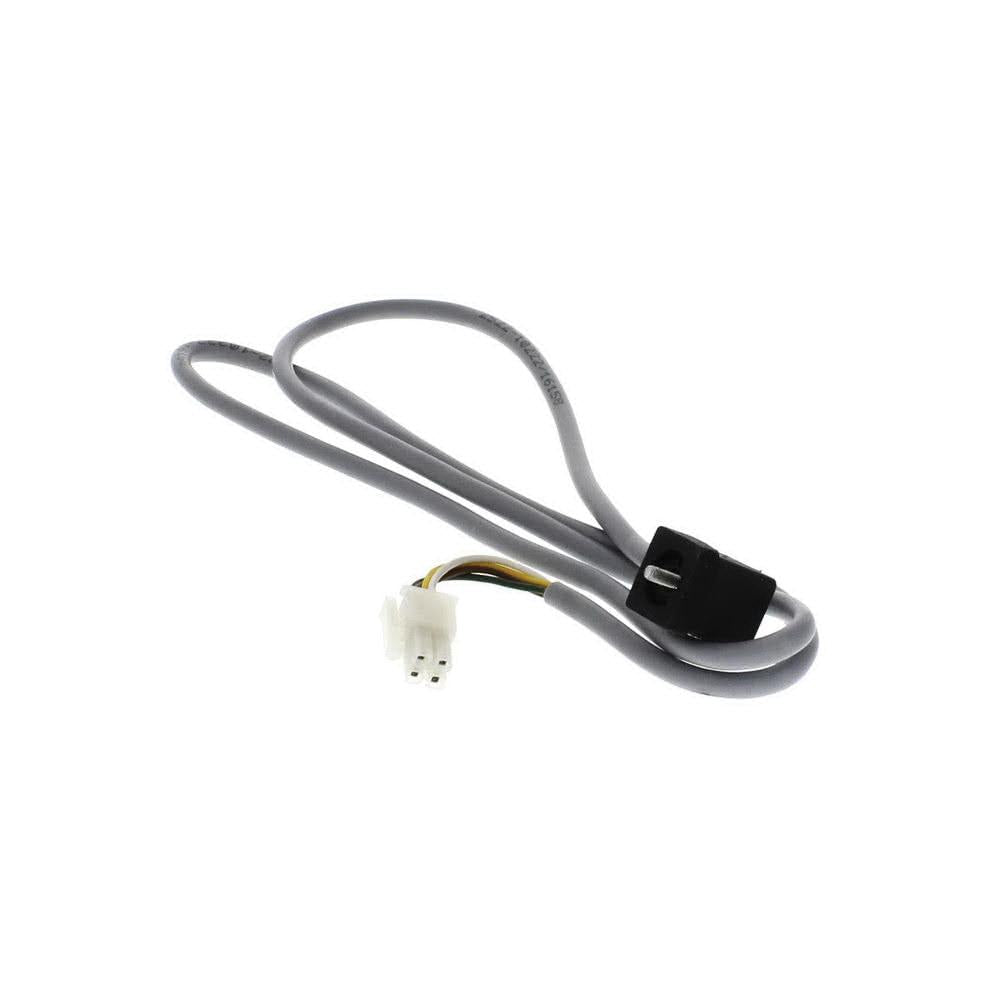

The LARKIN 22592101 is a OEM-replacement wire harness designed for use in HVAC systems. It routes and protects electrical connections between components, maintaining signal and power integrity under the thermal cycling and vibration common in heating and cooling equipment. The harness measures 7.6 inches in length and weighs 0.1 pounds, making it a compact, direct-fit component. Licensed HVAC technicians handling electrical service on HVAC equipment will find this harness suitable for restoring original wiring configurations damaged by heat, abrasion, or corrosion.

This wire harness is intended for HVAC system applications where the original wiring assembly has failed or been damaged. It is suited for installation in residential or light commercial HVAC units that require a factory-specification harness to maintain proper electrical connectivity between controls, sensors, or drive components. No specific compatible model numbers were provided in the product data; verify fitment against the OEM part number before installation.

Key Features

• OEM-replacement design maintains factory wiring configuration
• Built to withstand temperature fluctuations and vibration inside HVAC equipment
• Compact form factor at 7.6 inches length and 2.15 inches width
• Lightweight at 0.1 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement wire harness for HVAC systems. No specific compatible model numbers were included in the available product data. Confirm fitment by matching part number 22592101 to the original equipment documentation before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing or installing any wiring harness. Inspect connector housings and terminals for corrosion or damage before completing the installation. Follow applicable NEC requirements for low-voltage and line-voltage wiring in HVAC equipment.

Technical Specifications

• Length: 7.6 inches
• Width: 2.15 inches
• Height: 1.1 inches
• Weight: 0.1 pounds

Standard Information

• Brand: LARKIN
• Manufacturer Part Number: 22592101
