Lapp 10420000 Epic H-A 3 Ss

Product Description

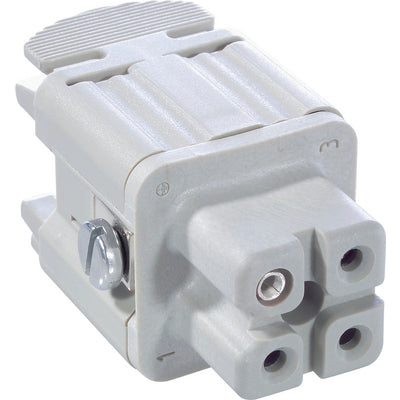

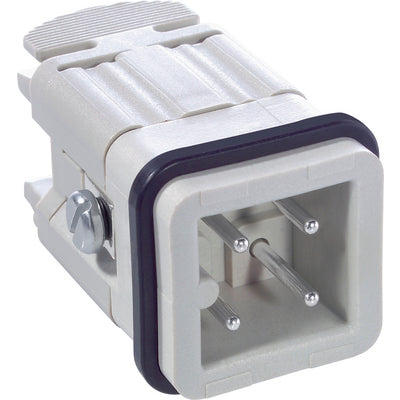

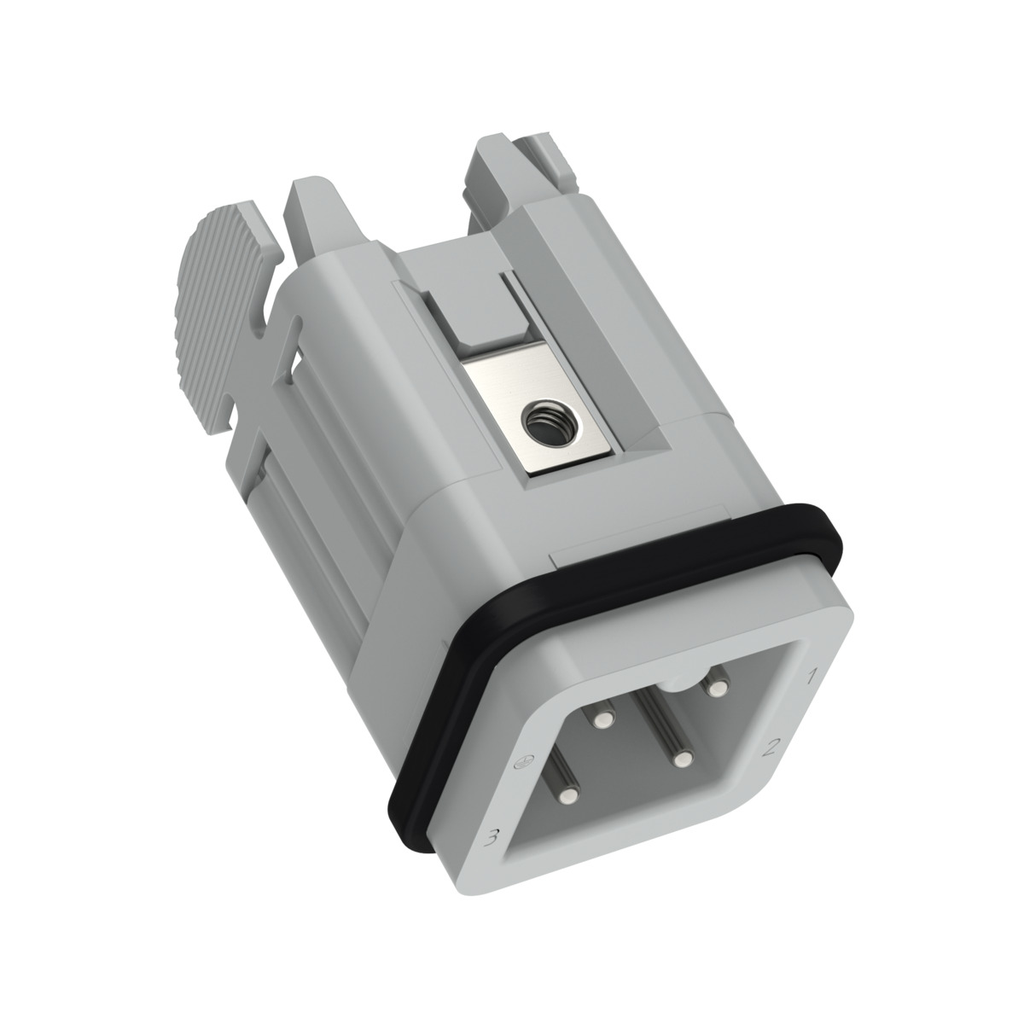

The LAPP 10420000 Epic H-A 3 SS insert features screw termination for up to 2.5 mm² wire cross section. This robust insert is suitable for power supply connectors and can be used in machine manufacturing or control systems. This small power connector is designed for single- or three-phase current and easy assembly due to straight conductor entry.

• Easy to service screw connection
• Easy cable connection with strait cable entry in the contacts
• Small power connector for single- or three-phase current

Product Highlights

The H-A inserts with screw termination are ideal for power supply connectors, machine manufacturing, or control systems. Easy to assemble due to straight conductor entry.

Product Information

Standard Information

• Brand: LAPP
• Manufacturer Part Number: 10420000
• Country of Origin: Germany

Technical Specifications

• Article number: 10420000
• Article description: EPIC® H-A 3 SS
• Contact type: male
• Number of operating contacts: 1 - 3
• Rated voltage (V) IEC: 400 V
• Rated voltage (V) UL: 600 V
• Rated voltage (V) CSA: 600 V
• Rated impulse voltage: 4 kV
• Rated current (A) IEC: 23 A
• Rated current (A) UL: 10 A
• Rated current (A) CSA: 10 A
• Pollution degree: 3
• Flammability: UL94 V-0
• Contact resistance: 1.5 - 4 mohm
• Contacts: Copper alloy, hard silver-plated
• Number of contacts: 3 + PE
• Termination methods: Screw termination: 0.5 - 2.5 mm² (2.5 mm² with conductor end sleeves depending on the crimping profile)
• Stripping length (mm): 6
• Cycle of mechanical operation: 100
• Temperature range: -40°C to +100°C, short-term up to +125°C
• MPN: 10420000
• Manufacturer: LAPP
• Brand: Lapp
