LAPP 101590NP-HA HA 64 Hood Size 1 1/4

Product Description

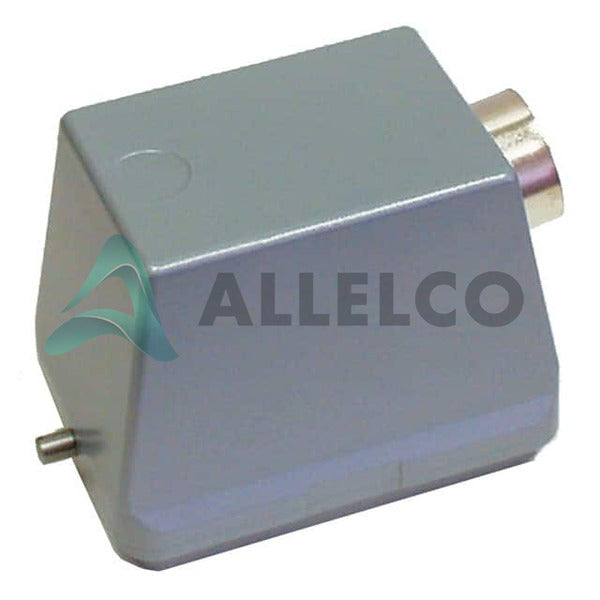

The LAPP 101590NP-HA is a hood for connector housings, part of the EPIC HA series. This hood is made from a powder-coated gray aluminum alloy and provides reliable protection. It has an IP65 rating, ensuring resistance to dust and water. Operating temperatures range from minus forty degrees Celsius to one hundred twenty-five degrees Celsius. With dimensions of five point one one eight inches in length, three point five four three inches in width, and four point one three four inches in height, it is designed for various applications. The hood features a secure locking clip at the base for attachment and is classified as size HA64.

• Constructed with a powder-coated aluminum alloy housing for durability.
• IP65-rated protection ensuring dust-tight and water-resistant capabilities.
• Operational temperature range of minus forty degrees Celsius to one hundred twenty-five degrees Celsius.

Product Highlights

This hood protects connectors from environmental factors and is suitable for demanding applications.

Product Information

Standard Information

• Brand: LAPP
• Thread Size: NPT-5/4

Technical Specifications

• Style: Side Entry
• Dimensions: Five point one one eight inches long x three point five four three inches wide x four point one three four inches high
• Size: HA64
• Series: EPIC HA
• Package: Bulk
• Operating Temperature: Minus forty degrees Celsius to one hundred twenty-five degrees Celsius
• Lock Location: Locking Clip on Base Bottom
• Ingress Protection: IP65 - Dust Tight, Water Resistant
• Housing Material: Aluminum Alloy
• Housing Finish: Powder Coated
• Connector Type: Hood
• Base Product Number: 101590NP
• Category: Connectors/Connector Housings
