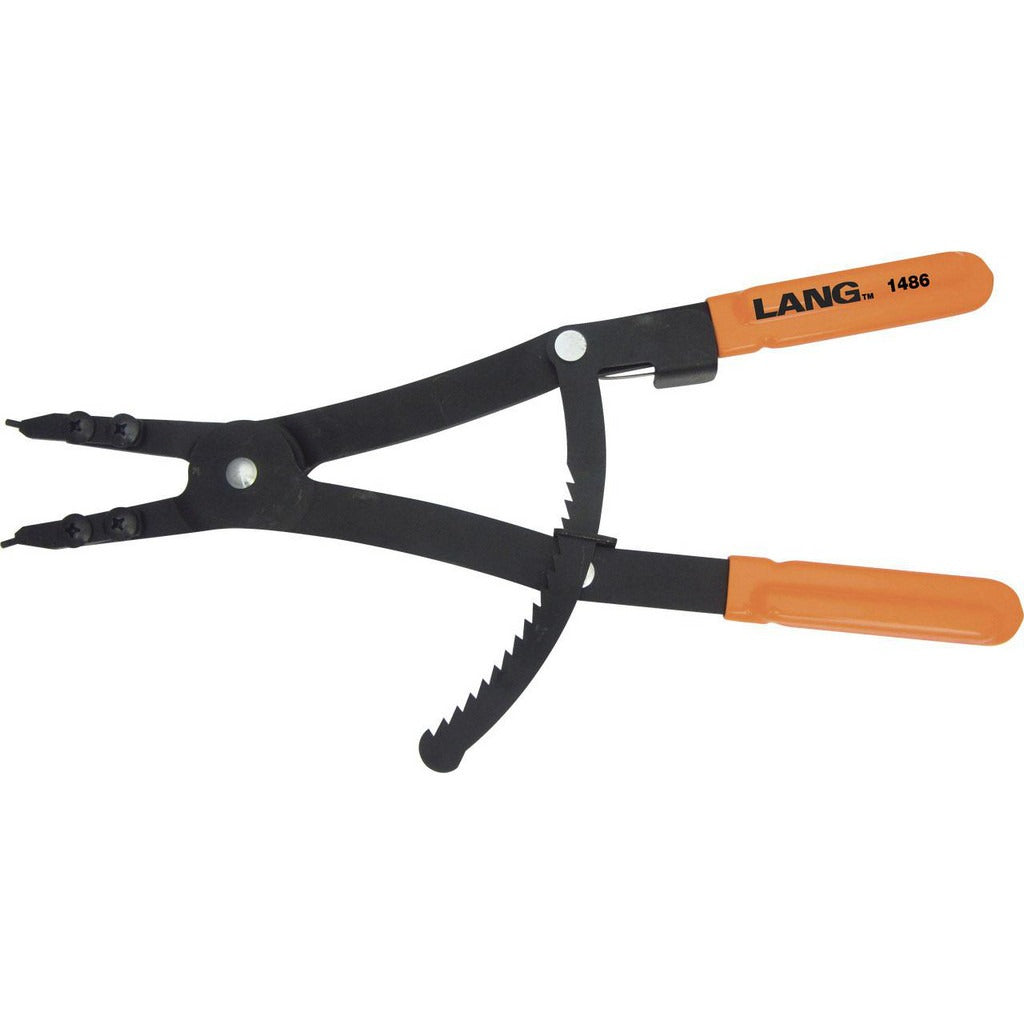

Lang 1486 External Retaining Ring Pliers 3.5-6.5 in

Product Description

The LANG 1486 is a heavy-duty external retaining ring pliers designed to install and remove external retaining rings ranging from 3.5 inches to 6.5 inches in diameter. Built for production floor and field service work, these pliers feature a spring ratchet locking mechanism that holds the tips securely on the ring during installation or removal, reducing slippage and improving control on large-diameter fasteners. With an overall length of 16.0 inches and a tip diameter of 0.12 inches, the 1486 is suited for heavy equipment, large hydraulic cylinders, industrial gearboxes, and similar applications where oversized external rings are common. Mechanics, millwrights, and heavy-equipment technicians are the primary users.

The LANG 1486 is used wherever large external retaining rings secure components on shafts, housings, or bores in industrial, commercial, and heavy-equipment environments. Typical applications include agricultural machinery, construction equipment, industrial motors, and large pump assemblies. The 3.5-inch minimum and 6.5-inch maximum ring diameter range covers a wide span of ring sizes found in these systems, making these pliers a practical single-tool solution for shops that service large rotating assemblies. The straight tip angle at 0 degrees suits flat, direct-access installations where angled entry is not required.

Key Features

• External retaining ring type with a 0-degree straight tip angle for direct access
• Ring diameter range of 3.5 inches to 6.5 inches covers large industrial fastener sizes
• Spring ratchet locking mechanism holds tips in position during installation and removal
• Tip diameter of 0.12 inches for precise engagement with ring tip holes
• Overall length of 16.0 inches provides leverage on large-diameter rings

Compatibility

Designed for use with external retaining rings in the 3.5-inch to 6.5-inch diameter range across industrial, agricultural, and heavy-equipment applications.

Installation Notes

These pliers are used by mechanics and millwrights working on large rotating assemblies and industrial equipment. Always relieve system pressure and de-energize any connected drive or hydraulic circuit before servicing components retained by snap rings. Wear appropriate eye protection, as retaining rings under tension can release suddenly. Confirm tip diameter matches the ring tip holes before applying force to avoid damaging the ring or pliers.
