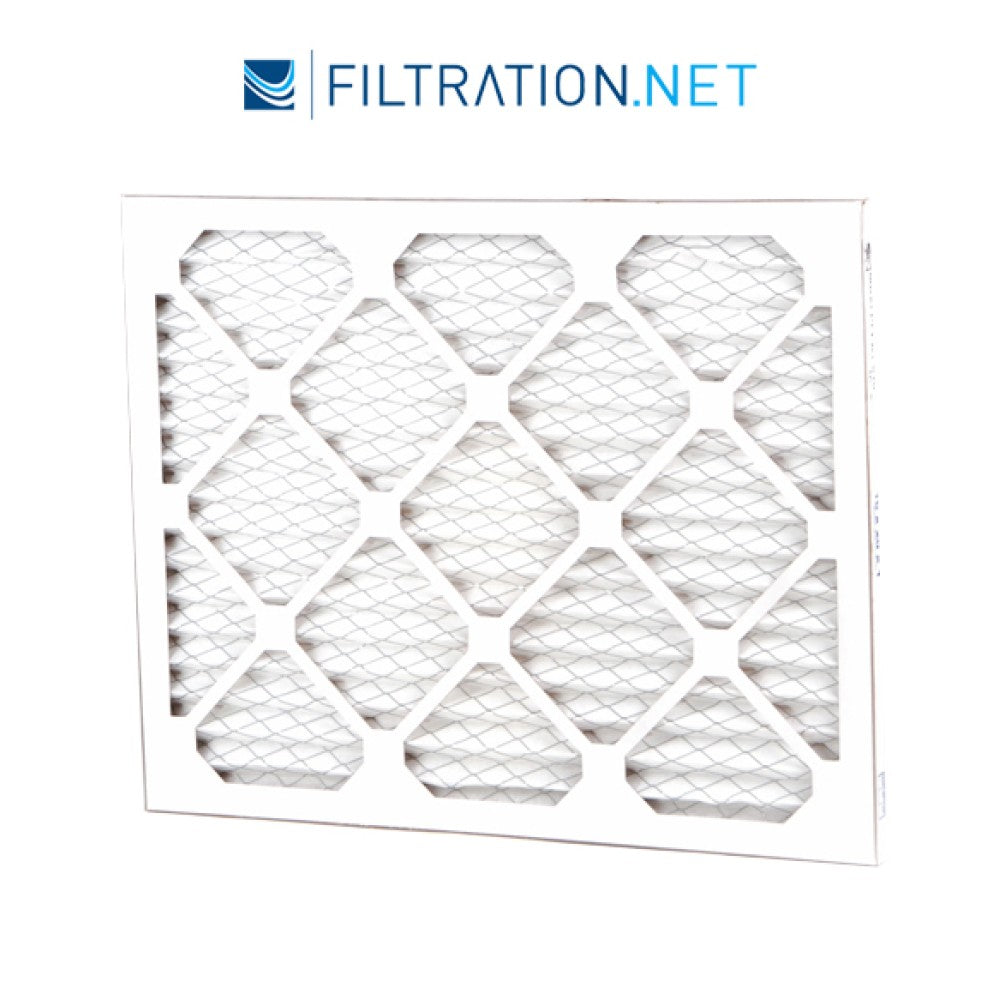

LAB 608_20X20X1 Pleated Air Filter

Product Description

The LAB 608_20X20X1 is a pleated air filter suited for commercial, residential, and industrial applications. This air filter features a synthetic pleated media that ensures complete mechanical filtration. It plays a key role in enhancing indoor air quality while extending the life of the filter itself. The filter is built with a durable die-cut beverage board frame for added strength.

• Synthetic pleated media ensures 100% mechanical filtration.
• Improves indoor air quality and extends filter life.
• Designed for commercial, residential, and industrial settings.

Product Highlights

This medium-efficiency filter meets ASHRAE 52.2, UL, and CUL standards, making it a reliable choice for various environments.

Product Information

Standard Information

• Type: Pleated Air Filter
• Frame Detail: Die-Cut Beverage Board

Technical Specifications

• Overall Width: 19.5 inches
• Overall Height: 19.5 inches
• Overall Depth: 0.75 inches
• Media: Synthetic
• Media Area: 4.11 square foot
• Number of Pleats: 12
• MER Value: 8
• Flow Rate: 830 CFM at 300 PSI, 1390 CFM at 500 PSI
• Resistance: 0.24 inches WG at 300 PSI
• Efficiency: 70 percent
• Application: Commercial, Residential, Industrial
• Applicable Standard: ASHRAE 52.2, UL, CUL
• Nominal Size: 20 inches wide x 1 inch deep x 20 inches high
