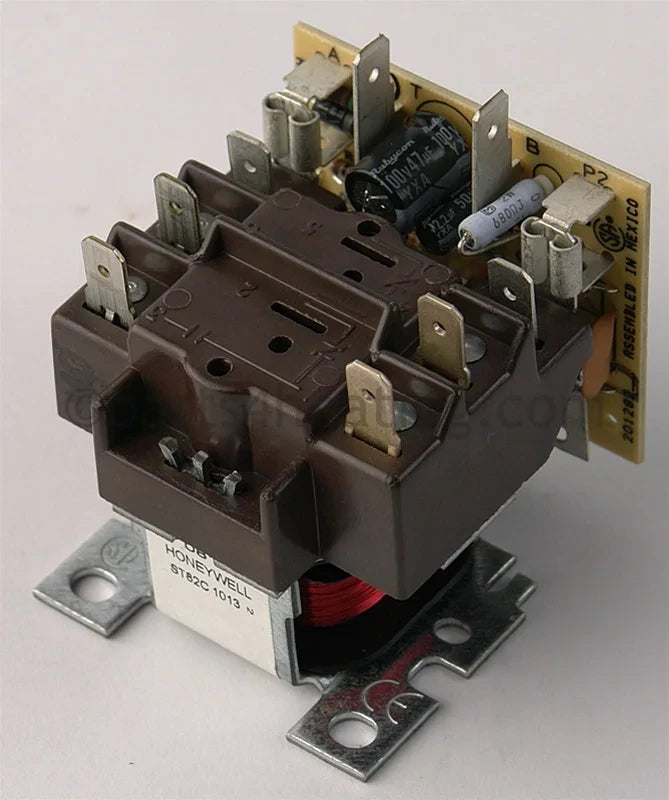

Laars LAARS-E2078500 Time Delay Relay Dpst TL80-199

Product Description

The Laars LAARS-E2078500 is a double-pole single-throw (DPST) time delay relay designed for use in Laars heating systems. This relay controls the timed sequencing of electrical circuits within the unit, allowing specific components to energize or de-energize after a set delay period. It is an OEM-style replacement part intended for installation by licensed HVAC technicians or qualified heating system service professionals. The LAARS-E2078500 supersedes the previous part number E2075700, making it the current factory-approved replacement for that earlier component.

This time delay relay is used in Laars TL80-199 heating units. It fits into the unit's control circuit and supports proper sequencing during heating cycles. Installation is appropriate for residential or light commercial applications where Laars heating systems are deployed. Service technicians replacing a failed relay or performing a control system upgrade should confirm the superseded part number E2075700 in the existing unit before installing this replacement.

Key Features

• DPST contact configuration for double-pole single-throw switching
• Built-in time delay function for sequenced circuit control
• Supersedes previous Laars part number E2075700
• OEM-style replacement for Laars TL80-199 heating systems

Compatibility

Designed as an OEM-style replacement relay for Laars TL80-199 heating systems. Supersedes previous Laars part number E2075700.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage control circuits. Always disconnect power to the unit at the disconnect switch or breaker before removing or installing any relay or control component. Verify that the replacement part number matches the application before energizing the system. Follow all applicable local codes and the manufacturer service documentation when servicing Laars heating equipment.

Technical Specifications

• Contact Configuration: DPST (Double-Pole Single-Throw)
• Type: Time Delay Relay
• Supersedes: E2075700

Standard Information

• Brand: Laars
• Manufacturer Part Number: LAARS-E2078500
