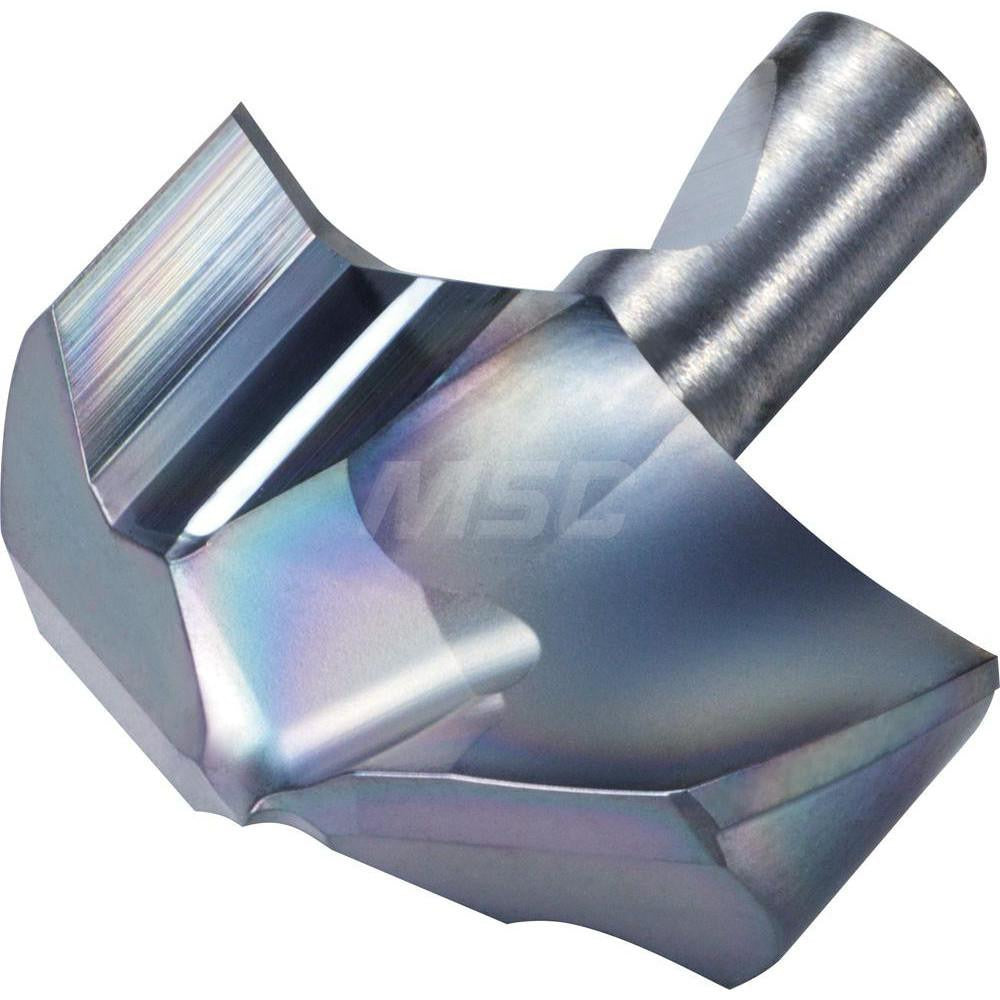

Kyocera TLC06066 Replaceable Drill Tip 0.366 in PR1535

Product Description

The KYOCERA TLC06066 is a replaceable carbide drill tip designed for use with the DRA series indexable drill system. It features a 0.3660-inch (9.00 mm) cutting diameter, a 140-degree drill point angle, and a solid carbide construction with MEGACOAT NANO PVD coating. Manufactured to Grade PR1535 with an M-GM insert geometry, this tip is built for productive drilling in steel and stainless steel applications. The tip seats into an Insert Seat Size 90 holder using a screw-clamping method, making tip replacement fast and repeatable without removing the drill body from the machine.

This drill tip is intended for drilling operations in ferrous workpiece materials, primarily steel and stainless steel, with secondary capability in cast iron. It fits into the DRA series drill body system and is suited for CNC machining environments in both production and job-shop settings. The regular spiral, two-flute helical design promotes chip evacuation during through-material drilling. Licensed machinists and CNC operators in metal fabrication, precision machining, and industrial manufacturing are the typical end users. Coolant-through is not supported by this tip style.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous materials
• MEGACOAT NANO PVD coating applied via physical vapor deposition for extended tool life
• Grade PR1535 with M-GM geometry optimized for steel and stainless steel (P10-P30, M15-M35)
• 140-degree standard drill point angle reduces entry burring on common workpiece materials
• Screw-clamp insert holding method allows rapid tip indexing without removing the drill body
• Two-flute regular spiral helical design supports consistent chip flow during drilling

Compatibility

Designed as a replaceable drill tip for the KYOCERA DRA series indexable drill system, requiring a compatible Insert Seat Size 90 drill body. ISO number DA0930M-GM. Compatible primary workpiece materials are steel and stainless steel (material codes P and M); secondary workpiece material is cast iron (material code K).

Installation Notes

Installation and indexing of replaceable carbide drill tips should be performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before seating or removing the tip. Verify the insert seat is clean and free of chips or debris before securing the tip with the clamping screw. Refer to the drill body manufacturer torque guidelines and toolholder documentation for proper assembly procedure.
