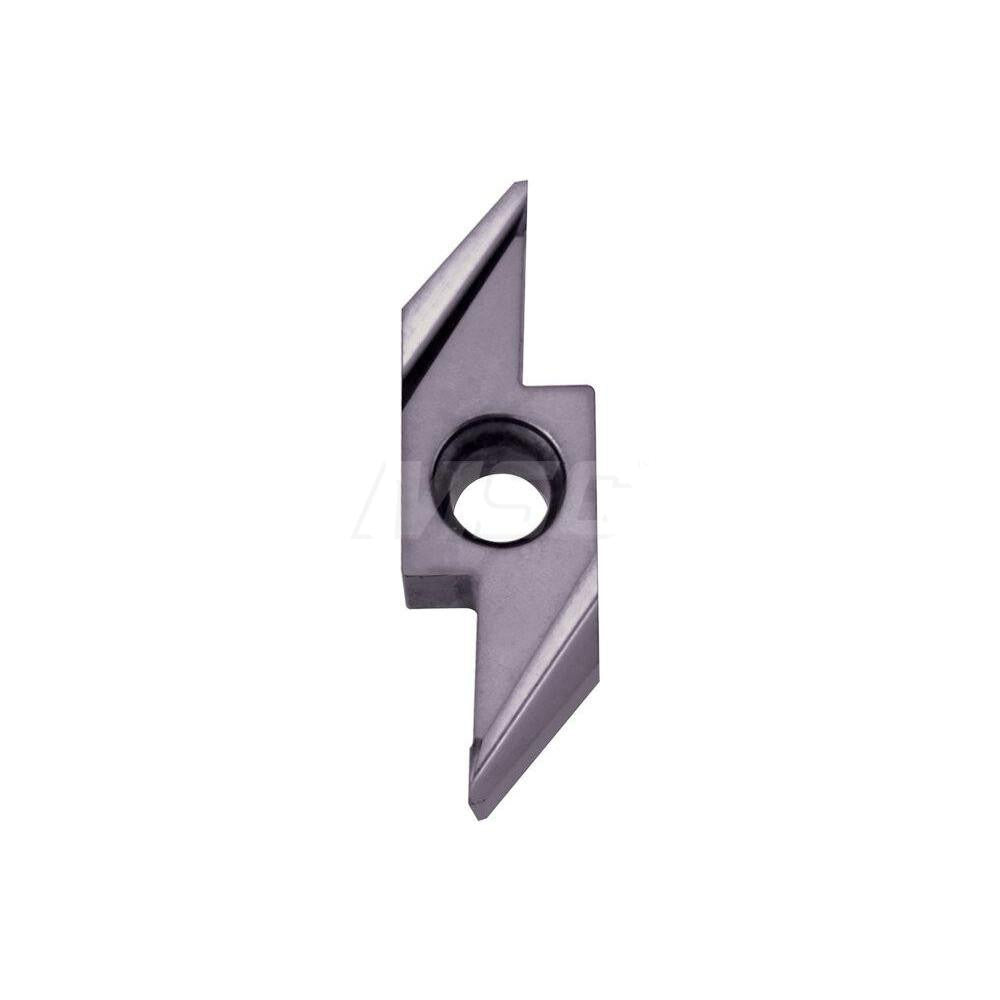

Kyocera TKT00995 Turning Insert ABW23R5005 PR930

Product Description

The KYOCERA TKT00995 is a solid carbide turning insert designed for precision metal cutting in CNC and manual turning applications. Manufactured to ISO code ABW23R5005 and carrying the PR930 grade designation, this insert features a physical vapor deposition (PVD) TiCN coating for improved wear resistance and edge integrity. The insert is right-hand oriented, measures 15.4 mm (0.9213 inches) in length, and presents a 0.05 mm (0.0020 inch) corner radius with a honed cutting edge style. Two cutting edges are available per insert. It is sized at 5/32 inch thickness and belongs to the APBT series. Intended for installation by machining professionals and CNC tooling technicians.

This insert is suited for turning operations on steel and stainless steel workpieces, aligning with ISO material codes P and M. Material grades P01, P10, P20, M10, and M20 fall within the applicable range. The positive rake geometry and 45-degree lead angle support efficient chip formation during external turning passes. The chip breaker style is common, making this insert a practical choice for general-purpose turning where consistent chip control and surface finish are required across moderate to light depths of cut up to 0.1650 inches. Back turning is listed as a recognized multi-use application context for this insert style.

Key Features

• PR930 grade solid carbide with PVD TiCN coating for extended tool life on steel and stainless steel
• ISO code ABW23R5005 with 75-degree included angle and 15-degree relief angle
• Honed cutting edge with positive rake for reduced cutting forces
• Right-hand orientation with screw-type insert holding method
• 0.05 mm corner radius supports moderate surface finish requirements
• Two cutting edges per insert; maximum depth of cut 0.1650 inches

Compatibility

Designed for use in toolholders that accept ABW-style inserts within the APBT series, conforming to ANSI and ISO standards. Suitable for turning steel (P-grade) and stainless steel (M-grade) workpieces as specified by the manufacturer.

Installation Notes

Installation is performed by qualified CNC operators or tooling technicians. Secure the insert using the appropriate screw-clamp torque per the toolholder manufacturer instructions and confirm correct seating before initiating a cut. Power down and lock out the machine spindle before changing inserts. Inspect the insert seat and clamping screw for wear or debris prior to each insert change to maintain accurate positioning and safe operation.
