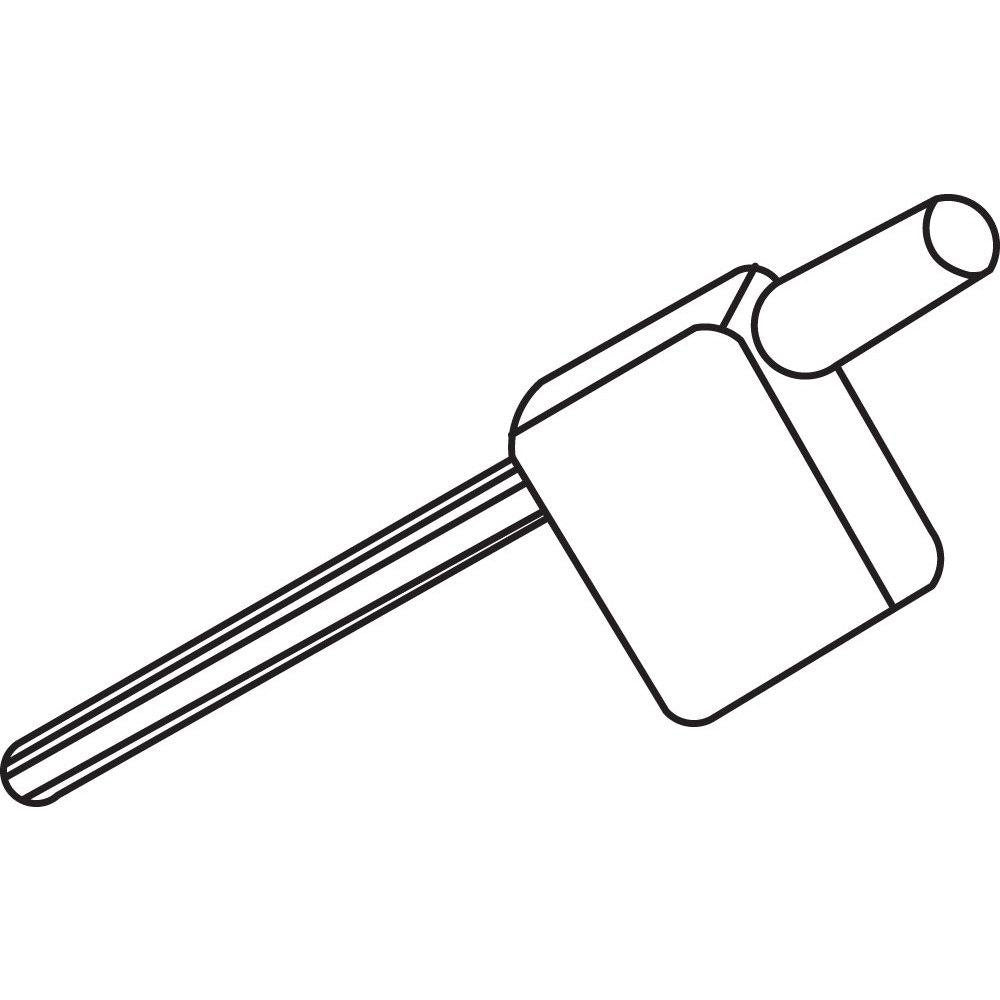

Kyocera OTM86511 Insert Wrench Cd Dr Toolholder

Product Description

The KYOCERA OTM86511 is a T9 Torx insert wrench designed for seating and removing indexable inserts on compatible drilling toolholders. Weighing just 0.05 pounds, this compact hand tool provides the precise drive engagement needed to properly torque insert screws without risking damage to the screw head or insert pocket. It is used by machinists and tooling technicians performing insert changes on indexable Coremaster coredrills, Holeshot drills, and Stinger drills. Correct insert retention is critical to cutting performance and tool life, making a properly sized wrench an essential part of any insert-change procedure.

The OTM86511 is intended for shop floor use in metal cutting environments where indexable drilling toolholders are in regular rotation. It is a direct-fit accessory for CD and DR toolholder style platforms and suits facilities running high-mix drilling operations that require frequent insert indexing. The wrench is packaged individually and is well-suited for inclusion in a tooling station or service kit alongside compatible insert screws and spare inserts.

Key Features

• T9 Torx drive for secure engagement with insert screws on compatible toolholders
• Compatible with CD and DR toolholder style platforms
• Designed for use with Coremaster coredrills, Holeshot drills, and Stinger drills
• Lightweight at 0.05 pounds for easy handling during insert changes
• Single-piece packaging suitable for tooling kit or bench station use

Compatibility

Designed for use with KYOCERA indexable Coremaster coredrills, Holeshot drills, and Stinger drills. Compatible with CD and DR toolholder style platforms that use insert screw retention.

Installation Notes

This wrench is used by machinists or tooling technicians during scheduled insert changes on indexable drilling tools. Before changing inserts, ensure the machine is powered down, the spindle is locked, and all cutting edges are handled with appropriate protection. Use the T9 Torx drive to loosen or seat the insert screw as specified by the toolholder manufacturer's insert-seating procedure. Do not substitute a wrench of an incorrect drive size, as doing so can strip the insert screw and damage the toolholder pocket.
