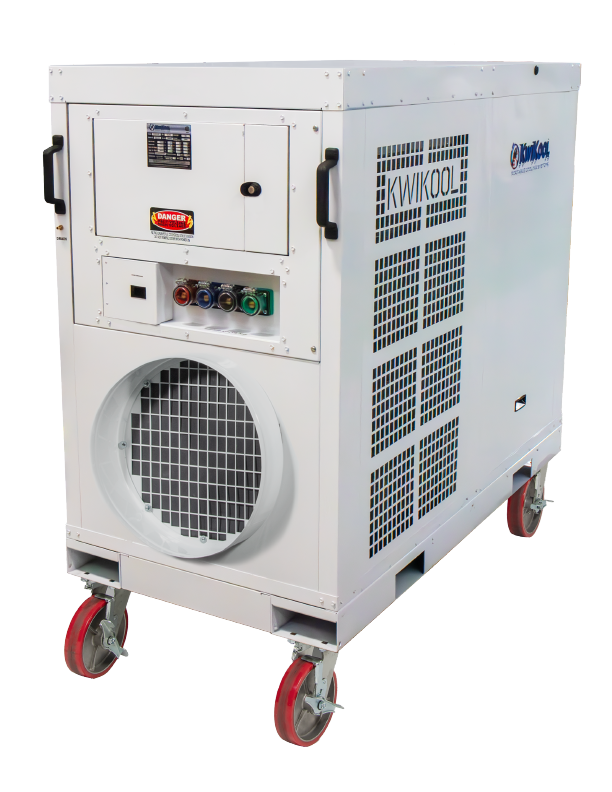

Kwikool KPO12-23-3 KPO12-23 135,000 BTU 12-Ton

Product Description

The Kwikool KPO12-23-3 (nominal 12-ton or 135,000 BTU) is a versatile unit in the KPO Series of indoor/outdoor portables. Its compact footprint is ideal for applications requiring cold air in hard-to-reach areas. It can be placed outdoors with ducting or inside a building ducted into an interior space. The KPO Series offers advanced airflow capabilities, up to 75 feet cold air return and supply and up to 100 feet of hot air exhaust ducting.

• Features a 16 gauge insulated G90 galvanized and epoxy powder-coated cabinet mounted to a 12 gauge skid.
• Equipped with high static hyperdrive evaporator fans capable of running 100 feet of duct.
• Includes an internal high lift condensate pump for total condensate flexibility.

Product Highlights

This portable air conditioner is designed for areas that are difficult to cool, offering an effective and affordable cooling solution.

Product Information

Standard Information

• Brand: KWIKOOL
• Manufacturer Part Number: KPO12-23-3
• Country of Origin: USA

Technical Specifications

• COOLING CAPACITY: 135,000 (12-Ton)
• Operating Temperatures: 30-110 F 50%RH
• HEATING - OPTIONAL: Heat Strips/BTU 24kW/83,300
• Compressor Type: Scroll
• Refrigerant: R 454 B
• FAN DATA: Evaporator Fan Type (Centrifugal) Direct Drive
• Air Flow (CFM): 8500
• Supply and Return Air Device: 4 - 12" flanges (2 for Supply / 2 for Return)
• Maximum Duct length: 75' each for supply and return.
• Condenser: Fan Type (Centrifugal) Belt Drive
• Condenser Exhaust flange: 20"
• Condenser Duct Max. Length: 100'
• Condenser fan speed control: Variable Frequency Drive
• ELECTRICAL DATA: Power Supply (Volts) 230 Three Phase
• Current Consumption (Amps): 59
• Power Consumption (kW): 21.13
• Maximum Circuit Breaker (Amps): 100
• Recommended Breaker Size: 80
• Minimum Circuit Ampacity: 68.82
• Min./Max. Voltage: 195-250
• Power connection: Color Coded Cam Locks
• Power Quality Control: Internal Phase and Power Monitor
• CONSTRUCTION: Skid 12 Gauge G90 Galvanized Steel with Epoxy Powdercoat Finish
• Cabinet: 16 Gauge G90 Galvanized Steel with Epoxy Powdercoat
• Casters: 8" Heavy Duty Swivel and Locking
• SAFETY DEVICE DATA: Compressor Overload Internal
• Fan Motor Overload: Automatic Internal
• Evaporator Freeze Protection: Hot Gas Bypass
• High Pressure Switch: Manual
• Low Pressure Switch: Automatic
• Compressor Short Cycle: Yes
• Automatic Restart: Yes
• Thermostat Type: Digital
• Condensate Pump Overflow: Yes
• Internal Condensate Pump (high lift): Yes
• Installation Type: Portable
• Refrigerant Type: R454B
• Energy Star: No
• Fan Speeds: 1
• Includes Heat Mode: No
• Cooling BTUs: 135000
• Cooling Amps: 59
• Bucket Capacity: NA
• High Level Alarm: Yes
• Auto Shut Off: Yes
• Control Type: Electronic Touch Pad
• Drain Pump: Yes
• Ambient Temperature - Cooling: 30° - 110°
• Voltage: 230V
• Phase: 3
• Max. Circuit Breaker Size (Amps): 100
• Rec. Circuit Breaker Size (Amps): 80
• Certifications: ETL
