Product Description

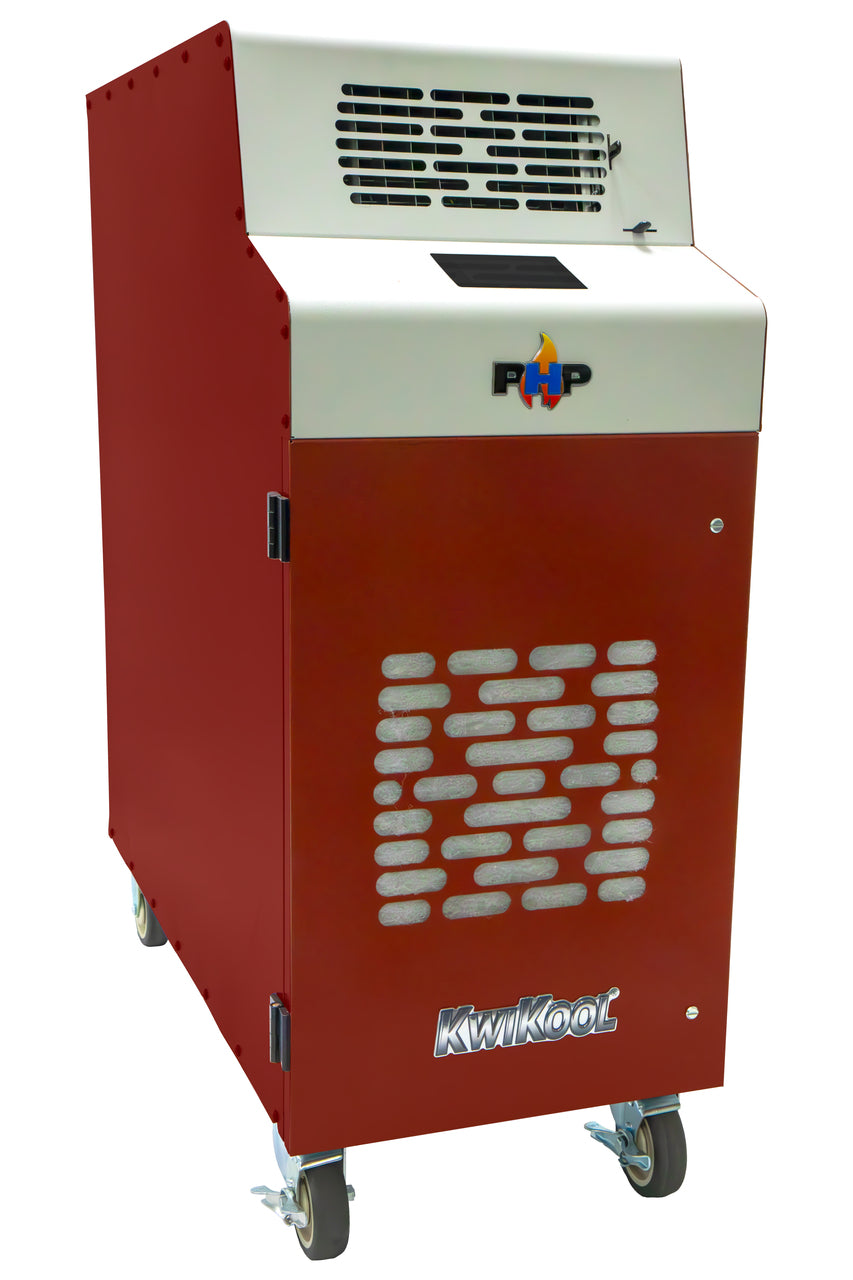

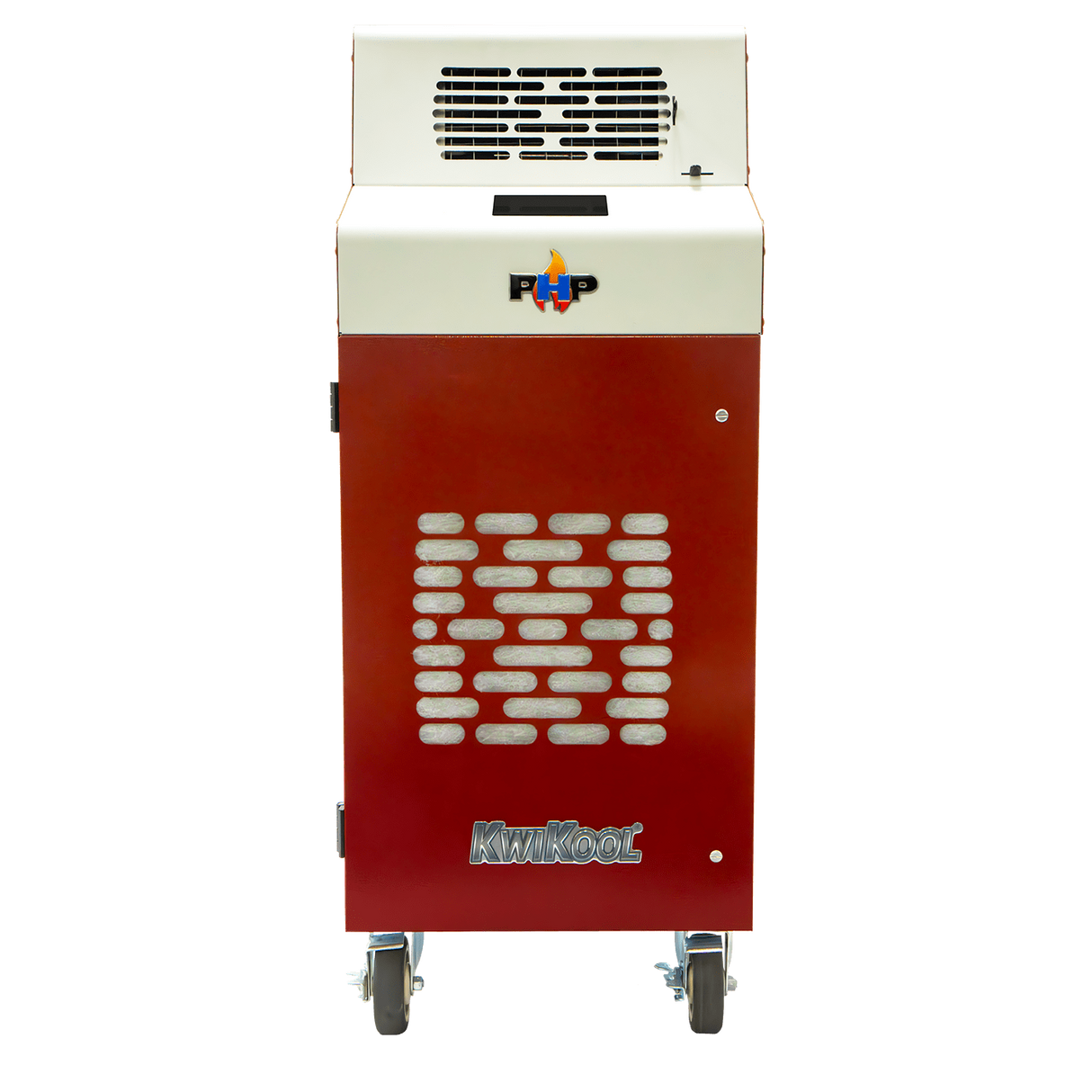

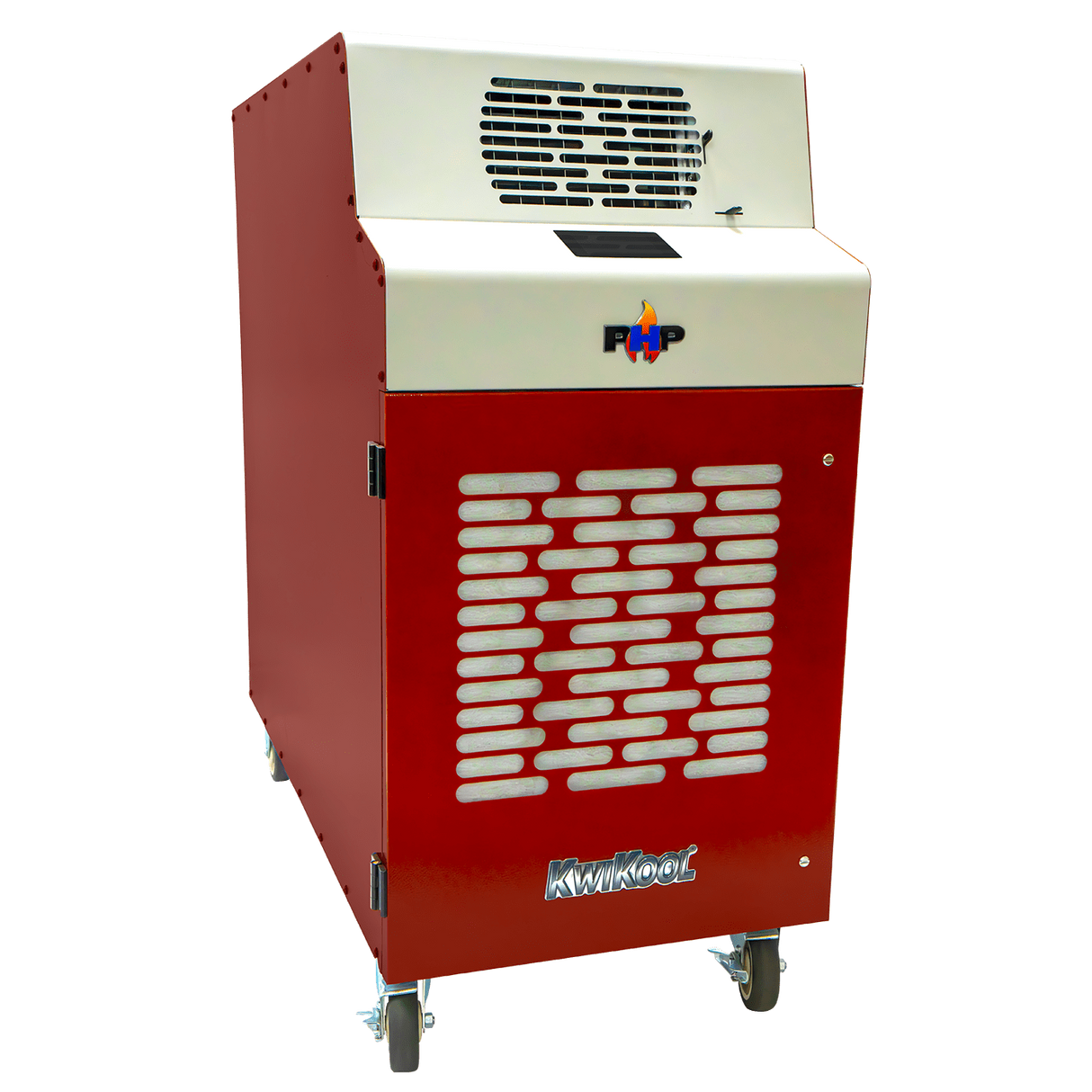

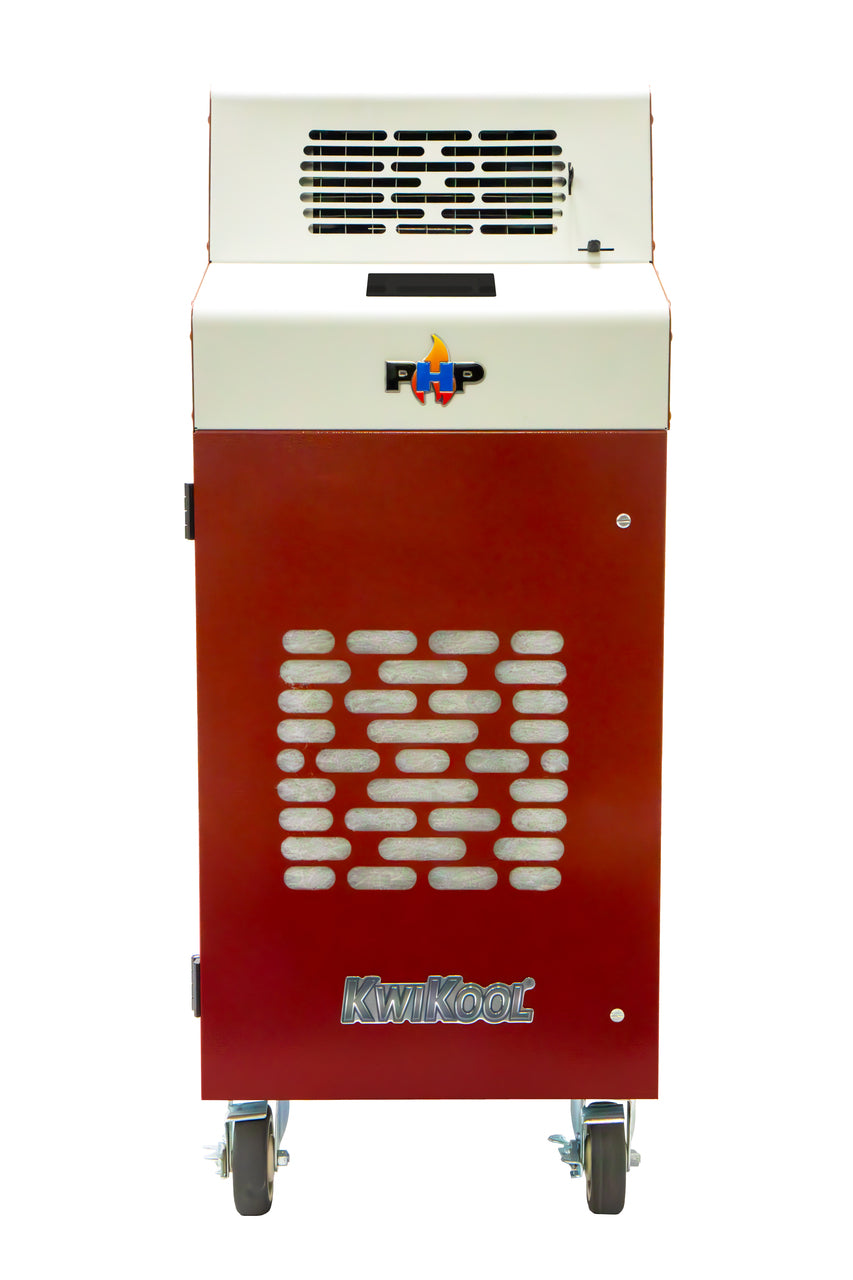

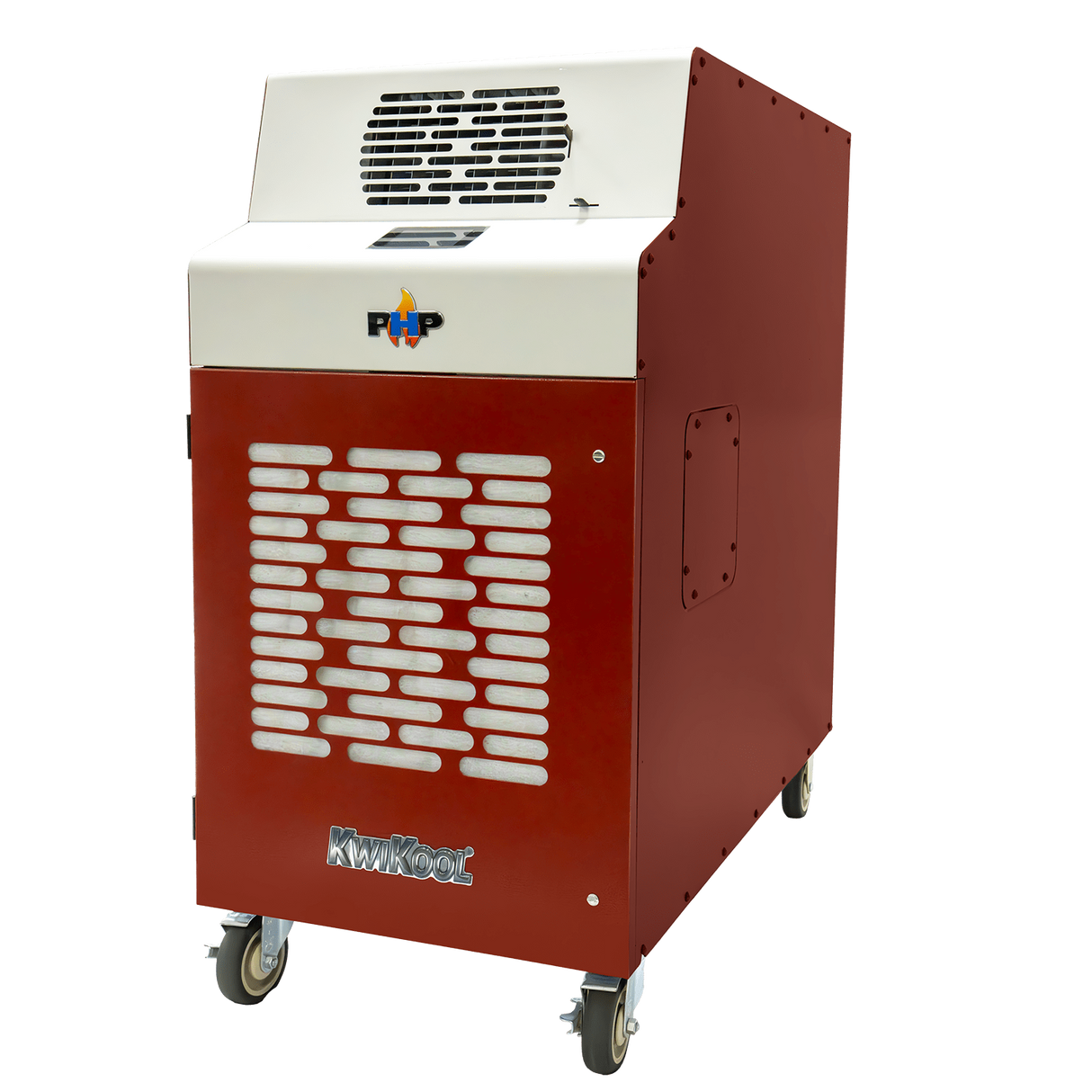

The Kwikool KPHP1811-3 is a portable heat pump with 13,850 BTU cooling and 17,010 BTU heating capacities. Designed for comfort in cooling and heating applications, it features plug-and-play technology. It operates down to 45 degrees F and runs on a standard 115-volt/15-amp circuit with auto restart after power failure. Includes an internal high-lift condensate pump and a 5-gallon exterior condensate tank.
- Provides 13,850 BTU/H cooling and 17,010 BTU/H heating
- Runs on 115V 15 amp circuit
- Features automatic restart after power failure
Product Highlights
The Kwikool KPHP1811-3 portable heat pump offers both heating and cooling, operates on standard voltage, and includes safety features like auto restart and condensate overflow protection.
Product Information
Standard Information
-
Brand: KWIKOOL
-
Manufacturer Part Number: KPHP1811-3
-
Country of Origin: USA
Technical Specifications
-
HEATING BTU/hr @ 55F at 60% RH: 17,010 (Nominal 1.5-Ton)
-
COOLING BTU/hr @ 95F at 60% RH: 13,850 (Nominal 1.1-Ton)
-
Compressor Type: Hermetic Rotary
-
Operating Cooling Temperatures: 40-80 F 50%RH
-
Operating Heating Temperatures: 60-110 F 50% RH
-
Refrigerant: R 454 B
-
Fan Type (Centrifugal): Direct Drive
-
Air Flow (CFM): 700
-
Supply Air Device: Adjustable Vent
-
Supply Air Chute Kit (optional): 2 - 5" Dia. x 16" Length
-
I/O Integral Condenser Balanced Air Flow: Condenser
-
Condenser Duct Specs (optional): 2 - 12" Dia. x 8' Length
-
Condenser Duct Max. Length: 25'
-
Power Supply (Volts): 115/Single Phase
-
Current Consumption (Amps): 14.4 Heating/ 14.1 Cooling
-
Power Consumption (kW): 1.48
-
Maximum Circuit Breaker (Amps): 20
-
Recommended Breaker Size: 15
-
Minimum Circuit Ampacity (Amps): 17.65
-
Min./Max. Voltage: 105-125
-
Power Cord Gauge/Length: 14/6'
-
Plug Configuration: NEMA 5-15
-
Compressor Overload: External
-
Fan Motor Overload: Automatic Internal
-
Evaporator Freeze Protection: Hot Gas Bypass
-
High Pressure Switch: Manual
-
Low Pressure Switch: Automatic
-
Compressor Short Cycle: Yes
-
Automatic Restart: Yes
-
Thermostat Type: Microprocessor/Digital
-
Condensate Pump Overflow: Yes
-
Condensate Tank Overflow: Yes
-
Installation Type: Portable
-
Energy Star: No
-
Fan Speeds: 2 - Auto / On
-
Includes Heat Mode: Yes
-
Heat Type: Heat Pump
-
Cooling BTUs: 13850
-
Cooling Amps: 14.1
-
Heat Pump BTUs: 17010
-
Heating Amps: 14.3
-
Bucket Capacity: 5 gal.
-
High Level Alarm: Yes
-
Auto Shut Off: Yes
-
Control Type: Electronic Touch Pad
-
Drain Pump: Yes
-
Ambient Temperature - Cooling: 60° - 110°
-
Ambient Temperature - Heating: 40° - 80°
-
Voltage: 110-120V
-
Plug Face (NEMA): 5-15P
-
Cord Length: 6 ft.
-
Certifications: ETL
-
Maximum Amperage (Amps): 14.7
-
Maximum Wattage (W): 1350
-
Vent Hose Diameter (in.): 12
-
Vent Hose Length (ft.): 25
-
Condensate Pump Safety Cut-oȟf: Yes
