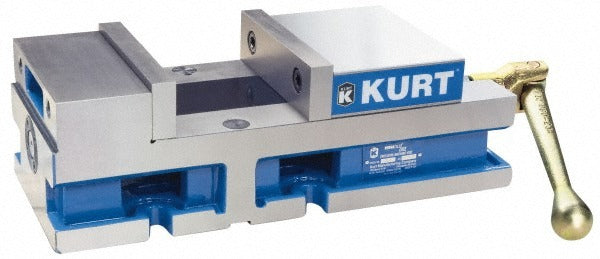

Kurt 3620V Machine Vise 6 in Jaw Horizontal Stationary

Product Description

The KURT 3620V is a manual horizontal machine vise designed for precision workholding on milling machines, machining centers, and similar equipment. It features a 6-inch jaw width and a 4-inch jaw opening, making it well suited for a wide range of part sizes in production and toolroom environments. With a maximum clamping force of 6,356 pounds and a stationary base, the 3620V delivers rigid, repeatable clamping that minimizes workpiece movement during cutting operations. Licensed machinists and CNC setup technicians are the primary installers and users of this vise.

The 3620V is used in horizontal orientation on machine tool tables in both job shop and production machining environments. Its stationary base configuration is standard for single-station milling setups where the vise remains fixed to the table. The single-station design supports straightforward part loading and is common in both manual and CNC vertical milling applications. Fixture key compatibility allows the vise to be located precisely on standard T-slot tables using keys, supporting quick and accurate repositioning.

Key Features

• 6-inch jaw width and 4-inch jaw opening for versatile part clamping
• Maximum clamping force of 6,356 pounds for rigid workholding
• Fixture key compatible for repeatable positioning on T-slot machine tables
• Matched stationary jaw for consistent jaw alignment and parallelism
• Versatile Lock mechanism for secure, stable clamping
• Precision-rated construction for accurate, repeatable setups

Compatibility

Designed as an OEM-style fit for horizontal, single-station milling vise applications on standard T-slot machine tool tables where a 6-inch jaw width stationary vise is specified.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the machine tool before mounting or removing the vise. Secure the vise to the machine table using appropriate T-nuts and bolts torqued to the machine tool manufacturer's specification. Fixture keys should be seated fully in the table T-slot to ensure proper alignment before final tightening.
