Kunkle Valve 6010HGM01-AM SET150

Product Description

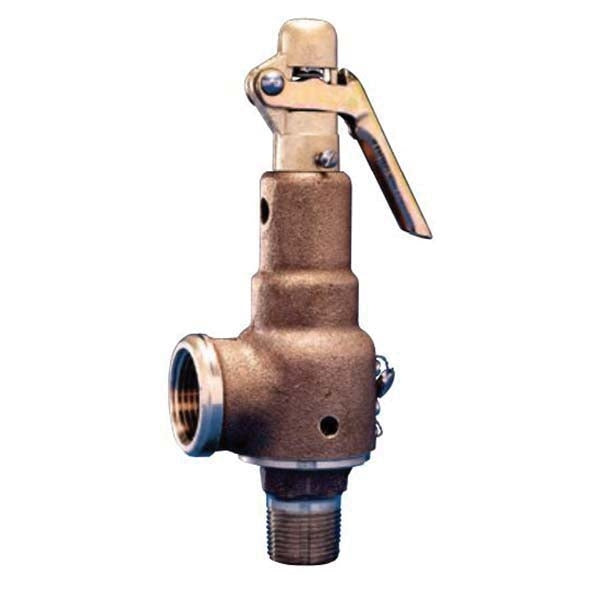

The Kunkle Valve 6010HGM01-AMSET150 is a safety relief valve designed for steam applications. This valve is made from durable bronze and features a connection size of one and one-half by two inches with NPT connections. It is rated for a pressure of one hundred fifty psi and offers reliable protection for steam boilers and pressure vessels.

• O-ring seats ensure a leak-free performance
• Heavy-duty construction with a grooved piston disc
• Ball bearing pivot enhances alignment

Product Highlights

This valve is suitable for steam boilers, air compressors, and pressure reducing stations. The design includes dual control rings for precise adjustments and a stainless steel spring to maintain reliability. Each unit undergoes thorough testing for pressure settings and leakage.

Product Information

Standard Information

• Brand: Kunkle Valve
• Manufacturer: Emerson

Technical Specifications

• Model: 6010HG
• Connection Size: 1-1/2 x 2 in
• Connection Type: NPT
• Pressure Rating: 150 psi
• Temperature Rating: -60 to 406 deg F
• Disc Material: Brass
• Material: Bronze
• Flow Co-Efficient: 0.878 Cv
• Operator Type: Plain Lever Handle
• Seal Material: Lead
• Seat Material: Metal
• Series: 6000
