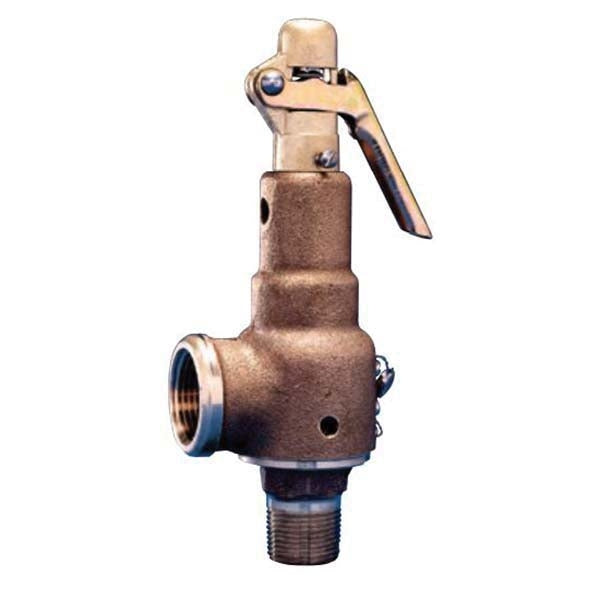

Kunkle Valve 6010HGM01-AM SET100

Product Description

The Kunkle Valve 6010HGM01-AM SET100 is a bronze safety relief valve designed for steam applications. This valve features an NPT connection size of one and a half by two inches and is rated for up to one hundred psi. It is suitable for use in steam boilers, air/gas compressors, and similar systems.

• Leak-free performance with O-ring seats
• Easy installation with a wide hex on the valve nozzle
• Precise adjustments with dual control rings

Product Highlights

This safety relief valve ensures reliable performance and safety in steam systems and is constructed from durable materials.

Product Information

Standard Information

• Brand: Kunkle Valve
• Manufacturer: Emerson

Technical Specifications

• Model: 6010HG
• Connection Size: 1-1/2 x 2 in
• Connection Type: NPT
• Pressure Rating: 100 psi
• Temperature Rating: -60 to 406 deg F
• Material: Bronze
• Disc Material: Brass
• Flow Co-efficient: 0.878 Cv
• Operator Type: Plain Lever Handle
• Seal Material: Lead
• Seat Material: Metal
• Series: 6000
• Applications: For steam boilers and generators, air/gas compressors, pressure vessels and pressure reducing stations
• Standards/Certifications: ASME I, IV, VIII, HV, V, UV, PED certified, CE approved
