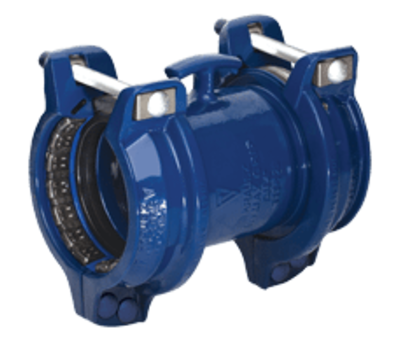

KRAUSZ 890-56-04111-16 Krausz Hymax Grip Coupling Restraint

Product Description

The Krausz Hymax Grip Coupling Restraint, MPN: 890-56-04111-16, is engineered for joining and securing various types of piping materials. This coupling restraint includes a radial gripping system designed to minimize pipe movement. The universal gripping teeth work effectively on both metal and plastic pipes, ensuring versatility in applications. Its stab-fit configuration allows for quick installation and immediate use. The design accommodates dynamic deflections, which may help in preventing future damages. Additionally, it features a fusion-bonded epoxy coating for enhanced corrosion protection.

• Joins and restrains pipes with outside diameters from 4.4 to 5.1 inches.
• Constructed with a durable ductile iron body and includes an EPDM gasket.
• Meets AWWA Standard C219, NSF 61, and NSF 372 compliance standards.

Product Highlights

This coupling restraint is suitable for various piping applications, including cast iron, copper, and PVC pipes.

Product Information

Standard Information

• Item Name: Coupling Restraint
• MPN: 890-56-04111-16

Technical Specifications

• Nominal Size: 4 IN
• Outside Diameter: 4.4 - 5.1 IN
• Number Of Bolts: 2
• Bolt Hole Diameter: 5/8 IN
• Material: Ductile Iron, Stainless Steel
• Finish/Color: Fusion Bonded Epoxy
• Maximum Pressure: 232 PSI
• Temperature Rating: -20 To 125 DEG F
• Industry Standards: AWWA Standard C219, NSF 61, NSF 372 Certified
• Torque Rating: 90 FT-LB
• Application: Cast Iron Pipe, Copper Pipe, Ductile Iron Pipe, PE, PVC, Stainless Steel Pipe, Steel Pipe
• Length: 11-2/5 IN
• Pressure Class: 350#
• Product Type: Restraint Coupling
• Weight: 32 lb
