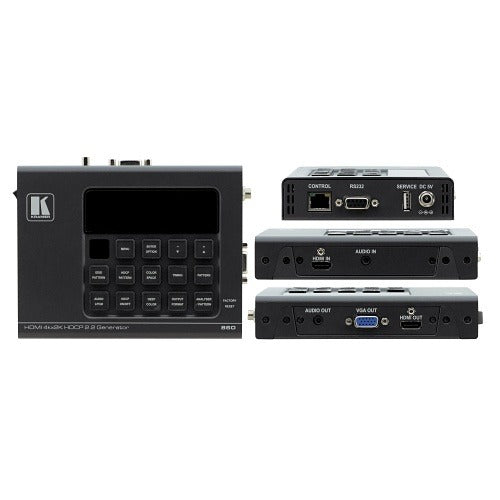

Kramer Electronics 60-860090 4K Uhd Hdmi Pattern Generator

Product Description

The KRAMER ELECTRONICS 60-860090 is a 4K UHD HDMI pattern generator designed for AV signal processing applications. It outputs standardized test patterns over HDMI, allowing technicians to verify display calibration, cable integrity, and signal path performance across high-resolution video systems. The unit supports 4K Ultra HD resolution, making it suitable for commissioning and troubleshooting modern 4K display infrastructure. AV integrators, systems technicians, and low-voltage installers use this tool during installation, maintenance, and diagnostics of commercial and residential AV systems.

The 60-860090 is intended for use in environments where 4K HDMI signal verification is required. Typical applications include display alignment, source emulation, and signal chain testing in conference rooms, control rooms, digital signage installations, and home theater setups. It serves as a bench or field tool for AV professionals who need a reliable 4K test source without depending on a live playback device.

Key Features

• Generates 4K UHD test patterns over HDMI for high-resolution signal verification
• Supports display calibration and signal path diagnostics
• Functions as a standalone signal source, eliminating the need for an active media player during testing
• Suited for both field service and bench use by AV technicians
• Sold as a single unit (EA)

Compatibility

Designed as an OEM-style replacement or field tool compatible with HDMI-equipped 4K UHD displays and AV signal processing equipment. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation and use should be performed by qualified low-voltage AV technicians familiar with HDMI signal standards. Connect the unit to the HDMI input of the display or signal processing device before powering on the downstream equipment. Ensure HDMI cable quality is appropriate for 4K signal transmission to avoid signal degradation during testing. Follow applicable low-voltage wiring codes and the manufacturer documentation for proper operating procedures.
