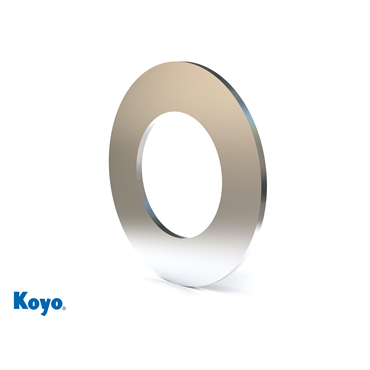

Koyo Corp. TRB-815 Steel Thrust Washer - 0.5 in Inner Diameter (Each)

Product Description

The Koyo Corp. TRB-815 is a steel thrust washer designed for high axial load applications. This thrust washer supports needle bearings and is suitable for thin cross-section setups. The washer is made from premium 1074 thru-hardened steel for strength and durability.

• Compatible with NTA, FNT, and AXK needle thrust bearings
• Features a highly polished surface for smooth roller operation
• Available in different thicknesses

Product Highlights

This thrust washer is ideal for applications requiring a thin design while maintaining high load capacity.

Product Information

Standard Information

• Brand: Koyo Corp.
• Part #: 101710635

Technical Specifications

• I.D.: 0.5 in, 12.7 mm
• O.D.: 0.94 in, 23.8 mm
• Overall Width: 0.06 in, 1.6 mm
• Weight: 0.01 LB
• Bearing Design: Thrust Bearing – Washer Only
• Precision Ground: Yes
• Operating Temperature [Max]: 230 °F
• Operating Temperature [Min]: -22 °F
• Self Aligning: No
• Enclosure: Open
• Lubricant: Rust Preventative
• Origin: Thrust Washer
• Series: TRB
