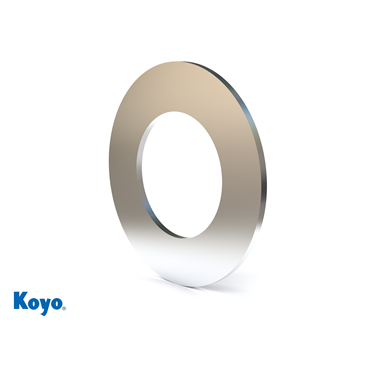

Koyo Corp. TRA-2435 Steel Thrust Washer

Product Description

The Koyo Corp. TRA-2435 is a steel thrust washer designed for high axial load applications. This washer has a one point five inch inner diameter and a two point nineteen inch outer diameter, with an overall width of zero point zero three inches. It is best suited for use with NTA, FNT, and AXK needle thrust bearings.

• Best used with NTA, FNT, and AXK needle thrust bearings.
• Made from premium 1074 thru-hardened steel.
• Available in various thicknesses and sizes.

Product Highlights

This thrust washer features hardened and flat thrust races with a polished surface. It is meant to provide optimal performance under high axial loads while maintaining a thin cross-section.

Product Information

Standard Information

• Brand: Koyo Corp.
• Part Number: 101712732

Technical Specifications

• Inner Diameter: 1.5 in, 38.1 mm
• Outer Diameter: 2.19 in, 55.55 mm
• Overall Width: 0.03 in, 0.81 mm
• Weight: 0.018 LB
• Operating Temperature (Min): -22 °F
• Operating Temperature (Max): 230 °F
• Enclosure: Open
• Lubricant: Rust Preventative
• Precision Ground: Yes
• Bearing Material: 1074 Steel
• End Type: Open End
• Series: TRA
