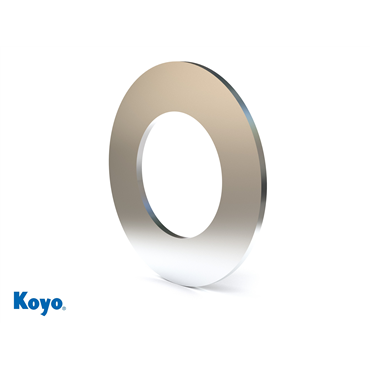

Koyo Corp. TRA-1625 Steel Thrust Washer

Product Description

The Koyo Corp. TRA-1625 is a steel thrust washer designed for efficient performance in various applications. It features a one-inch inner diameter and a one point fifty-six-inch outer diameter. The overall width is zero point zero three inches. This thrust washer is best utilized with NTA, FNT, and AXK Needle Thrust Bearings for applications that require a thin profile and can handle high axial loads.

• Compatibility with multiple bearings for varied applications
• Constructed from premium 1074 thru-hardened steel
• Made for high axial load support and durability

Product Highlights

This thrust washer has a hardened, flat surface and a polished finish, ensuring smooth roller movement. The washer comes in various thicknesses, meeting both inch and metric sizing requirements.

Product Information

Standard Information

• Brand: Koyo Corp.
• Part #: 101711149

Technical Specifications

• I.D.: 1 in, 25.4 mm
• O.D.: 1.56 in, 39.67 mm
• Overall Width: 0.03 in
• Weight: 0.01 LB
• Series: TRA
• Bearing Design: Thrust Bearing – Washer Only
• Operating Temperature [Min]: -22 °F
• Operating Temperature [Max]: 230 °F
• Precision Ground: Yes
