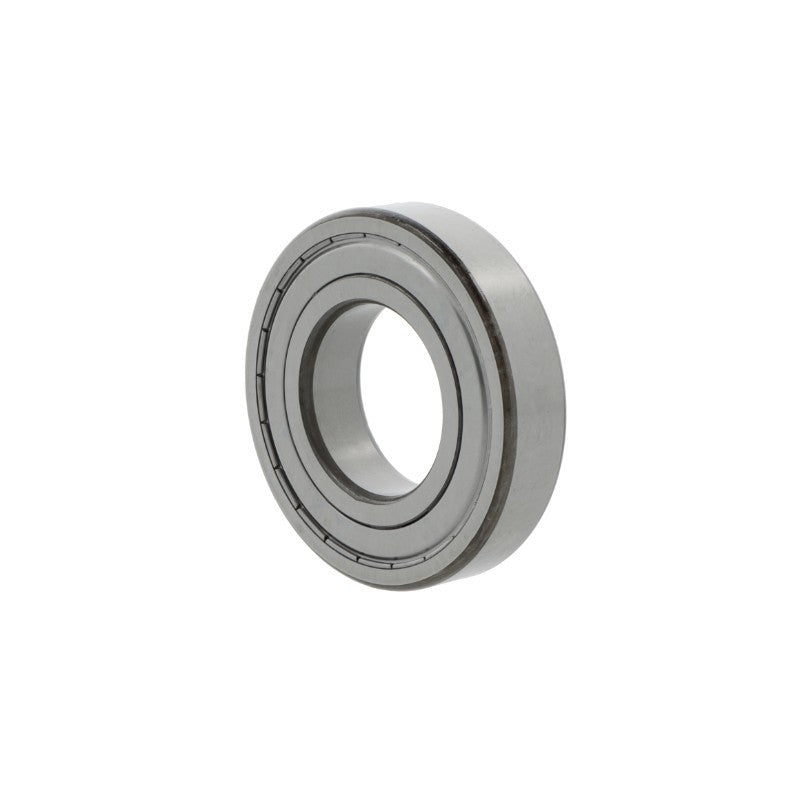

Koyo 6314 ZZC3 Deep Groove Ball Bearing 70x150x35 mm

Product Description

Koyo 6314 ZZC3 is a single row deep groove ball bearing with a 70 mm bore, 150 mm outer diameter, and 35 mm width. It features a sheet steel cage, covers on both sides, and slightly increased radial clearance, with running accuracy class P0/PN2 (ABEC 1). The bearing is made from standard bearing steel for rings and rolling elements and operates from -20 to +150 °C.

• Single row deep groove design with sheet steel cage and covers on both sides
• Dimensions: 70 mm inner diameter, 150 mm outer diameter, 35 mm width
• Slightly increased radial clearance and running accuracy class P0/PN2 (ABEC 1)

Product Highlights

Standard bearing steel construction; cylindrical bore; outer ring without flange or groove; operating temperature -20 to +150 °C.

Product Information

Standard Information

• Brand: KOYO
• Manufacturer Part Number: KOYO6314-ZZC3

Technical Specifications

• Brand: KOYO (JTEKT Europe Bearings BV)
• MPN: 6314 ZZC3
• Bearing Type: Single row deep groove ball bearing
• Inner Diameter: 70 mm
• Outer Diameter: 150 mm
• Width: 35 mm
• Cage Material: Sheet steel
• Seal Type: Covers on both sides
• Radial Clearance: Slightly increased radial clearance
• Running Accuracy: Tolerance class P0/PN2 (ABEC 1)
• Bore Type: Cylindrical bore
• Outer Ring: Without flange or groove
• Rolling Element Material: Standard bearing steel
• Material: Standard bearing steel
• Temperature Range: -20 to +150 °C
• Weight: 2.57 kg
