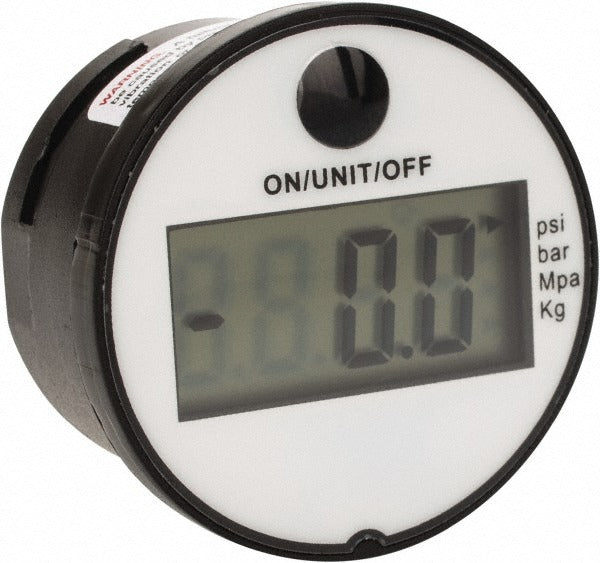

Kodiak Controls KCDG154145 Digital Pressure Gauge 145 Psi

Product Description

The KODIAK CONTROLS KCDG154145 is a digital pressure gauge designed for monitoring gas and air pressure in mechanical and HVAC systems. It features a 1-3/4 inch digital dial face, an ABS (Acrylonitrile Butadiene Styrene) case, and brass wetted parts rated for a 0 to 145 psi pressure range. Accuracy is rated at 1 percent of scale, making it suitable for applications that require reliable, repeatable readings. The center back mount configuration with a 1/4 inch NPT thread connection allows for clean panel or inline installations. Installed by HVAC technicians, plumbers, and mechanical contractors.

This gauge is intended for use with air and compatible gases in both residential and light commercial settings. The NEMA 4X enclosure rating makes it suitable for environments where moisture or dust exposure is a factor, such as mechanical rooms, rooftop units, or outdoor equipment enclosures. The digital readout provides clear pressure readings without parallax error, which is an advantage in tight or awkward installation locations. Operating temperature range runs from -10 degrees F to 140 degrees F.

Key Features

• Digital dial display with 1-3/4 inch face for clear pressure readings
• 0 to 145 psi pressure range suitable for air and gas service
• 1 percent of scale accuracy for reliable field measurements
• ABS case with NEMA 4X rating for moisture and dust resistance
• Brass wetted parts for compatibility with air and common gases
• 1/4 inch NPT center back mount for straightforward panel or inline installation

Compatibility

Designed for use with air and other compatible gases. Suitable as a replacement or new-installation digital pressure gauge in systems requiring a 1/4 inch NPT center back mount connection within the 0 to 145 psi operating range.

Installation Notes

Installation should be performed by a licensed HVAC technician, plumber, or qualified mechanical contractor. Depressurize and isolate the system completely before removing any existing gauge or fitting. Apply thread sealant appropriate for gas or air service to the NPT threads per the fitting manufacturer guidelines. Verify the system operating pressure falls within the 0 to 145 psi range before returning the system to service.
