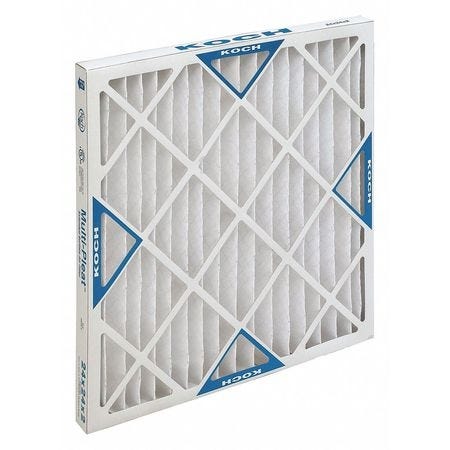

Koch Filter 102-700-010 Multi-Pleat 24 x 24 x 1 in. MERV 8

Product Description

The KOCH FILTER 102-700-010 is a medium-efficiency extended surface pleated panel filter. This filter is engineered to provide higher initial efficiencies and overall superior performance than standard pleated filters. It carries a MERV 8 performance rating and is suitable for hospitals, laboratories, pharmaceutical plants, and commercial office buildings.

• Mechanical MERV 8 media is not reliant on electrostatic charge for efficiency
• Low resistance to airflow
• High dust holding capacity

Product Highlights

Upgrade from standard pleated filters. Sturdy double-wall frame design. Moisture-resistant beverage board frame.

Product Information

Standard Information

• Brand: KOCH FILTER
• Manufacturer Part Number: 102-700-010

Technical Specifications

• Efficiency: 30-35% Merv 8
• Media: Mechanical MERV 8 media is not reliant on electrostatic charge for efficiency
• Resistance: 0.26 in-WG Initial, 1 in-WG Final
• Dust Holding Capacity: High Dust Holding Capacity
• Frame Design: Sturdy double-wall frame design
• Frame Material: Moisture resistant beverage board frame
• Actual Size: 23.38 in W x 23.38 in H x 3/4 in D
• Air Flow Capacity: 1200 cfm
• Depth: 1 in
• Filter Efficiency: 30 - 35%
• Frame Type: Double Wall, Moisture-Resistant Beverage Board
• Height: 24 in
• Item Name: Pleated Panel Filter
• MERV: 8
• Media Area: 6.8 sq-ft
• Media Type: Fiber
• Rated Velocity: 300 fpm
• Sub Brand: Multi-Pleat XL8-SC
• Temperature Rating: 200 deg F
• Type: Extended Surface, Standard Capacity
• Width: 24 in
• Includes: Frame
• Filter Size: 24 x 24 x 1|in
• Selling Size: 24 x 24 x 1|in
• Air Flow Rate: 1200|CFM
• Catalog Number: 102-700-010
• Final Resistance: 1|in WG
• Maximum Velocity: 300|FPM
• Initial Resistance: 0.26|in WG
• Specifications Met: ASHRAE 52.2-2012, cUL Listed, UL 900 Listed
• Air Filter Media Type: Synthetic
• Maximum Operating Temperature: +200|deg F
• MPN: 102-700-010
• Brand: KOCH FILTER
• ManufacturerName: KOCH FILTER CORPORATION
• ManufacturerSKU: 102700010
• Unit of Measure: EA
