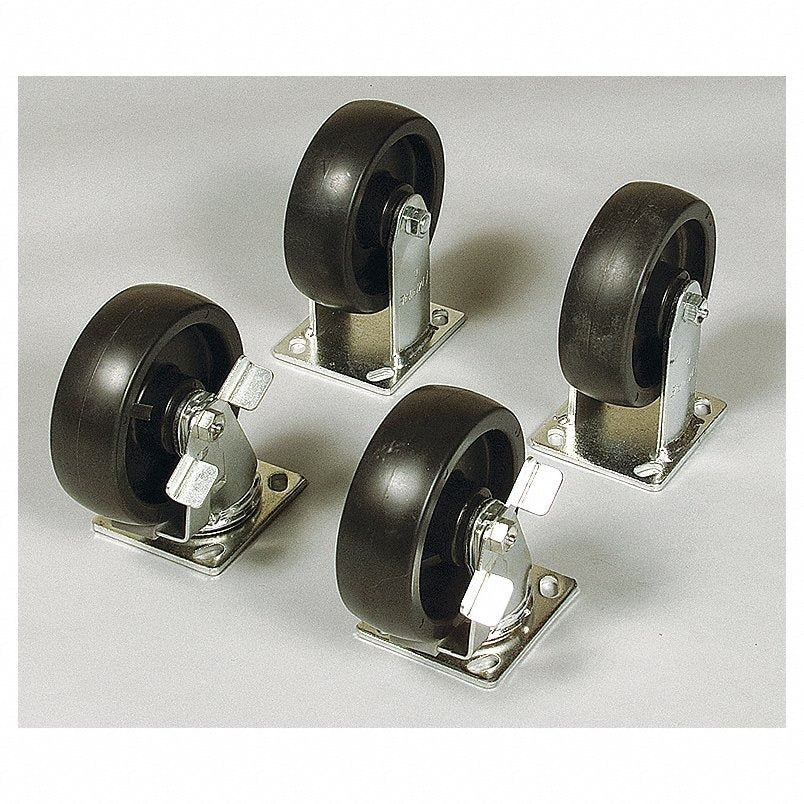

Knaack 695 Caster Set 2600 Lb 6 Inch 4-caster Tool Box Kit

Product Description

The KNAACK 695 is a four-caster replacement and upgrade set designed to mount to the base of tool cabinets, chests, and jobsite storage boxes. The set includes both rigid and swivel casters, giving a storage unit directional stability at the back and full 360-degree maneuverability at the front. Each caster is 6 inches in diameter, 2 inches wide, and molded from polypropylene for durability on concrete and shop floors. The full set supports a total load capacity of 2,600 pounds, making it appropriate for heavily loaded tool storage units. A bolt kit is included. Installation is within the skill set of any journeyman-level tradesperson or facility maintenance technician.

This caster set is suited for residential and commercial shop environments, warehouses, and jobsite trailers where tool storage units need to be repositioned frequently. It serves two purposes: replacing worn or damaged casters on an existing mobile unit, or converting a fixed-base storage unit into a rolling unit. The set is designed to fit a wide range of KNAACK tool boxes and rolling storage products, including model numbers 32, 36, 42, 60, 69, 79, 89, 90, 91, 99, 109, 111, 112, 119, 129, 139, 1000, 1020, 2032, 2048, 2060, 2472, 3068, 4824, and 4830.

Key Features

• 2,600 lb total load capacity supports fully loaded heavy-duty tool storage units
• Mixed caster configuration: two rigid and two swivel casters for controlled directional movement
• 6-inch diameter polypropylene casters roll smoothly on flat concrete and shop floors
• 2-inch caster width provides stable contact surface under load
• Bolt kit hardware included — no separate fastener sourcing required
• Converts fixed storage units to mobile units without modification to the box structure

Compatibility

Designed to fit KNAACK rolling tool boxes and storage units with compatible manufacturer model numbers: 1000, 1020, 109, 111, 112, 119, 129, 139, 2032, 2048, 2060, 2472, 3068, 32, 36, 42, 4824, 4830, 60, 69, 79, 89, 90, 91, and 99. Also cross-references Grainger part numbers 13R503, 13R509, 13R510, 13R511, 13R512, 13R514, 13R516, 13R517, 13R518, 13R520, 13R522, 13R523, 13R524, 13R526, 13R527, 13R528, 13R531, 13R533, 13R534, 13R535, 14V855, 14V866, 20UR03, 36FW28, 36FW29, and 494N29.

Installation Notes

Installation is typically performed by a maintenance technician or tradesperson using standard hand tools. Fully unload and tip or lift the storage unit to expose the base mounting points before installing casters. Verify that the mounting hole pattern on the unit base matches the caster plate before tightening fasteners. Use the included bolt kit hardware to secure all four casters evenly and confirm each swivel caster moves freely before returning the unit to service.

Technical Specifications

• Total Load Capacity: 2,600 lb
• Number of Casters: 4
• Caster Type: Rigid and Swivel
• Caster Material: Polypropylene
• Caster Diameter: 6 inches
• Caster Height: 6 inches
• Caster Width: 2 inches
• Color: Black
• Includes: Hardware Bolt Kit
• Compatible Product Type: Rolling Tool Boxes
• Country of Origin: China (subject to change)

Standard Information

• Brand: KNAACK
• Manufacturer Part Number: 695
