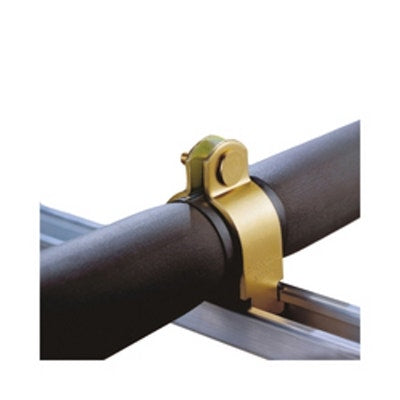

KLO-SHURE 724212 Strut Mount Insulation Coupling

Product Description

The KLO-SHURE 724212 is a strut mount insulation coupling that effectively supports and secures copper tubes while independently maintaining insulation. This product is designed to enhance the vapor barrier compared to traditional methods by allowing the insulation to fit directly into the coupling, preventing damage from weight over time.

• Maintains thermal vapor barrier
• Provides proper support for pipes and tubes
• Applicable for horizontal, vertical, and inverted installations

Product Highlights

Ideal for insulated pipe line support without the need for rigid insulation supports or shields. Plenum rated for secure applications.

Product Information

Standard Information

• Brand: KLO-SHURE
• MPN: 724212

Technical Specifications

• Series/Model: 7 Series
• Tube Outside Diameter: 2-1/8 inches
• Insulation Wall Thickness: 1/2 inches
• Material: 304/316 Stainless Steel
• Outer Diameter: 3.25 inches
• Temperature Rating: -60 to 225 degrees F
• Applicable Standard: UL, ANSI/MSS SP-58 Type 61
• Used On: Strut Mounted Clamp
