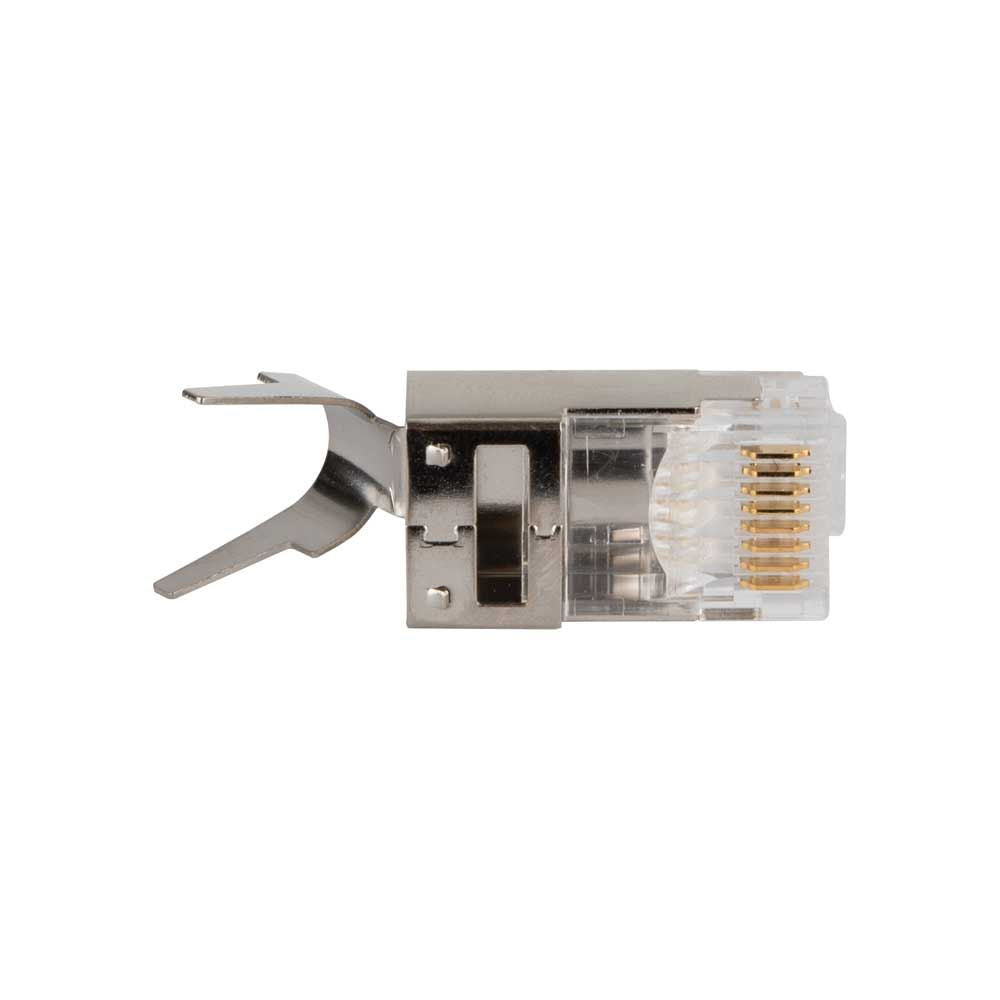

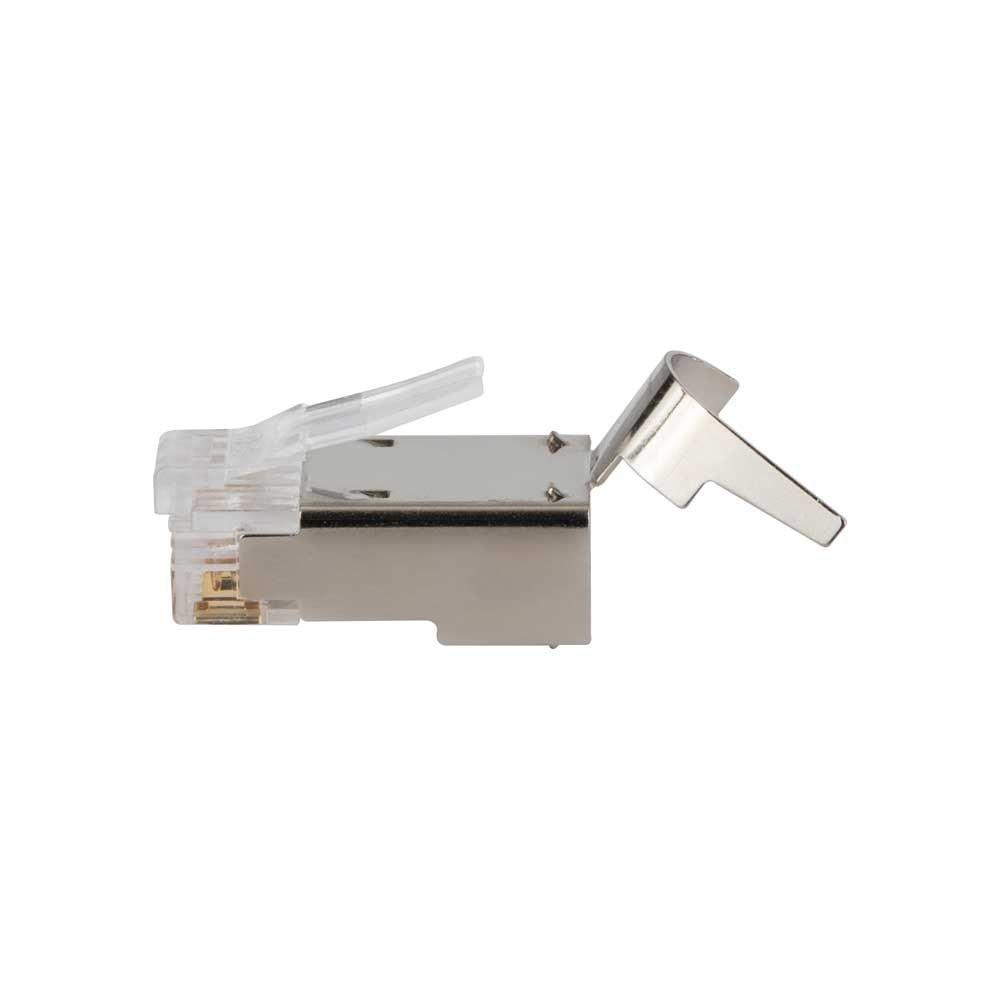

Klein Tools VDV826-754 Pass-Thru Modular Data Plug, RJ45-CAT6A, Shielded (STP), 100-Pack

Product Description

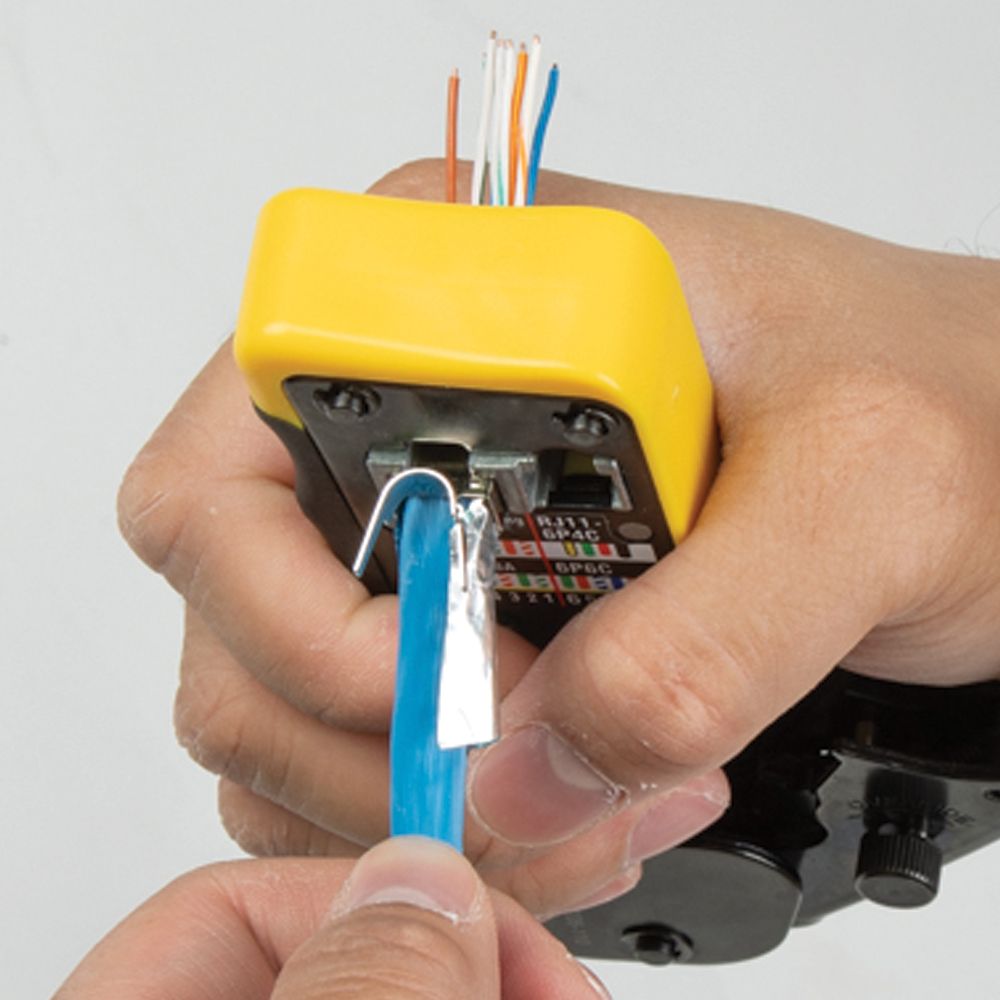

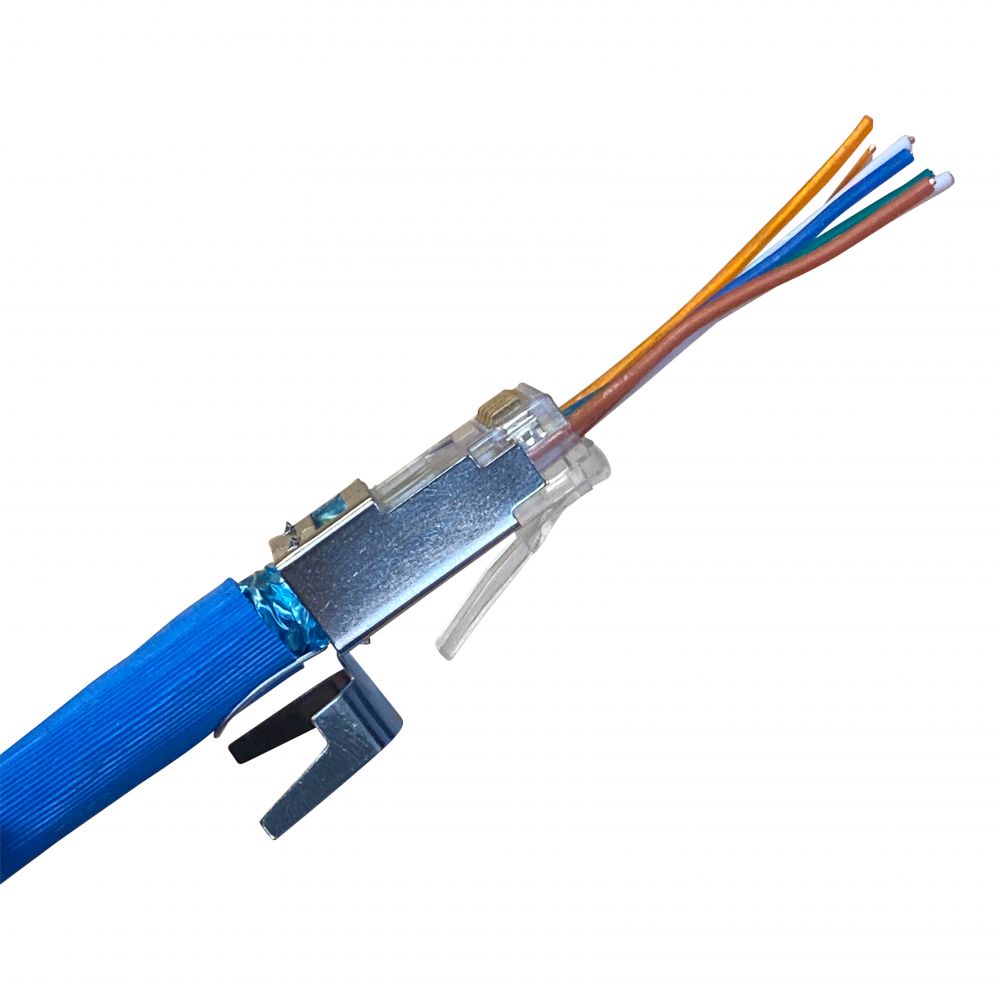

The KLEIN TOOLS VDV826-754 Pass-Thru Modular Data Plug offers fast, reliable connector installations for data applications. Designed for CAT6A shielded cable and larger diameter CAT6 cable, the CAT6A cable easily passes through the connector, ensuring correct wire order for consistent terminations. Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended).

• Provides fast, reliable connector installations for data applications
• For CAT6A shielded cable and larger diameter/thicker jacket CAT6 cable
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards

Product Highlights

The Klein Tools Pass-Thru RJ45 modular data plugs are for fast installation of CAT6A cables. They come in a pack of 100 and trims flush to end face with Klein's Pass-Thru crimper VDV226-110.

Product Information

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: VDV826-754

Technical Specifications

• Type: Modular
• Application: Data
• Special Features: Pass-Thru Technology; Meets All PoE+ Standards
• Overall Length (Inch): 0.8
• Overall Height (Inch): 0.6
• Overall Width (Inch): 0.4
• Material: PVC Plastic; Gold Plated Contacts
• Connector Type: RJ45
• Cable Type: CAT6A STP and Larger Diameter CAT6
• Position & Contacts: 8P 8C
• Connector Color: Clear
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes

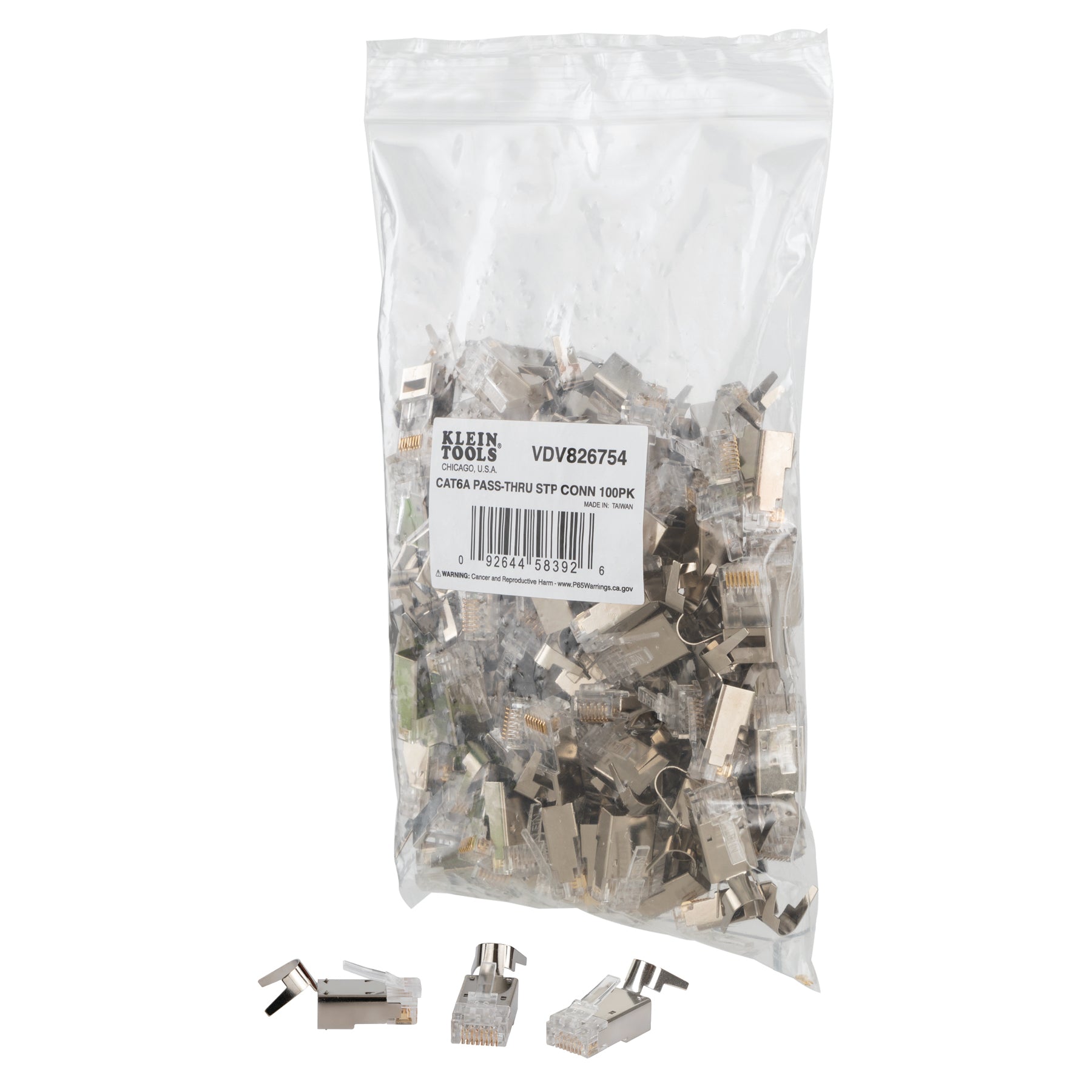

• Package Quantity: 100
• Brand: Klein Tools
• Part Number: VDV826-754
• Product Type: Pass-Thru Modular Data Plug
• Number of Pieces: 100
