Klein Tools VDV500-920 Digital Tone and Probe Set

Product Description

The Klein Tools VDV500-920 Digital Tone and Probe Set traces and locates network cables within bundles, switches, patch panels, or termination blocks. It offers both digital and analog signaling in one toner and probe. Designed with cable tracing and location technology for any work environment. Use the digital mode to trace data cables on active networks and the analog mode to isolate wire pairs and trace voice, data, video, and audio cables.

• Digital and analog signaling
• Powerful cable tracing and locations technology
• Digital mode for tracing data cables on active networks
• Analog mode for isolating wire pairs and tracing voice, data, video and audio cables

Product Highlights

The Klein Tools Digital Tone and Probe Set is ideal for tracing and locating cables on active and inactive networks.

Product Information

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: VDV500-920
• Country of Origin: China

Technical Specifications

• MPN: VDV500-920
• Brand: KLEIN TOOLS
• Type: Tone Generator, Tracing Probe
• Application: Wire Toning and Tracing
• Special Features: Angled Bed of Nails with (ABN) Clips, RJ45 Port, 3 Distinct Cadences, Worklight
• Overall Length (Inch): 6.8
• Overall Width (Inch): 3
• Material: ABS
• Batteries: 8 x AAA

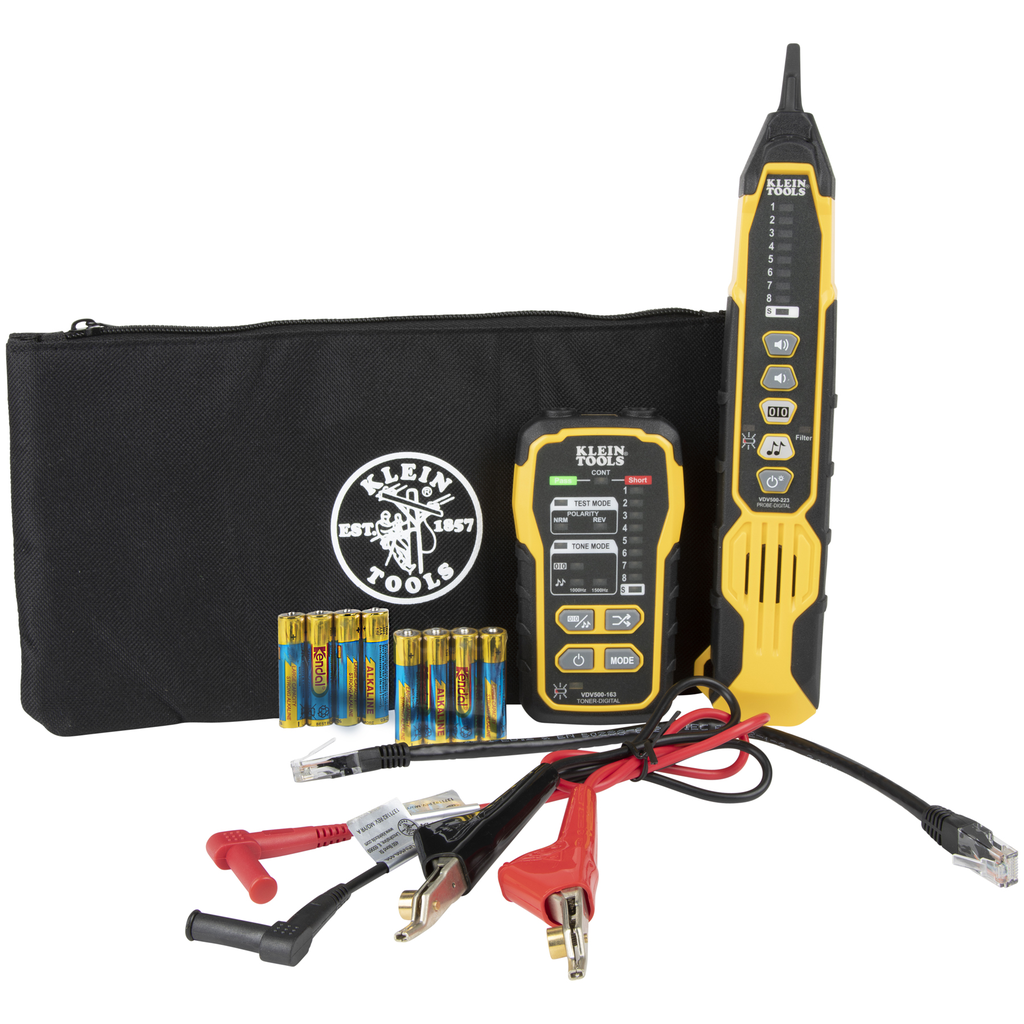

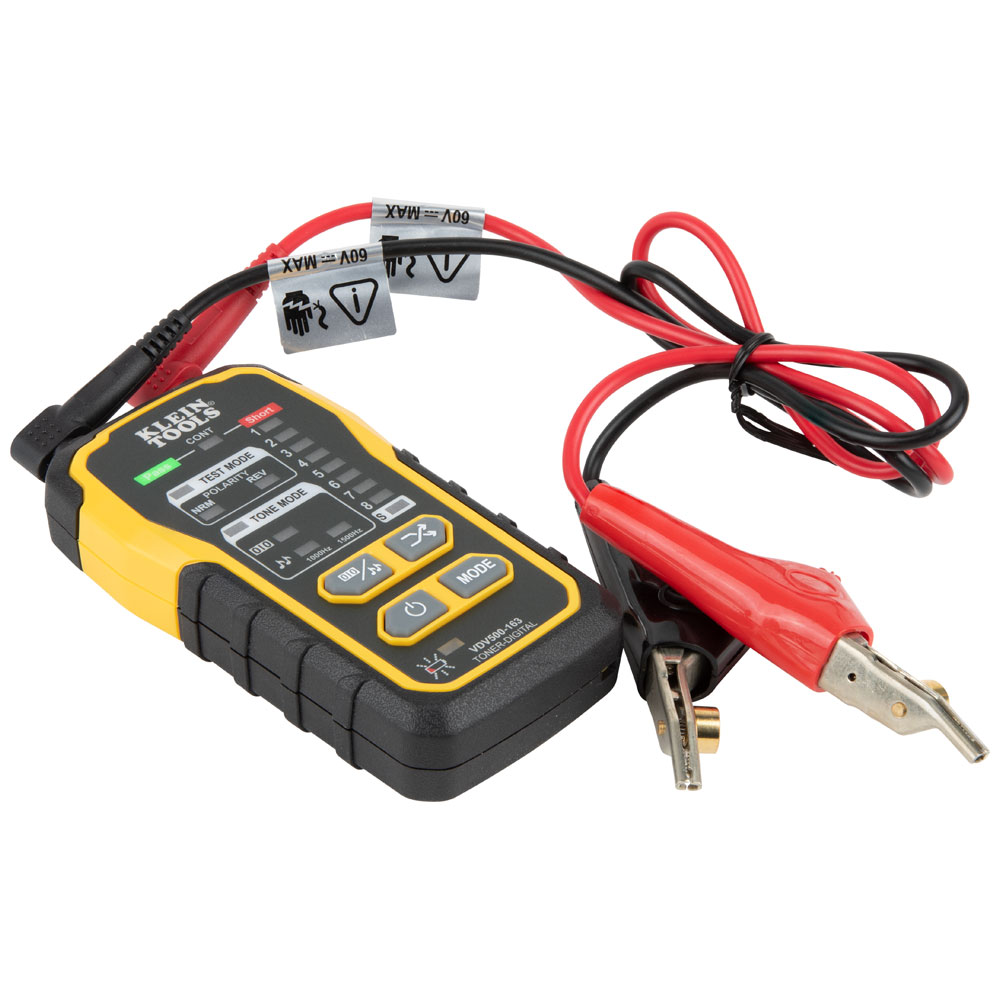

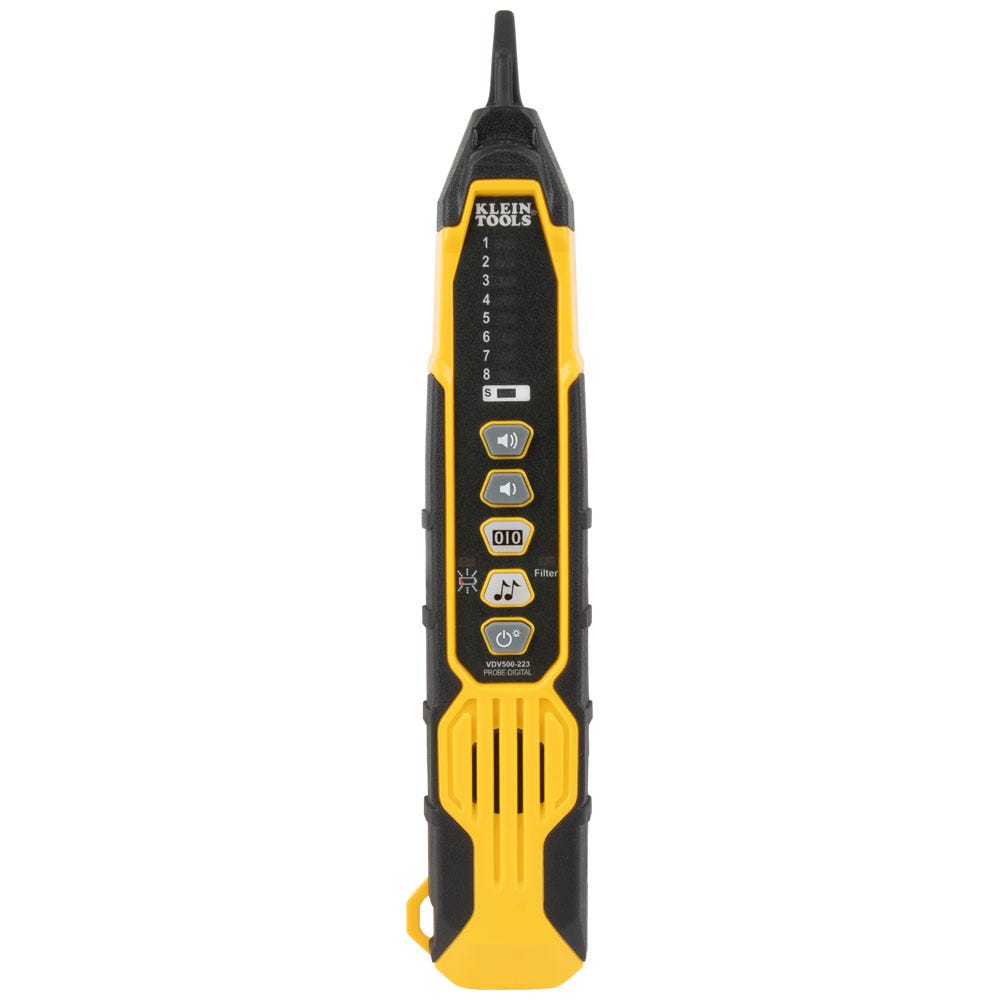

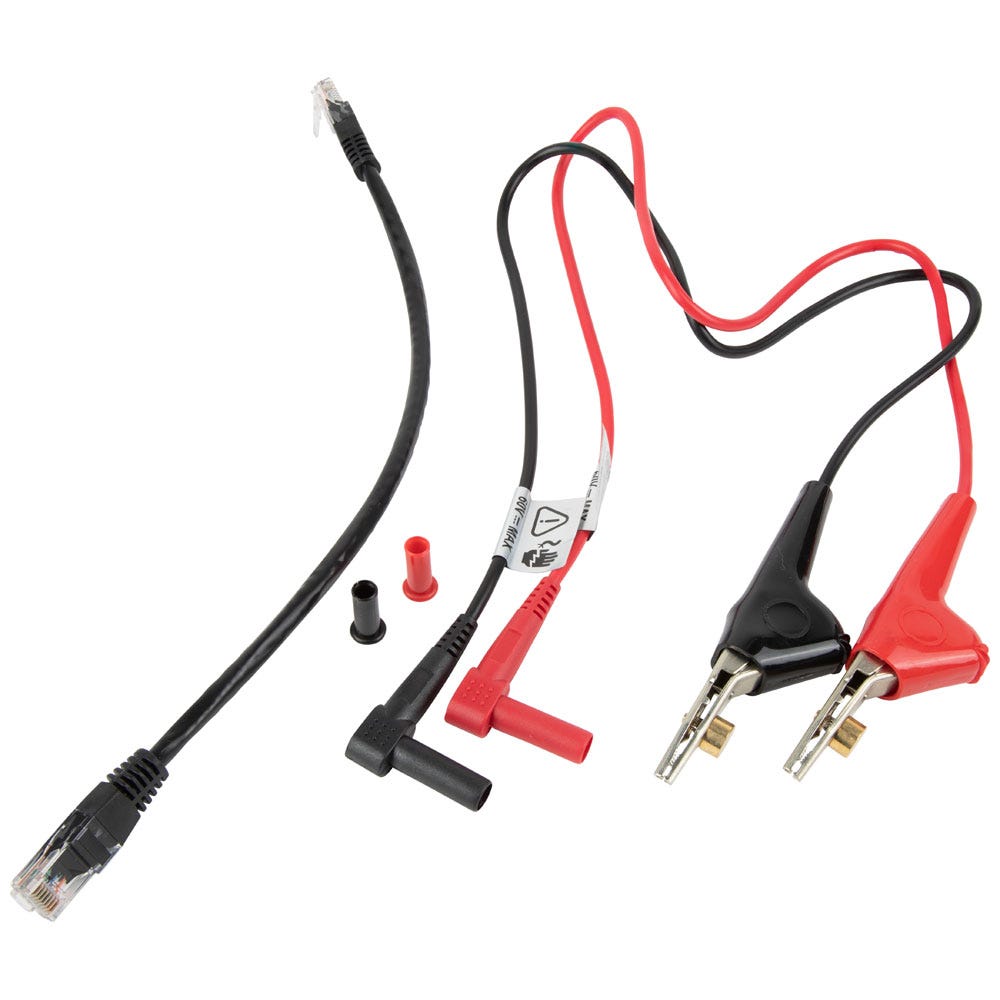

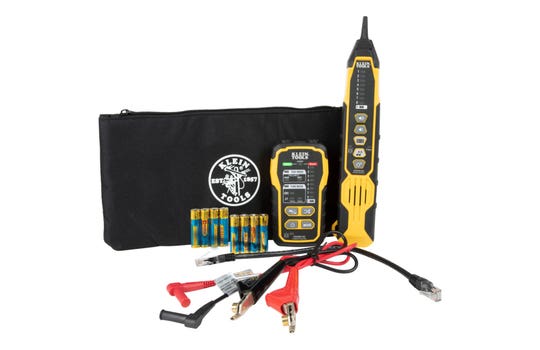

• Included: VDV500-163 Digital Tone Generator; VDV500-223 Digital Tracing Probe; Pouch; Test Leads; Instructions; and All Required Batteries
• Frame Color: Black/Orange/Gray
• Battery Type: Alkaline
• Style Name: Digital and Analog
• Battery Size: AAA
• California Proposition 65 Warning Required: Yes
• Country of Origin: China
• DC Polarity Indicator: Not Applicable
• DC Voltage: 0
• MFG Part # (OEM): VDV500-920
• Tester Type: Data Com
• UPC: 092644583872
