Klein Tools 93MCLPG Compact Cross-Line Laser Level with Plumb Spot

Product Description

The Klein Tools 93MCLPG is a self-leveling laser alignment tool designed for precise alignment tasks. It features bright green laser lines and a plumb spot, offering a 75-foot indoor working range. This compact laser level is ideal for construction, allowing direct positioning over metal tracks or 2x4s due to its base cut-out design. It is built to resist water and dust with an IP54 rating, ensuring reliability on demanding job sites.

• Bright green lasers deliver highly visible lines and a plumb spot with a 75-Foot working range

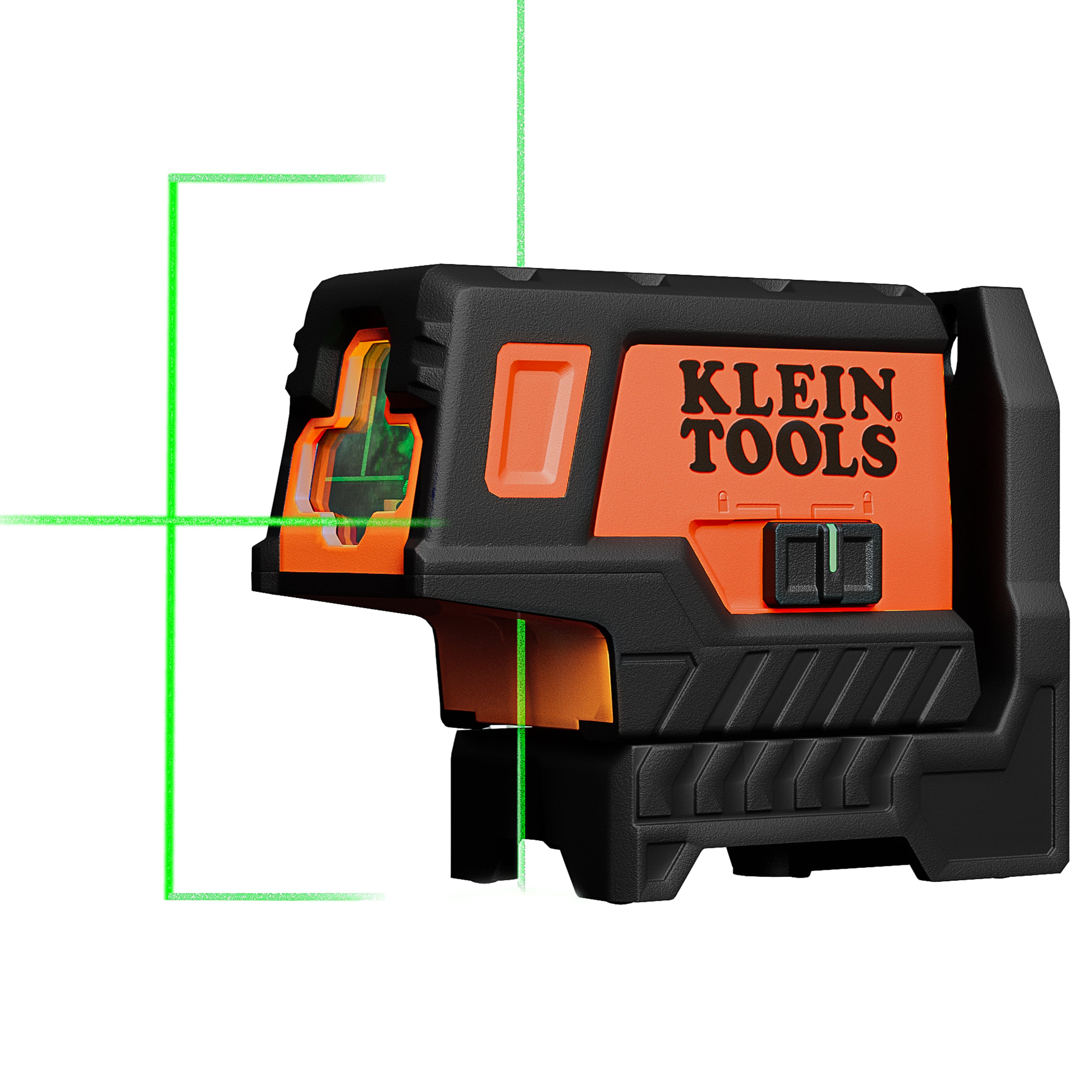

• Dual-line functionality projects both horizontal and vertical lines for versatile leveling and alignment

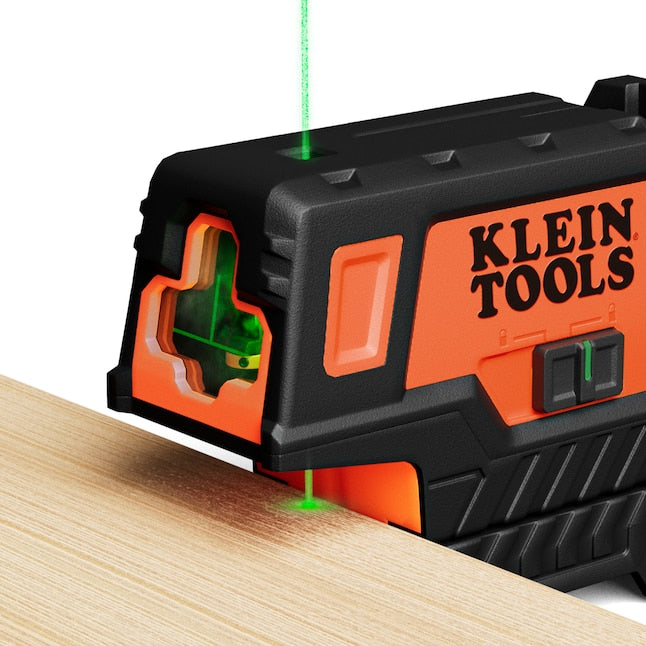

• Base cut-out allows for direct alignment on 2 x 4's or metal tracks without a tripod, providing flexible positioning for various job applications

Product Highlights

Compact, slim, and lightweight design with IP54 ingress protection and over 6 hours of battery life.

Product Information

Standard Information

• Brand: KLEIN TOOLS
• Manufacturer Part Number: 93MCLPG
• Country of Origin: China

Technical Specifications

• Type: Self-Leveling Laser Level
• Application: Self-Leveling Laser Alignment Tool
• Special Features: Base Cut-Out
• Material: Neodymium
• Battery Type: 3xAA Alkaline
• Battery Voltage: 1.5V x 3 (4.5V total)
• Laser Wavelength: 508 - 530nm
• Laser Safety Compliance: Complies with 21 CFR 1040.10 and 1040.11 Except for Conformance with IEC 60825-1 Ed. 3., as Described in Laser Notice No. 56, Dated May 8, 2019
• Number of Beams: 4 (2 Plumb and 2 Crosslines)
• Laser Color: Green
• Laser Power Output: <1mW
• Laser Class: 2
• Plumb Laser Function: Yes
• Indoor Range: 75 feet (22.8 meters)
• Display: No
• Accuracy: ±3/16 inch per 33 feet (±5 mm per 10 meters)
• Pulse Mode: No
• Receiver Compatibility: No
• Magnet Type: N40
• Drop Protection: 3.3 feet (1 meter)
• Ingress Protection Rating: IP54
• Transit Locking Mechanism: No
• Low Battery Alarm: No
• Low Battery Indicator: Yes, flashes 3 times within 1.5 seconds followed by 30 seconds of solid laser lines when batteries need replacement
• Out-of-Level Indicator: Yes
• Compliance Standards: EN61326-1:2013, EN60825-1:2014
• Mounting Type: Magnets, 1/4-20 Tripod Thread, Hang Hole
• Included Case Type: Zipper Bag
• Included Components: Laser Level, Soft Carrying Case, Instruction Manual, 3 x AA 1.5V Alkaline Batteries
• Battery Life: Over 6 Hours
• Model Number: 93MCLPG
• Laser Style: Cross-Line
• Item Type: Cross-Line Laser Level with Plumb Spot
• Measurement Units: Feet
• Operation Mode: Automatic
• Measurement Type: Laser
