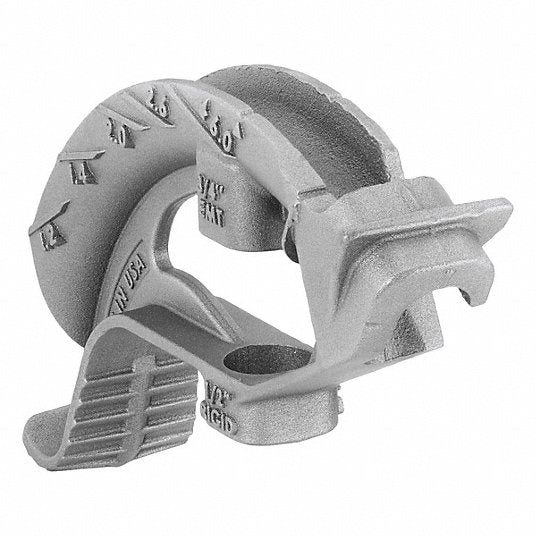

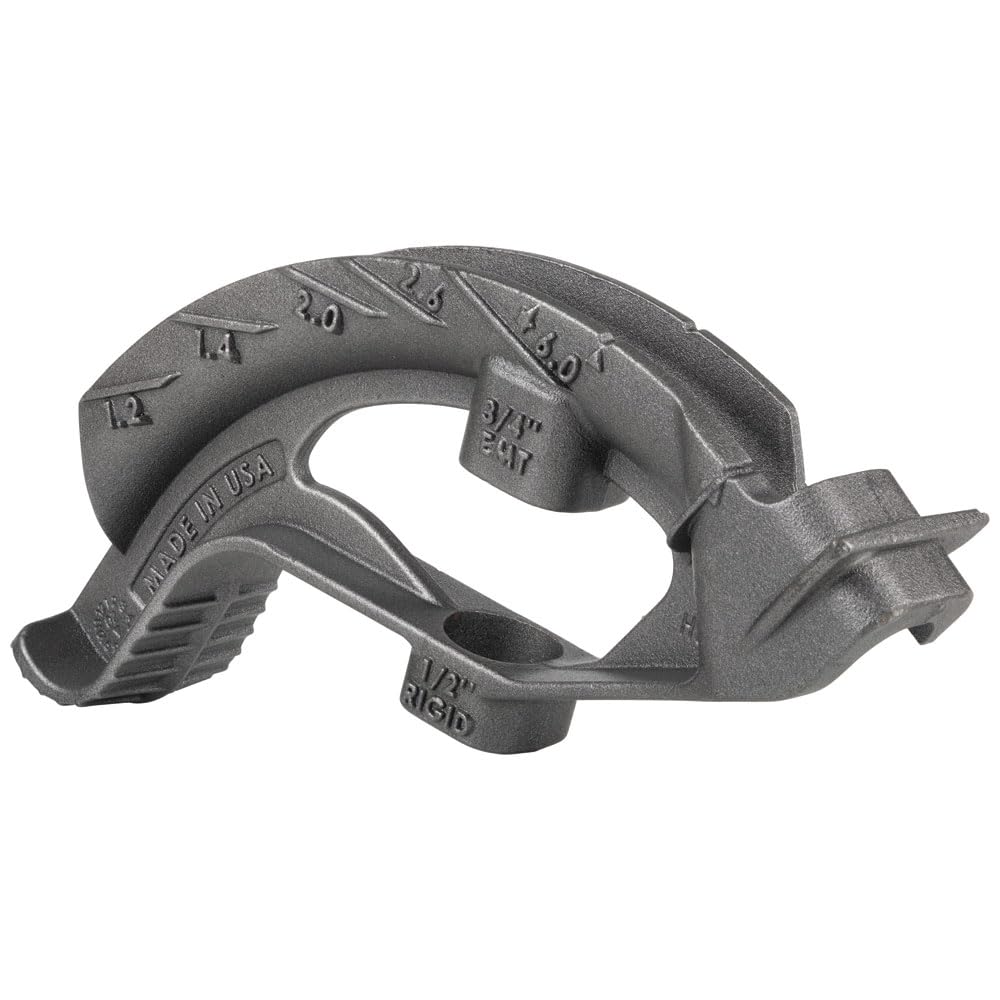

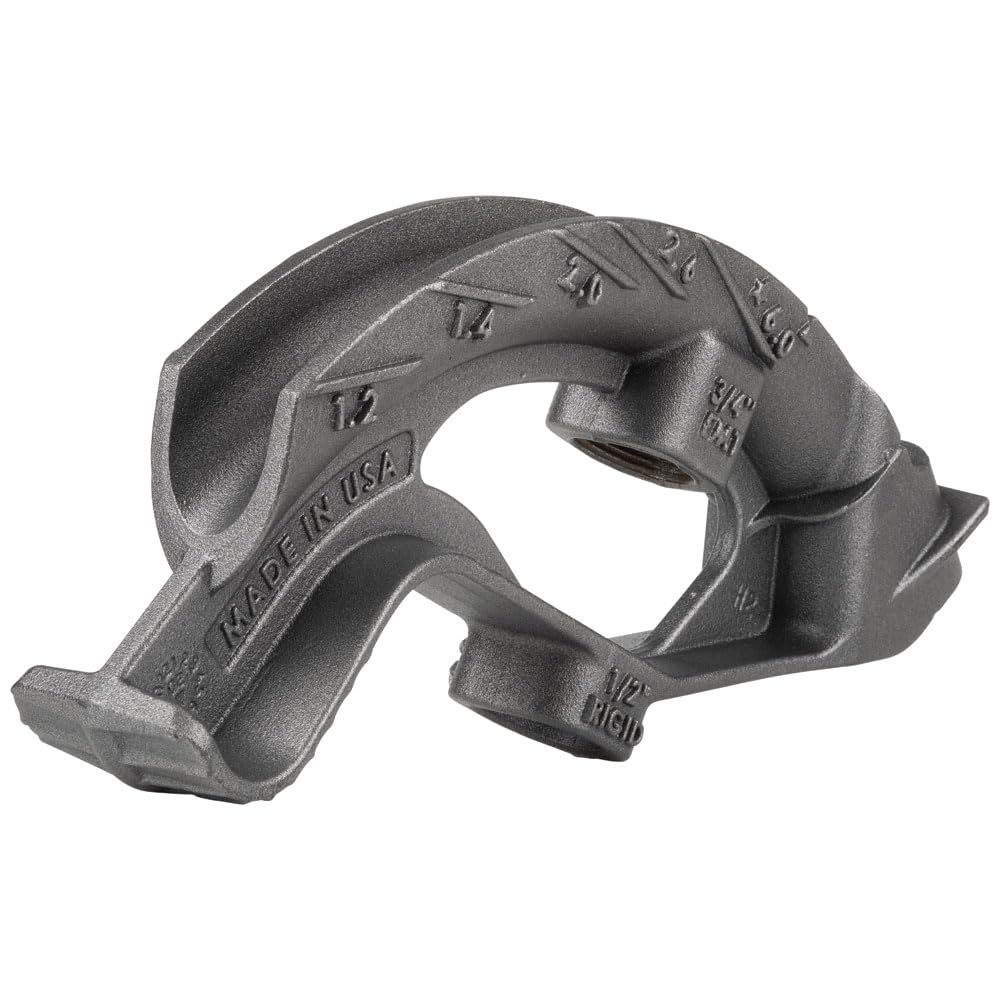

Klein Tools 51609 Iron Conduit Bender Head 3/4-Inch EMT or 1/2-Inch Rigid IMC

Product Description

The Klein Tools 51609 Iron Conduit Bender Head is designed to handle thin wall EMT up to 3/4-Inch and rigid IMC up to 1/2-Inch thick. It is made from iron with an advanced casting process for core strength and durability. The wide foot pedal provides stability and features angled grooves for extra traction. It works with Klein's Angle Setters (Cat. No. 51612) and Handle (Cat. No. 51427).

• Designed to handle thin wall EMT up to 3/4-Inch and rigid IMC up to 1/2-Inch thick.
• Made from Iron with Klein's advanced casting process for the ultimate in core strength and durability.
• Wide foot pedal provides excellent stability and features angled grooves for extra traction.

Product Highlights

The 3/4-Inch Iron Bender Head features bold cast markings and symbols for fast conduit alignment. It is compatible with Klein's Angle Setter technology for accurate bends.

Product Information

Standard Information

• Brand: Klein Tools
• Manufacturer Part Number: 51609
• Country of Origin: USA

Technical Specifications

• ECCN: EAR99
• UNSPSC: 27112503
• Brand: Klein Tools
• Model / MPN: 51609
• Size: 3/4'' EMT; 1/2'' Rigid IMC
• Item: Conduit Bender Head
• Type: Iron Bender Head
• Pedal: Yes
• EMT Size: 3/4 in
• Features: Bold Cast Markings and Symbols, Markings for 10 Degrees , 22.5 Degrees , 30 Degrees , 45 Degrees , 60 Degrees and Corresponding Offset Multipliers, Interior Hook Surface, Wide Foot Pedal
• Includes: Interior Clamp
• Markings: Cast-In Symbols, Center of Bend, Degree and Multiplier Scales
• Material: Iron
• Application: Conduit Bending
• Construction: Iron
• Accessory Type: Conduit Bender Head
• Rigid/IMC Size: 1/2 in
• IMC/RMC Conduit Size: 1/2 in
• Compatible with Brand: Klein's
• Centerline Bend Radius: 5''- Stub-up Height 6'', Centerline Radius 5-1/2''
• Compatible with Product Type: Bender Handle, Angle Setter(TM)
• EMT Conduit Size - Stainless Steel: 3/4 in
• Compatible Manufacturer Part Number: 51427, 51612
• Compatible with Manufacturer Model Number: 51427, 51612
• EMT Conduit Size - Aluminum and Galvanized Steel: 3/4 in
• Special Features: Bold, Cast Markings, Compatible with Angle Setter™
• Overall Length: 1.9'' (4.8 cm)
• Overall Height: 6.2'' (15.6 cm)
• Overall Width: 9.8'' (24.8 cm)
• Thinwall/EMT: 3/4" (1.9 cm)
• Rigid/IMC: 1/2" (1.3 cm)
• Conduit Size: 3/4" EMT; 1/2" Rigid IMC
• Weight: 3.4 lb. (1.5 kg)
• Standard: —
• Included: Head Only
