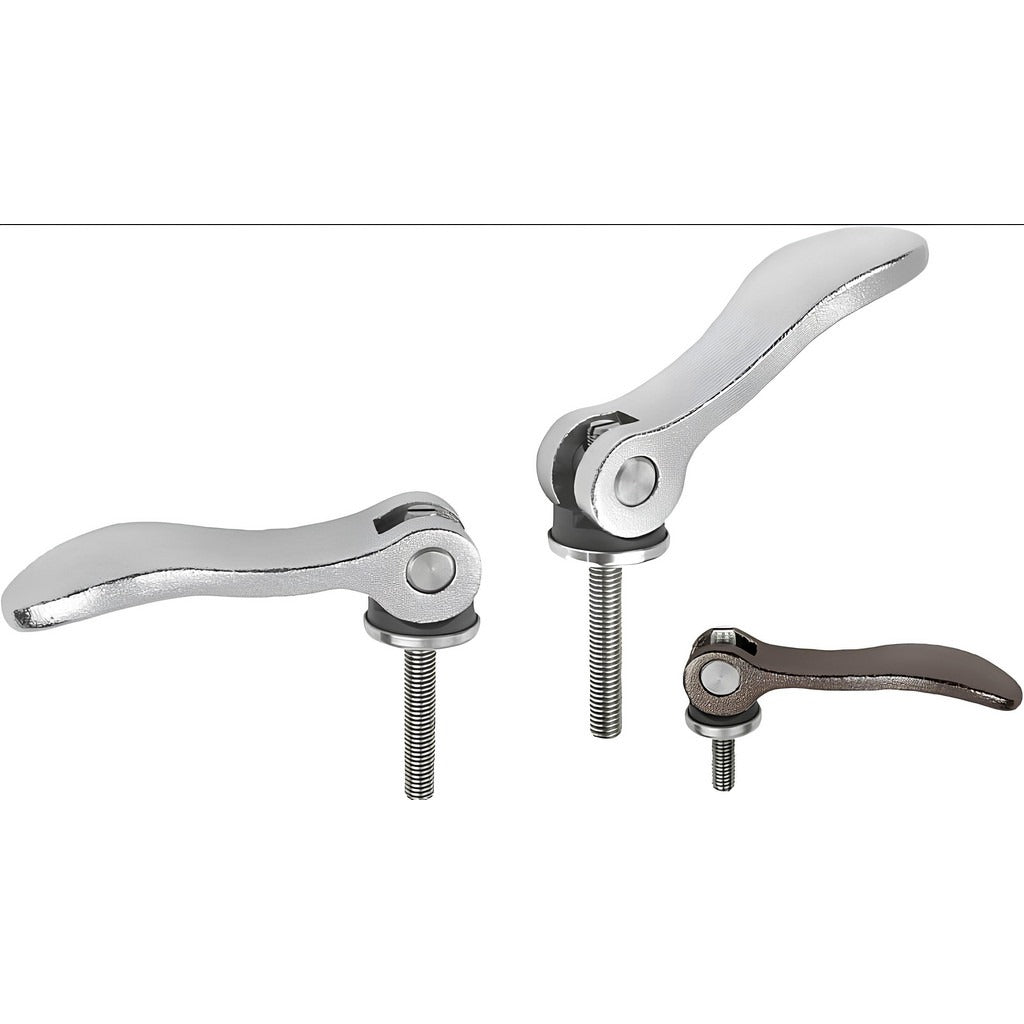

Kipp K0647.2512010X30 Adjustable Clamping Handle M10x1.5

Product Description

The KIPP K0647.2512010X30 is an adjustable cam lever clamping handle designed for secure, tool-free clamping in industrial machinery and mechanical assembly applications. The handle features an M10x1.5 threaded stud connection, a stainless steel body and stud, and an electrolytically polished arm for corrosion resistance. With a handle length of 4.25 inches and a hub diameter of 1.06 inches, this part delivers reliable clamping force across a variable arm angle range. The handle arm and structural components are constructed to AISI 316 and AISI 303 stainless steel specifications, making it suitable for environments where cleanliness and corrosion resistance are required. Installation and adjustment require no special tooling and are typically performed by maintenance technicians or machine builders.

This clamping handle is used in industrial, manufacturing, and mechanical assembly settings where repeatable, hand-operated clamping is needed. Typical applications include fixturing, jigs, machine guards, enclosure panels, and equipment covers that require frequent adjustment or removal. The threaded stud mount style allows direct integration into tapped holes on machine frames or structural components. The modern-design arm style and bright silver finish also suit clean-room and food-processing adjacent environments where stainless steel hardware is specified.

Key Features

• Adjustable cam lever mechanism allows variable clamping force with hand operation only
• M10x1.5 threaded stud mount for direct installation into standard tapped holes
• Stainless steel construction to AISI 316 and AISI 303 specifications for corrosion resistance
• Electrolytically polished handle arm for smooth operation and easy cleaning
• Fiberglass reinforced plastic thrust washer with stainless steel hinge pin, washer, and screw for durable pivot assembly
• Bright silver finish with modern-design arm style suited to industrial and clean environments

Compatibility

Designed as an OEM-style threaded stud clamping handle for industrial machinery, fixtures, and mechanical assemblies requiring an M10x1.5 threaded mount point.

Installation Notes

Installation is performed by threading the stud directly into a prepared M10x1.5 tapped hole on the target assembly. Ensure the mating surface is clean and free of debris before seating the handle. No special tools are required for hand-tightening, but a wrench may be used on the stud for initial installation torque if the application requires it. De-energize or lock out any equipment before servicing components that use this handle as a guard or access panel fastener.
