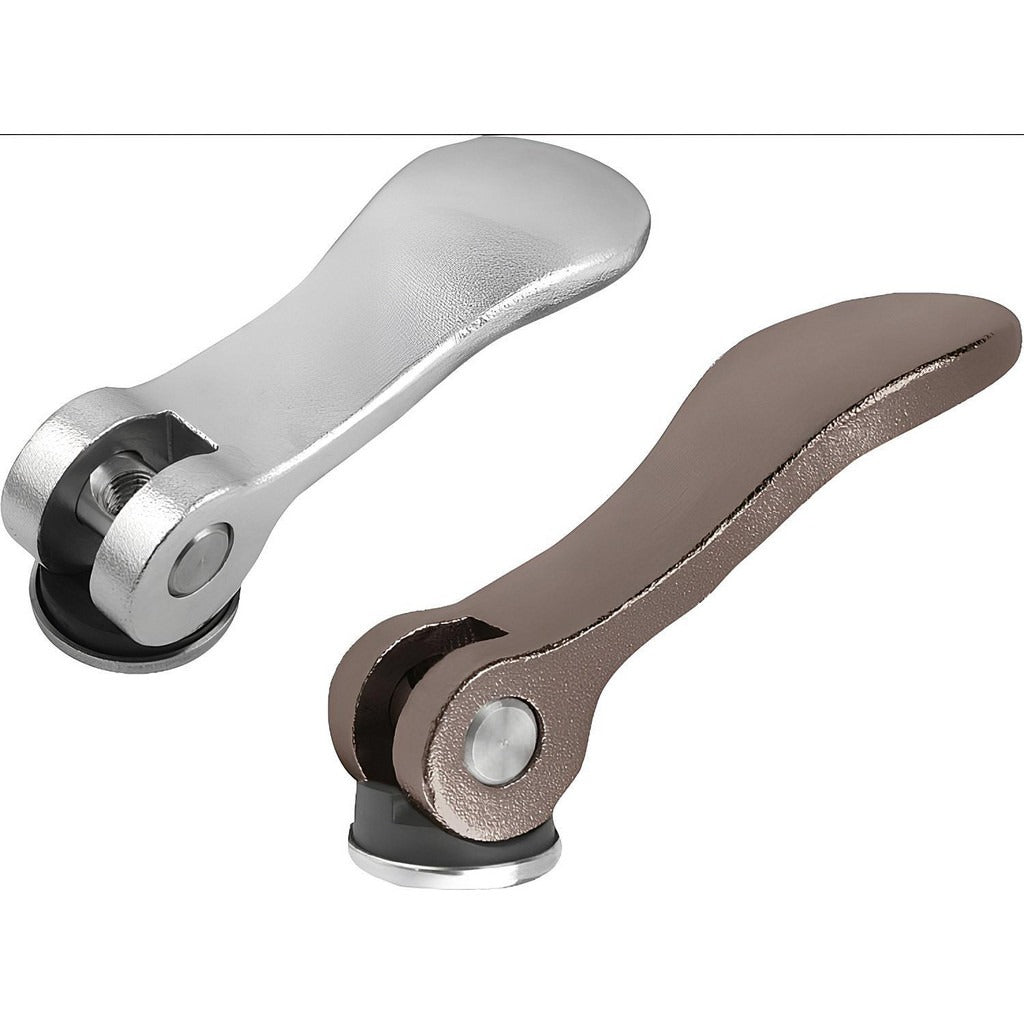

Kipp K0645.1512005 Adjustable Clamping Handle M5x0.8

Product Description

The KIPP K0645.1512005 is an adjustable cam lever clamping handle designed for threaded-hole mounting on industrial machinery, fixtures, and equipment. It features an M5x0.8 threaded connection with a 14.5 mm threaded depth, a stainless steel handle arm finished with an electrolytic polish, and a hub diameter of 0.59 inches. The handle arm length measures 3.12 inches and the overall height is 0.87 inches. The variable-angle cam lever design allows the operator to reposition the handle arm to avoid obstructions during clamping. Installation and adjustment are performed by maintenance technicians and machine builders working on light mechanical assemblies.

This clamping handle is suited for use in industrial and commercial applications where corrosion resistance and adjustable handle positioning are required. Typical installations include machine tool fixtures, enclosures, access panels, and precision equipment where an M5 threaded fastening point is present. The electrolytically polished stainless steel arm and stainless steel hinge pin and washer hardware make this handle appropriate for environments exposed to moisture or cleaning agents. The thrust washer is fiberglass reinforced plastic, providing smooth, consistent cam action under repeated use.

Key Features

• Adjustable cam lever arm with variable handle arm angle to clear obstructions
• M5x0.8 threaded hole connection with 14.5 mm threaded depth
• Handle arm constructed from AISI 316 and AISI 303 stainless steel with electrolytic polish finish
• Hub diameter of 0.59 inches and hub height of 0.57 inches
• Fiberglass reinforced plastic thrust washer for smooth, repeatable cam engagement
• Compact base diameter of 18.1 mm with silver finish body

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for industrial fixtures, machine enclosures, and equipment panels requiring an M5x0.8 threaded mounting point.

Installation Notes

Installation is performed by maintenance technicians or machine builders using standard hand tools. Ensure the mating threaded hole is clean and free of debris before threading the handle into place. Power down or de-energize any associated equipment before servicing panels or fixtures secured by this handle. Do not exceed the rated engagement depth of 14.5 mm to avoid thread damage in the mating component.
