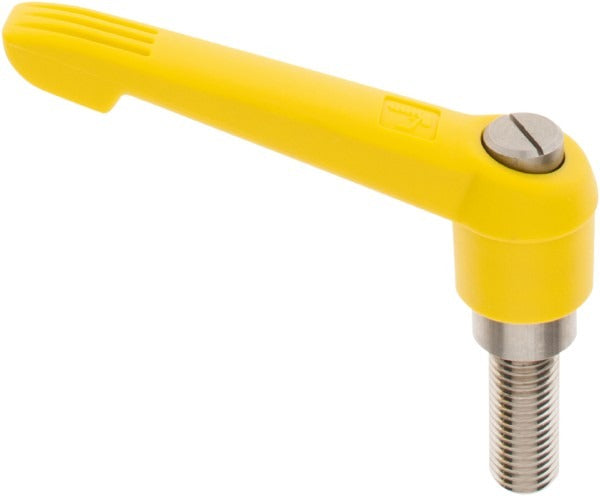

Kipp K0270.51616X40 Adjustable Clamping Handle M16x2

Product Description

The KIPP K0270.51616X40 is a metric threaded stud adjustable clamping handle designed for secure, tool-free clamping in industrial and mechanical assembly applications. The handle body is molded from fiberglass-reinforced plastic and features a yellow finish for high visibility. The threaded stud and all metal components are stainless steel, grade AISI 303, providing corrosion resistance in demanding environments. The M16x2 threaded stud measures 40 mm in length. Overall handle length is 110 mm, and the hub diameter is 30 mm. Licensed technicians, machinists, and mechanical assemblers typically specify this handle where repeatable hand-tightened clamping is required on fixtures, jigs, and machinery.

This adjustable clamping handle suits industrial machinery, fabrication fixtures, workholding equipment, and mechanical assemblies that require frequent manual adjustment. The adjustable arm style allows the grip to be repositioned to avoid obstructions, making it practical in tight or crowded mounting areas. It is appropriate for both OEM equipment builds and MRO replacement installations wherever an M16x2 threaded stud mount is specified.

Key Features

• M16x2 metric threaded stud with 40 mm threaded length for direct stud-mount installation
• Fiberglass-reinforced plastic handle body provides strength and resistance to chemicals and heat
• Stainless steel stud and components, AISI 303, for corrosion resistance
• Adjustable arm style with 20-degree handle arm angle allows repositioning to clear obstructions
• 30 mm hub diameter and 110 mm handle length deliver mechanical advantage for hand-tightened clamping
• Yellow handle color provides quick visual identification on machinery and fixtures

Compatibility

Designed as a threaded stud clamping handle for industrial fixtures, jigs, and mechanical assemblies requiring an M16x2 metric threaded stud mount.

Installation Notes

Installation is performed by machinists or mechanical assemblers. Power down and de-energize any associated machinery before removing or installing clamping hardware. Thread the stud into the receiving boss by hand to avoid cross-threading before applying final torque. Verify thread engagement depth is sufficient for the load requirements of the application per the equipment manufacturer's specifications.
