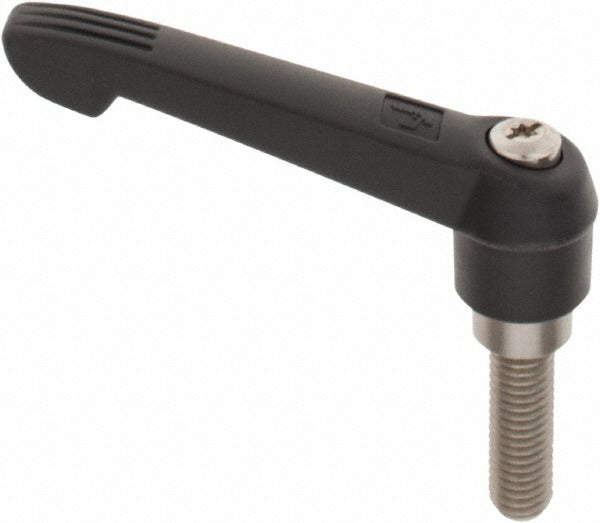

Kipp K0270.4A51X40 Adjustable Clamping Handle 1/2-13

Product Description

The KIPP K0270.4A51X40 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping in industrial and machine-building applications. The handle body is molded from fiberglass-reinforced plastic in black with a modern arm design set at a 20-degree angle, providing positive grip and repeatable positioning. The threaded stud is stainless steel (AISI 303) with a bright finish and a 1/2-13 thread, making it compatible with standard machine taps and fixtures. Overall handle length is 3.74 inches with an overall height of 2.60 inches. Weight is 0.28 pounds. This component is installed by machine builders, maintenance technicians, and tool-room professionals on equipment requiring frequent manual adjustments.

The K0270.4A51X40 is suited for use on jigs, fixtures, machine guards, enclosures, and workholding assemblies in manufacturing, automation, and industrial maintenance environments. The adjustable design allows the handle arm to be repositioned to clear obstructions or optimize grip angle during operation. Typical applications include clamping assemblies on CNC fixtures, inspection equipment, and general-purpose machine frames where a threaded stud mount is required. The fiberglass-reinforced plastic body resists common shop chemicals and maintains structural integrity in moderate-temperature environments.

Key Features

• 1/2-13 threaded stud mount for compatibility with standard tapped holes and hardware
• Stud length of 1.57 inches (40.00 mm) in stainless steel (AISI 303) with bright finish
• Fiberglass-reinforced plastic handle body - chemical-resistant, lightweight at 0.28 pounds
• Adjustable arm at 20-degree angle for flexible positioning around obstructions
• Hub diameter of 1 inch with 1.0039-inch body diameter for a robust base interface
• REACH Compliant and RoHS Compliant

Compatibility

Designed as an OEM-style replacement or direct installation component for industrial fixtures, jigs, and machine assemblies requiring a 1/2-13 threaded stud clamping handle.

Installation Notes

Installation is performed by hand or with standard hand tools into a pre-tapped 1/2-13 hole. De-energize and lock out all equipment before installing or repositioning handles on powered machinery, per applicable OSHA lockout/tagout procedures. Verify thread engagement depth is sufficient for the load requirements of the assembly. Do not exceed the clamping force rating of the mating threaded insert or fixture material.
