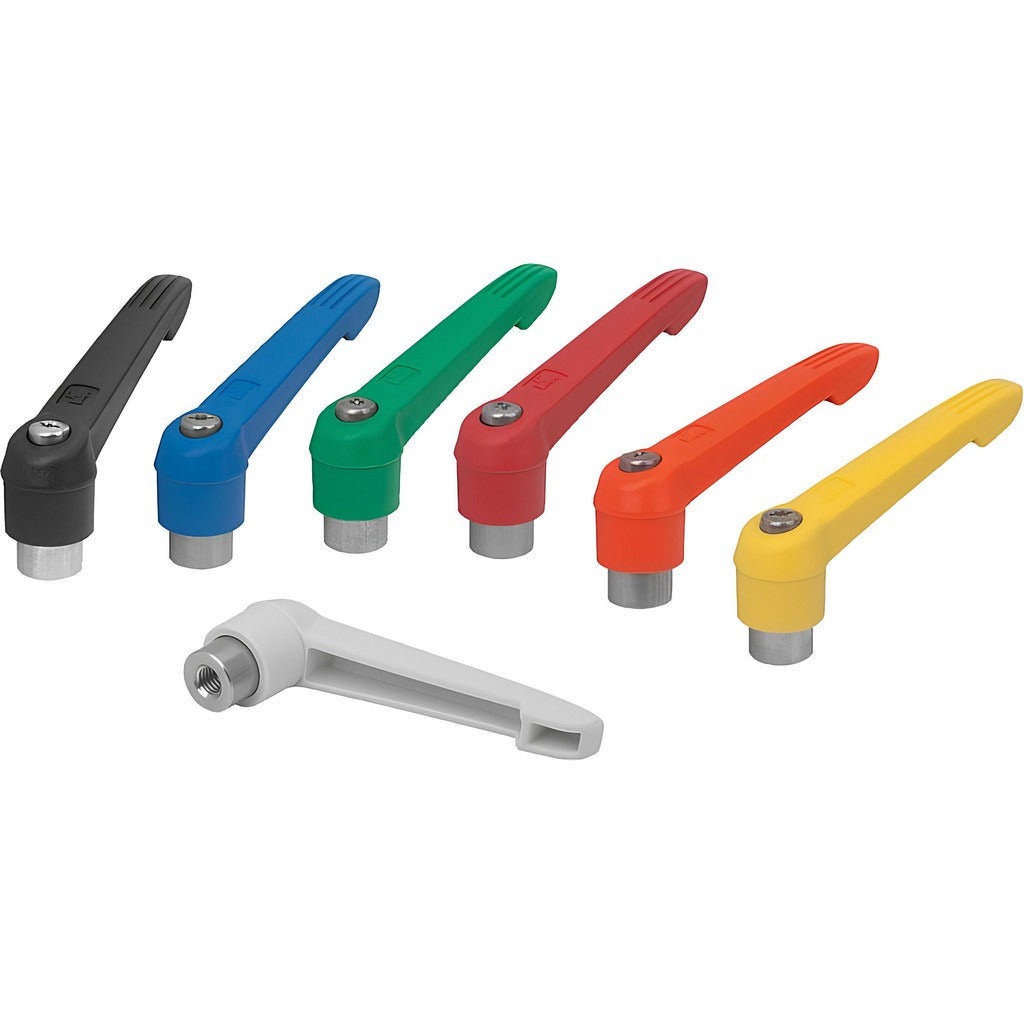

Kipp K0270.3101X50 Adjustable Clamping Handle M10x1.5

Product Description

The KIPP K0270.3101X50 is a metric threaded stud adjustable clamping handle designed for secure, repeatable hand-tightening in industrial and machine tooling applications. The handle body is constructed from fiberglass-reinforced plastic and features stainless steel stud and internal components rated to AISI 303. The stud thread is M10x1.5 with a 50 mm threaded length, and the overall handle length measures 80 mm. The arm is positioned at a 20-degree angle, giving the handle a modern low-profile geometry that clears obstructions in tight fixture setups. Weight is 0.19 pounds. This handle is installed by machine builders, tool and die technicians, and maintenance mechanics on jigs, fixtures, and mechanical assemblies requiring frequent manual adjustment.

This adjustable clamping handle is suited for use on production machinery, fixture plates, enclosure latching mechanisms, and equipment access panels where hand-operable clamping is required. The fiberglass-reinforced body resists corrosion and performs in moderately wet or chemically exposed environments. The stainless steel stud and components provide additional durability where mild acid exposure or washdown conditions are present. No special tools are required for operator use, making it well suited to quick-change tooling or adjustment-heavy production lines.

Key Features

• M10x1.5 threaded stud with 50 mm threaded length for direct installation into tapped bores
• Fiberglass-reinforced plastic handle body for corrosion resistance and dimensional stability
• Stainless steel components finished bright, material specification AISI 303
• 20-degree handle arm angle for clearance in confined mounting areas
• 80 mm handle length provides sufficient torque leverage for hand-tightening applications
• Hub diameter of 21.5 mm and overall height of 53.5 mm for compact fitment

Compatibility

Designed as an OEM-style or aftermarket replacement adjustable clamping handle for machinery, fixtures, and equipment using M10x1.5 threaded mounting points.

Installation Notes

Installation is performed by machine builders or maintenance mechanics. Thread the stud into the target tapped bore by hand and snug with an appropriate wrench on the stud flats if access permits. Verify thread engagement depth meets the requirements of the host assembly before applying clamping load. Inspect the handle arm and stud for wear or damage during routine maintenance intervals.
