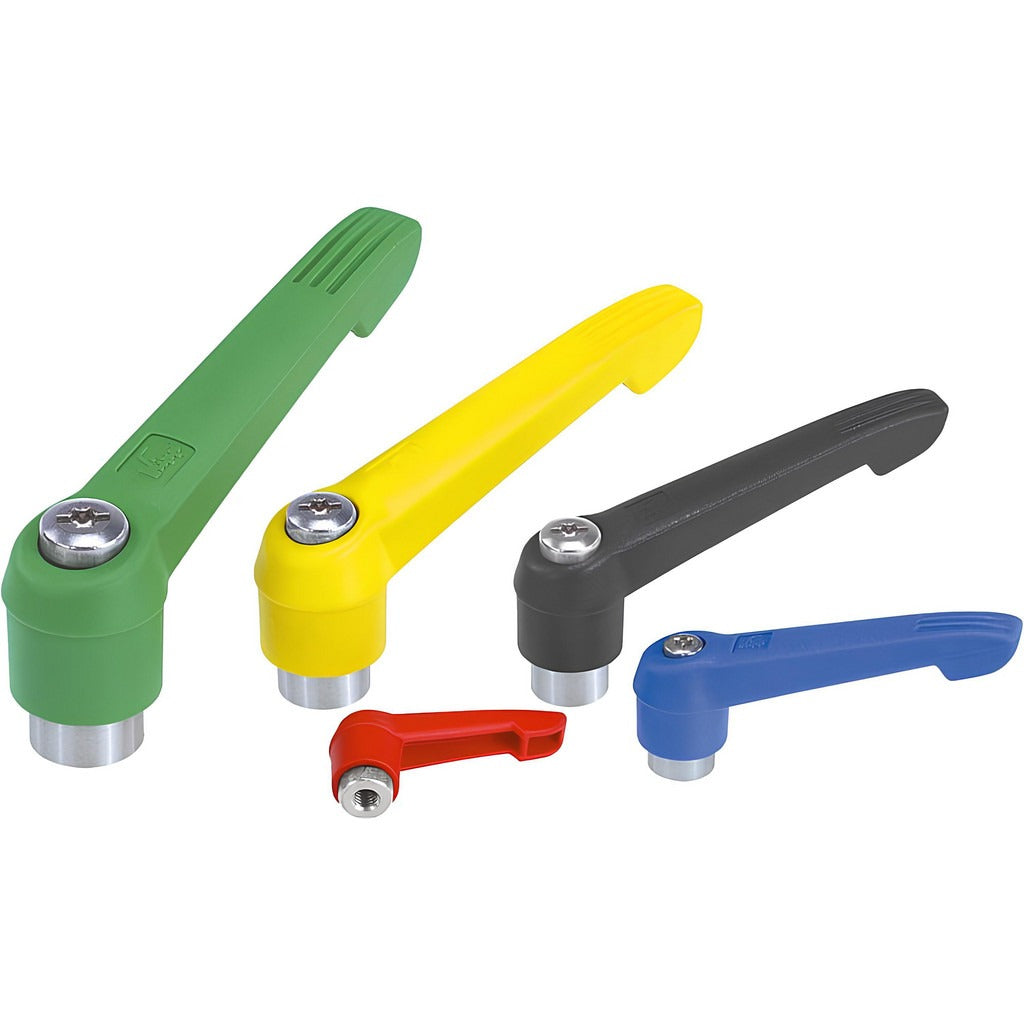

Kipp K0270.1A21X20 Adjustable Clamping Handle 1/4-20

Product Description

The KIPP K0270.1A21X20 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping and positioning in industrial and mechanical assemblies. The handle body is molded from fiberglass-reinforced plastic with a modern arm design set at a 20-degree angle, providing a firm grip in tight spaces. The stud is stainless steel (AISI 303) with a bright finish, offering corrosion resistance in demanding environments. Handle length is 1.5748 inches and overall height is 1.3189 inches. Installers in manufacturing, tooling, machine building, and trade fabrication use these handles where repeatable hand-tightened clamping is required.

This clamping handle is suited for use in light to medium-duty clamping applications across industrial machinery, jigs, fixtures, and equipment panels. The 1/4-20 threaded stud with a 0.7874-inch threaded length allows direct engagement with standard tapped holes. The compact hub diameter of 0.51 inches and body diameter of 0.5118 inches make it practical for installations with limited clearance. The black fiberglass-reinforced plastic body resists common shop chemicals and mechanical stress. This handle is compliant with REACH and RoHS standards, making it suitable for use in regulated industrial environments.

Key Features

• 1/4-20 threaded stud for direct installation into standard tapped holes
• Fiberglass-reinforced plastic handle body - chemically resistant and lightweight
• AISI 303 stainless steel stud with bright finish for corrosion resistance
• 20-degree handle arm angle for ergonomic hand-tightening in confined spaces
• REACH and RoHS compliant for use in regulated industrial applications
• Compact profile: 0.51-inch hub diameter, 1.5748-inch handle length

Compatibility

Designed as a direct-fit adjustable clamping handle for any assembly or fixture with a standard 1/4-20 tapped hole requiring hand-operated clamping or positioning.

Installation Notes

Installation is performed by threading the stud directly into a pre-tapped 1/4-20 hole by hand. Verify thread engagement depth is appropriate for the application before applying clamping load. Do not use power tools to drive or remove the handle, as this may damage the plastic body or strip the stud threads. Ensure the mating surface and thread are clean and free of debris before installation.
