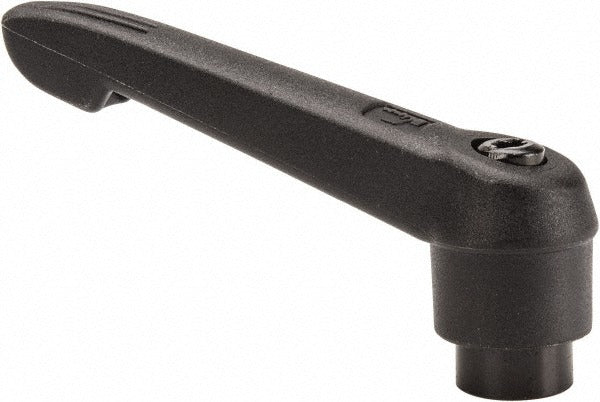

Kipp K0269.2081 Adjustable Clamping Handle M8x1.25

Product Description

The KIPP K0269.2081 is an adjustable tension lever clamping handle designed for threaded-hole mounting applications in industrial, mechanical, and trade equipment. It features an M8x1.25 threaded connection, an 18 mm hub diameter, and a fiberglass-reinforced plastic handle arm that keeps weight low while maintaining structural integrity. The steel body components carry a Grade 5.8 material specification and a black oxide finish. With a handle radius length of 65 mm and a 20-degree arm angle, the lever provides controlled clamping force with ergonomic positioning. Licensed technicians and mechanical assemblers working on jigs, fixtures, and adjustable machine components will encounter this handle type regularly.

The K0269.2081 is suited for use on machine tools, fixtures, clamping assemblies, and adjustable equipment mounts in both light industrial and commercial settings. The threaded-hole connection type allows direct engagement onto M8x1.25 threaded studs or bolts. The modern arm style and black oxide hardware finish make it appropriate for visible panel or frame installations. Package quantity is 1 unit.

Key Features

• M8x1.25 threaded hole connection with 12 mm threaded engagement depth and 18.5 mm hole depth
• Fiberglass-reinforced plastic handle arm for reduced weight and corrosion resistance
• Steel body and base components with Grade 5.8 material specification
• Black oxide hardware finish on steel components
• 20-degree handle arm angle for ergonomic lever positioning
• REACH Compliant and RoHS Compliant

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for equipment and assemblies using M8x1.25 threaded-hole mounting hardware in industrial and mechanical applications.

Installation Notes

Installation is performed by mechanical assemblers or maintenance technicians. Ensure the mating threaded stud or bolt is M8x1.25 and that the engaged thread length matches the 12 mm threaded depth of this handle. De-energize or lock out any equipment before installing or removing clamping handles on operating machinery. Do not exceed the rated clamping torque for Grade 5.8 hardware as marked in the equipment manufacturer documentation.
