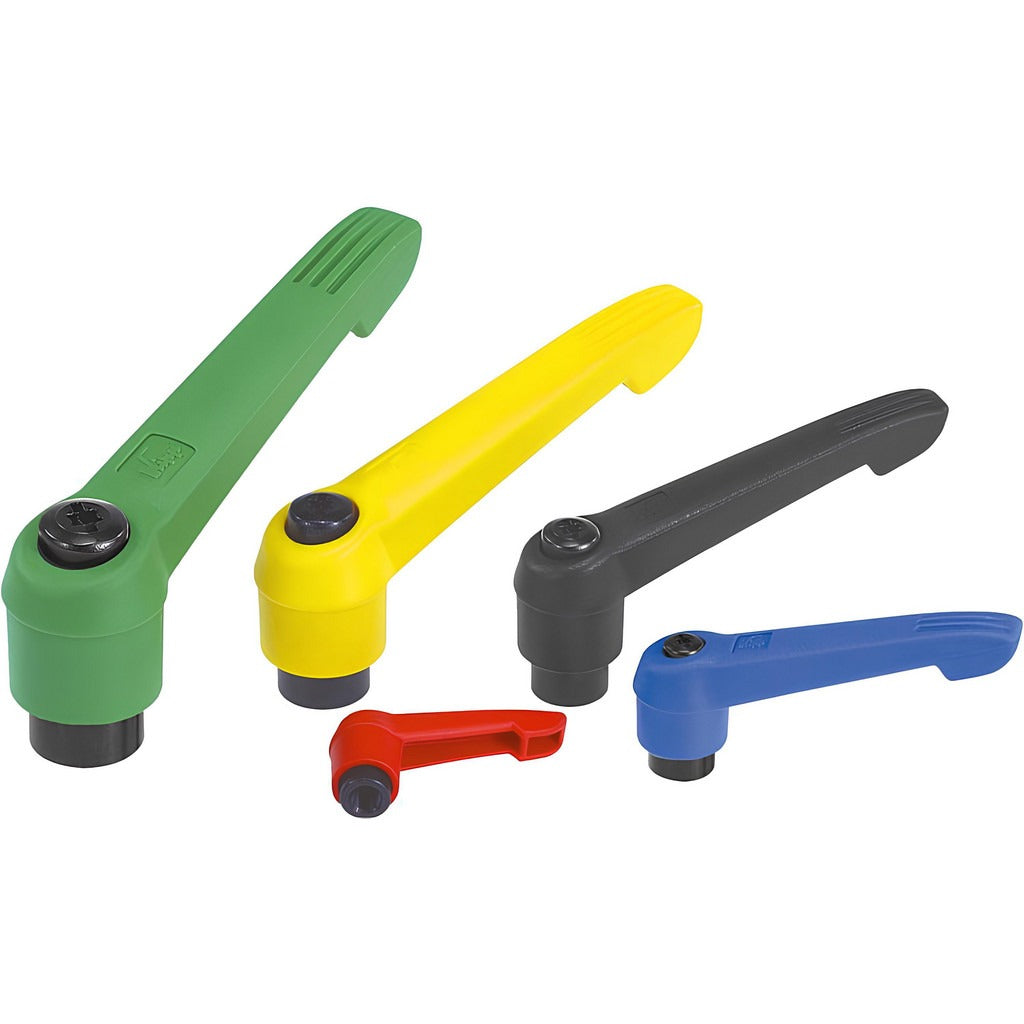

Kipp K0269.1A21X15 Adjustable Clamping Handle 1/4-20

Product Description

The KIPP K0269.1A21X15 is a threaded stud adjustable clamping handle designed for secure, tool-free clamping and positioning applications in industrial and mechanical assemblies. Built with a fiberglass-reinforced plastic handle body and a steel threaded stud finished in black oxide, this handle delivers reliable grip and corrosion resistance in demanding environments. The handle arm sits at a 20-degree angle with a 1.5748-inch radius length, giving the operator a comfortable swing path in tight spaces. Weighing just 0.04 pounds, it is a lightweight yet durable fastening component suited for machine builders, fixture assemblers, and maintenance technicians working across a wide range of equipment.

This adjustable clamping handle is used in industrial machinery, jigs, fixtures, and clamping assemblies where frequent hand-adjustment is required without the use of a wrench. The 1/4-20 threaded stud connection makes it straightforward to thread into standard tapped holes on machine frames, panels, or tooling plates. Its compact overall height of 1.3189 inches and body diameter of 0.5118 inches suit applications with limited clearance. The modern-design arm style and black finish make it appropriate for both functional industrial use and cleaner equipment panel assemblies. It meets REACH and RoHS compliance standards, making it suitable for environmentally regulated applications.

Key Features

• 1/4-20 threaded stud mount for direct installation into standard tapped holes
• Fiberglass-reinforced plastic handle body for lightweight strength and chemical resistance
• Steel stud with black oxide finish for corrosion resistance
• 20-degree handle arm angle for improved ergonomics in confined spaces
• REACH and RoHS compliant for use in environmentally regulated environments
• Compact form factor with 0.51-inch hub diameter and 0.5906-inch stud length

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial machinery, fixtures, and equipment assemblies that use 1/4-20 threaded stud clamping handles.

Installation Notes

Installation is performed by threading the stud directly into a pre-tapped 1/4-20 hole by hand. De-energize or lock out any equipment before servicing or replacing clamping hardware on active machinery. Verify thread engagement depth against the 0.5906-inch stud length to ensure adequate holding strength. No special tools are required for standard installation, though thread condition of the mating hole should be confirmed before assembly.
