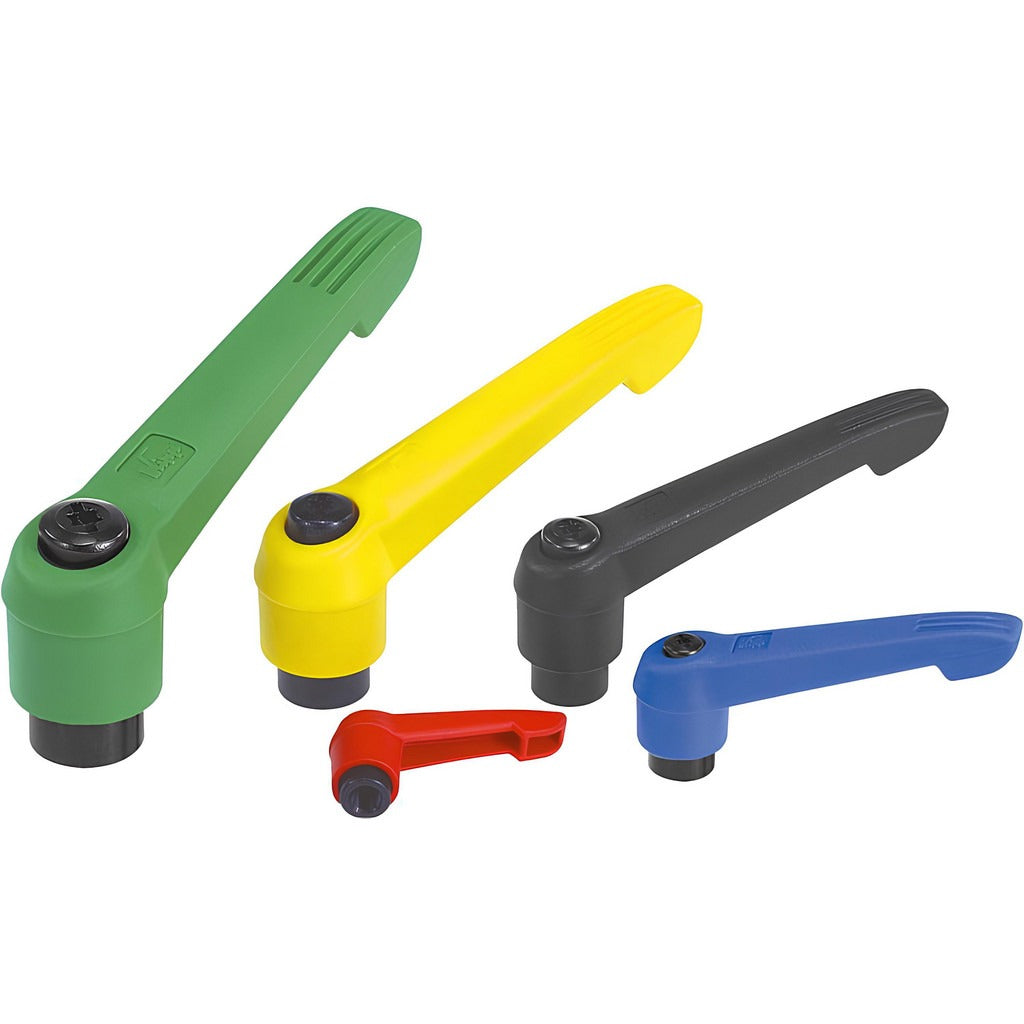

Kipp K0269.1A01 Clamping Handle 10-24 Thread Frp

Product Description

The KIPP K0269.1A01 is an adjustable tension lever clamping handle designed for threaded-hole mounting applications. It features a 10-24 threaded connection and a fiberglass-reinforced plastic (FRP) handle arm measuring 1.5748 inches in length with a modern low-profile design. The steel internal components are finished in black oxide, providing corrosion resistance in light industrial and mechanical assembly environments. At 0.03 pounds, this lightweight handle suits applications where repeated manual adjustment is required. Machinists, assembly technicians, and equipment maintenance professionals install this type of handle on fixtures, jigs, panels, and machine guards where tool-free clamping and release is needed.

This clamping handle is suited for use in light industrial, manufacturing, and mechanical assembly settings. It mounts via a threaded hole interface using a standard 10-24 thread. The 20-degree handle arm angle and 0.51-inch hub diameter are typical of compact panel and fixture hardware. The black color finish is consistent with industrial machine aesthetics. This handle is appropriate for both OEM equipment builds and maintenance replacement on existing hardware assemblies.

Key Features

• 10-24 threaded hole connection for direct mount to standard fastener patterns
• Fiberglass-reinforced plastic handle arm for lightweight, non-conductive grip
• Steel internal components with black oxide finish for corrosion resistance
• 20-degree handle arm angle for ergonomic operation in tight clearance areas
• REACH and RoHS compliant for use in regulated equipment builds
• Hub diameter of 0.51 inches with 0.5118-inch hole depth for secure seating

Compatibility

Designed as an OEM-style replacement or new-install clamping handle for fixtures, jigs, machine guards, and panels requiring a 10-24 threaded hole mount with an adjustable lever-style grip.

Installation Notes

Installation is performed by maintenance technicians or assembly personnel. Power down or de-energize any associated equipment before servicing fasteners on machine panels or guards. Thread engagement should be verified against the 0.3543-inch threaded length to ensure secure mounting without bottoming out. Do not exceed the manual clamping torque appropriate for Grade 5.8 steel hardware as specified by the equipment manufacturer.
