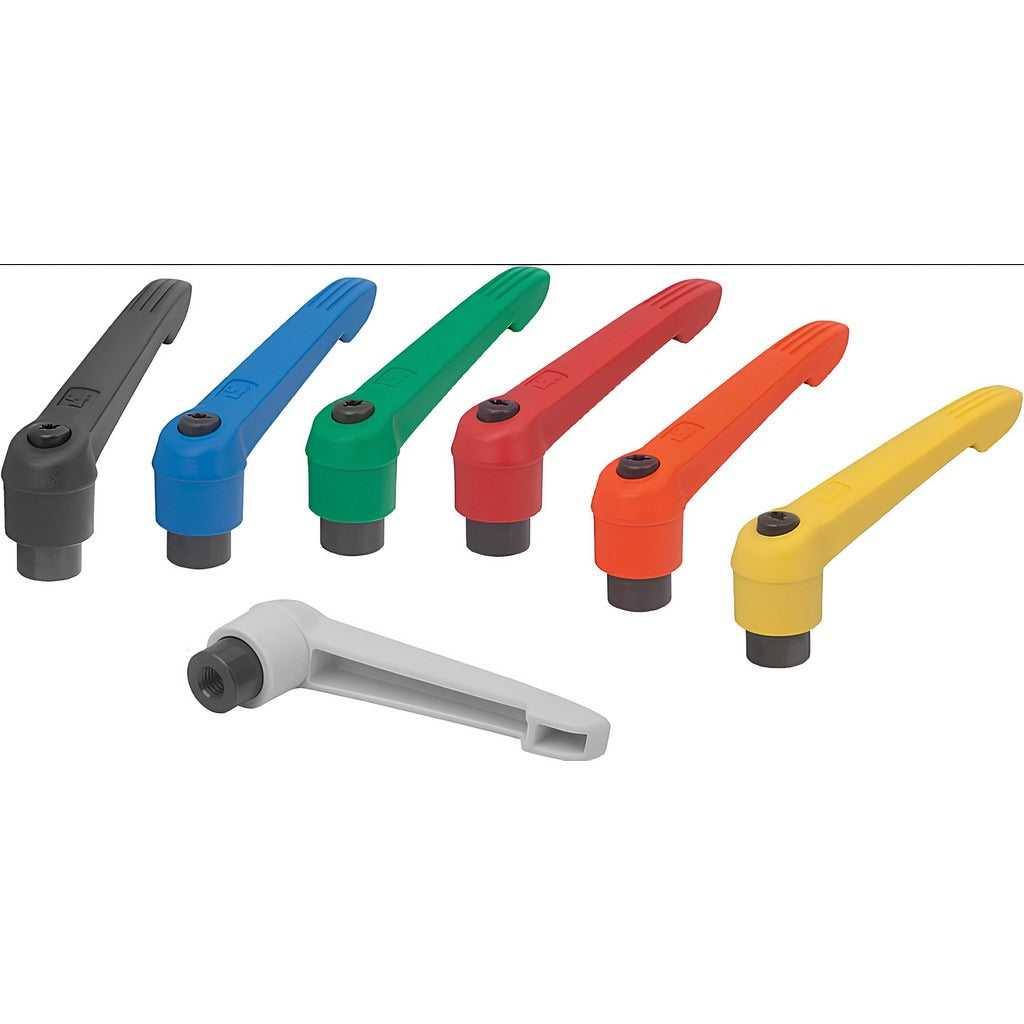

Kipp K0269.1061X30 Adjustable Clamping Handle M6x1

Product Description

The KIPP K0269.1061X30 is an adjustable clamping handle with a threaded stud mount, designed for use on industrial machinery, fixtures, and equipment requiring tool-free manual adjustment and secure locking. The handle body is molded from fiberglass-reinforced plastic in black, providing a firm, chemical-resistant grip. The stud is steel with a black oxide finish, threaded M6x1.00 over a 30 mm threaded length. The hub diameter is 13 mm and the handle arm extends 40 mm in radius. The arm is set at a 20-degree angle, which provides clearance in tight panel and enclosure installations. Typical installers include machine builders, millwrights, and industrial maintenance technicians.

This handle is suited for light-duty clamping and positioning applications on machine guarding, jigs, fixtures, enclosure panels, and equipment covers in both industrial and commercial settings. The M6x1.00 threaded stud allows direct installation into standard M6 threaded inserts or nuts. The compact body profile - 13 mm body diameter and 9 mm body height - fits installations where panel space is limited. The modern-style arm and low-profile base make this a practical choice for new builds and replacement on existing assemblies.

Key Features

• Fiberglass-reinforced plastic handle body resists chemicals and provides a secure grip
• M6x1.00 threaded steel stud with 30 mm threaded length for direct hardware installation
• 20-degree handle arm angle improves clearance in confined mounting areas
• Black oxide finish on steel components for corrosion resistance
• REACH and RoHS compliant for use in regulated environments
• Compact body: 13 mm body diameter, 9 mm body height, 10 mm base diameter

Compatibility

Designed as a direct-install adjustable clamping handle for any application with a standard M6x1.00 threaded insert or mounting point.

Installation Notes

Installation is performed by threading the stud directly into a prepared M6x1.00 threaded hole or insert by hand. De-energize or lock out any machine before installing or replacing clamping handles on live equipment. Use appropriate thread-locking compound if the assembly is subject to vibration. Verify stud engagement depth is sufficient for the application load before returning equipment to service.
