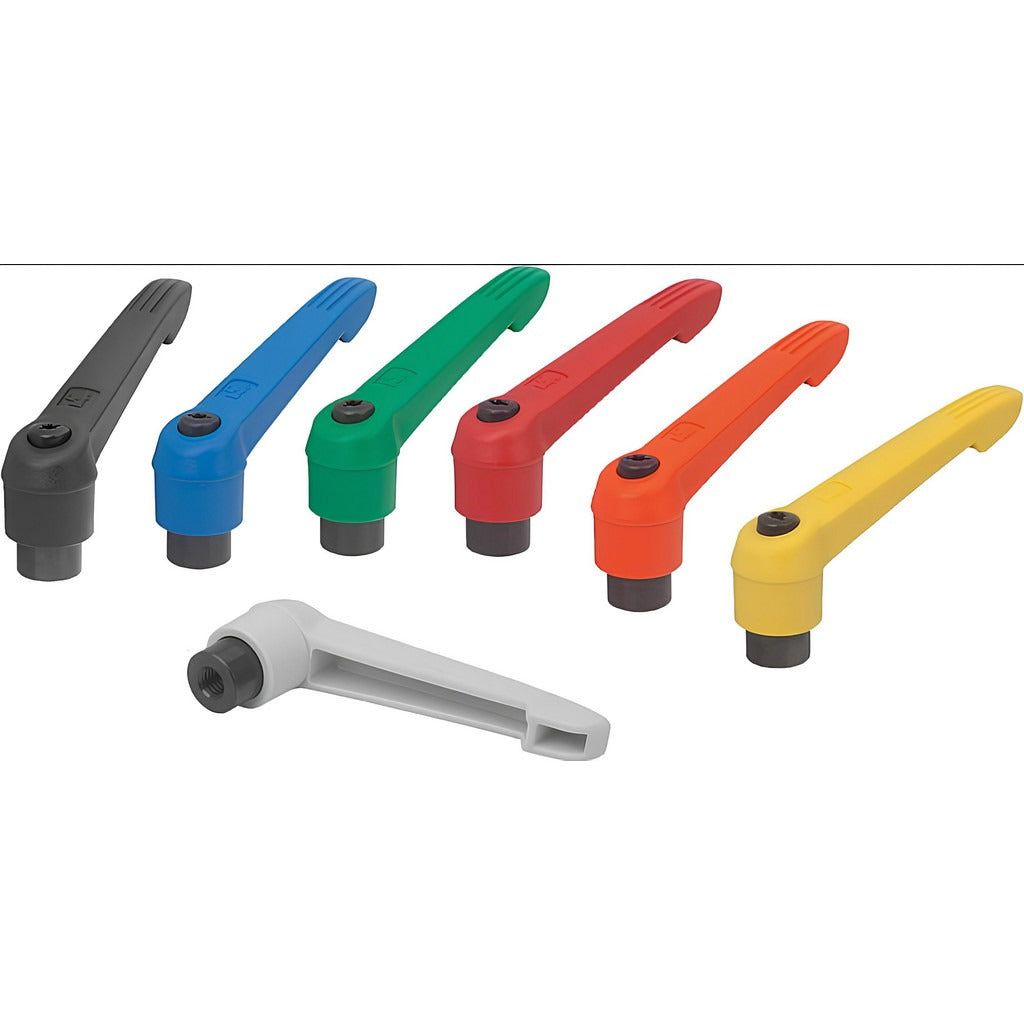

Kipp K0269.1061X15 Adjustable Clamping Handle M6x1.00

Product Description

The KIPP K0269.1061X15 is a threaded stud adjustable clamping handle designed for secure manual clamping and locking on machine tools, fixtures, and industrial equipment. The handle body is molded from fiberglass-reinforced plastic with a black finish, delivering a firm grip while resisting impact and chemical exposure in shop environments. The steel stud is M6 x 1.00 thread with a 15 mm threaded length, finished in black oxide to resist corrosion. The handle arm measures 40 mm in length and pivots on a 20-degree arm angle, allowing the handle to be repositioned for ergonomic operation in tight access areas. Installed by machinists, maintenance technicians, and equipment builders during machine assembly or service.

This clamping handle is suited for use on machine tool tables, jigs, fixtures, enclosures, and industrial panels where frequent manual adjustment is required. The M6 threaded stud mounts directly into a tapped hole, making it a direct-fit hardware component for light to medium clamping applications. The 13 mm hub diameter and 10 mm base diameter keep the footprint compact. This handle is appropriate for both OEM manufacturing assembly and MRO replacement on existing equipment. REACH Compliant and RoHS Compliant ratings make it suitable for projects with environmental compliance requirements.

Key Features

• Fiberglass-reinforced plastic handle body resists impact and common shop chemicals
• M6 x 1.00 steel threaded stud with 15 mm threaded length and black oxide finish
• 40 mm handle arm length with 20-degree arm angle for repositionable ergonomic grip
• Compact 13 mm hub diameter and 9 mm body height for use in space-constrained applications
• Steel components rated to Grade 5.8 material specification
• REACH Compliant and RoHS Compliant

Compatibility

Designed as an OEM-style replacement or new-installation clamping handle for machine tools, fixtures, enclosures, and industrial equipment using M6 x 1.00 threaded mounting points.

Installation Notes

Installation requires a tapped M6 x 1.00 hole in the mounting surface. Thread the stud in by hand first, then tighten to the equipment manufacturer's specified torque using an appropriate wrench on the stud base - do not apply torque through the handle body. Ensure the mounting surface is clean and free of burrs before installation. Depressurize or de-energize any system before accessing the equipment panel or fixture being serviced.
