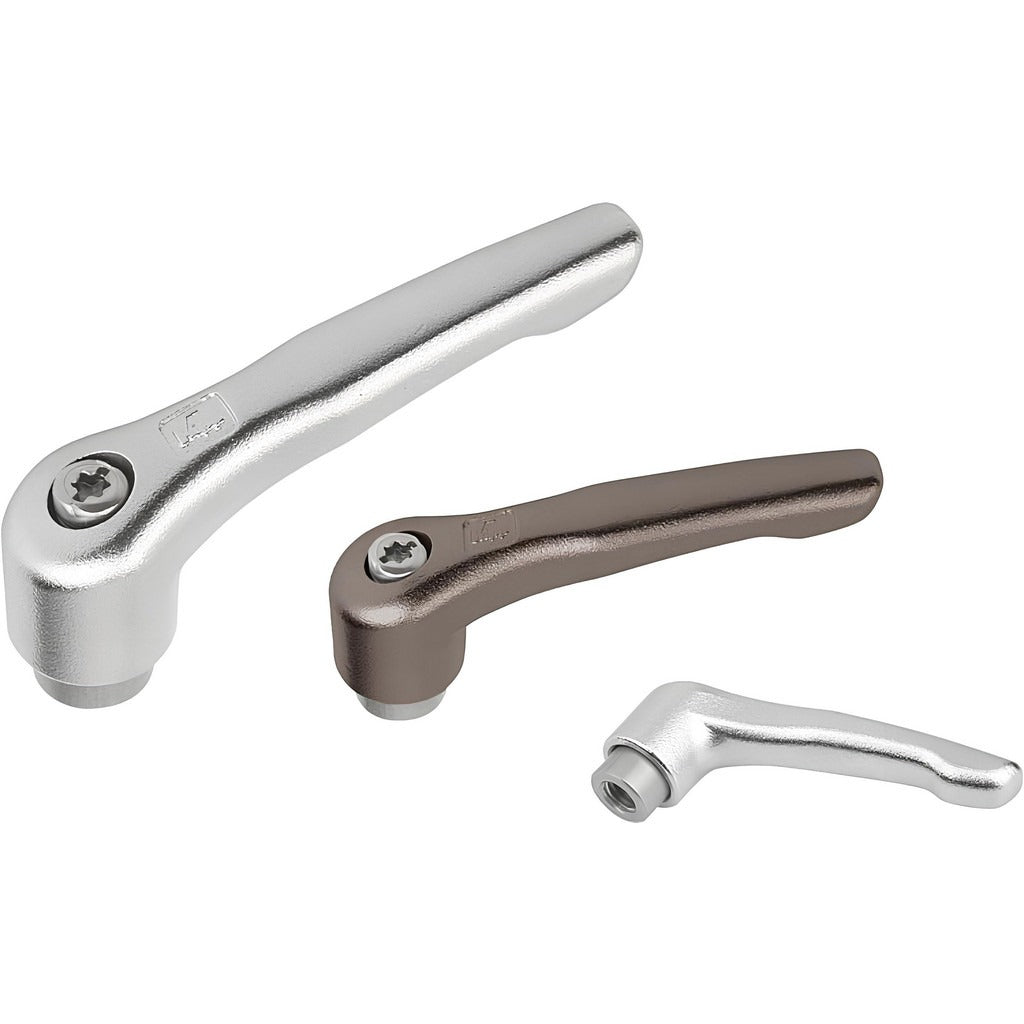

Kipp K0124.208X60 Adjustable Clamping Handle M8x1.25

Product Description

The KIPP K0124.208X60 is a threaded stud adjustable clamping handle constructed entirely from stainless steel, designed for secure tool-free clamping and positioning in industrial and mechanical applications. The handle body and stud are made from AISI 316 and AISI 303 stainless steel, providing corrosion resistance in demanding environments. It features an overall length of 2.93 inches, a stud length of 2.36 inches with an M8x1.25 thread, and a hub diameter of 17/32 inches. The electrolytic-polished handle arm sits at a 20-degree angle for ergonomic operation. This type of handle is typically installed by maintenance technicians, machine builders, and mechanical assemblers working on fixtures, jigs, and industrial equipment.

This adjustable clamping handle is suited for use on machine tools, workholding fixtures, enclosures, and precision mechanical assemblies where repeatable hand-tightened clamping is required. The threaded stud mount allows direct engagement with tapped holes or mating threaded components. Its stainless steel construction makes it appropriate for food processing, washdown, and other corrosive-environment applications where carbon steel hardware is not acceptable.

Key Features

• Full stainless steel construction - body, stud, and components - in AISI 316 and AISI 303 grades
• M8x1.25 threaded stud with 2.36-inch stud length for direct engagement with tapped holes
• Electrolytic polished handle arm with modern design at 20-degree arm angle for ergonomic grip
• Bright finish on components for corrosion resistance and clean appearance in sensitive environments
• Compact form factor: 2.93 inches overall length, 1.79 inches handle height, 17/32-inch hub diameter
• Weighs 0.28 pounds - lightweight without sacrificing rigidity

Compatibility

Designed as an OEM-style and aftermarket replacement or new-installation clamping handle for equipment with M8x1.25 tapped mounting points requiring a threaded stud adjustable handle.

Installation Notes

Installation requires a tapped M8x1.25 hole in the mating component. Thread engagement depth should be verified against the 2.36-inch stud length to ensure adequate hold without bottoming out. No power shutdown is required for most fixture and jig installations, but de-energize and lockout any machinery before servicing moving or clamped components. Follow applicable machine safety standards for your application.
