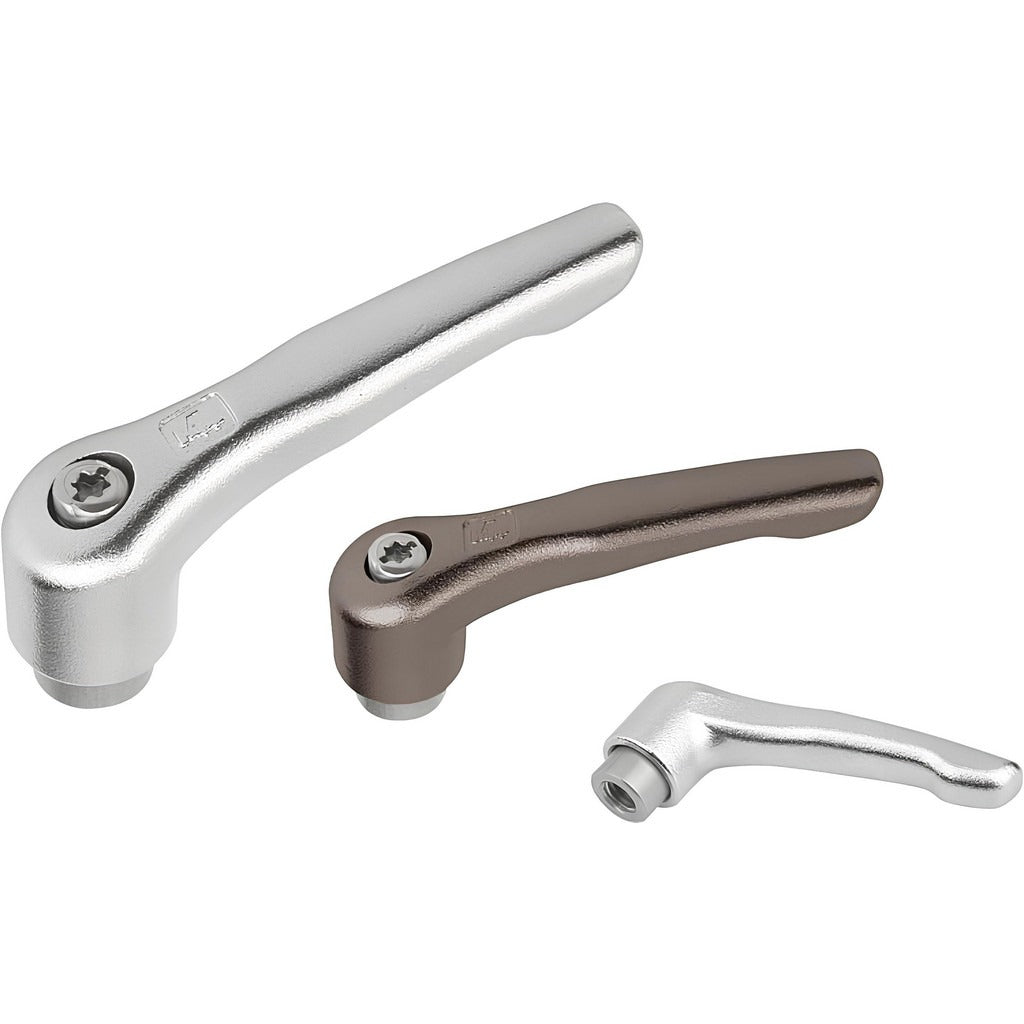

Kipp K0124.1A0X10 Adjustable Clamping Handle 10-24

Product Description

The KIPP K0124.1A0X10 is a threaded stud adjustable clamping handle machined from stainless steel and designed for secure, tool-free clamping in industrial and mechanical assemblies. The handle accepts a 10-24 threaded stud and features a modern-design arm set at a 20-degree angle, allowing repositioning to clear obstructions or optimize grip angle during operation. Overall handle length is 1.5748 inches and overall height is 1.3386 inches. The body and stud are both stainless steel conforming to AISI 316 and AISI 303 material specifications, making this handle suitable for corrosion-sensitive environments. The electrolytic polish finish provides a bright, clean surface. Machinists, equipment assemblers, and maintenance technicians install this type of handle.

This adjustable clamping handle is used in light industrial, manufacturing, and mechanical fixture applications where a compact, adjustable grip point is needed on threaded assemblies. The 10-24 thread size is common in precision instrument panels, jigs, fixtures, and enclosure hardware. The stainless steel construction and bright electrolytic polish finish make it appropriate for washdown-tolerant or cleanroom-adjacent environments where corrosion resistance matters. The small hub diameter of 0.55 inches suits confined mounting areas where clearance is limited.

Key Features

• Adjustable arm at 20-degree angle for repositionable grip without tools
• 10-24 threaded stud mount with 0.3937-inch stud length
• Stainless steel body and stud conforming to AISI 316 and AISI 303 specifications
• Electrolytic polish finish for corrosion resistance and clean appearance
• Compact 0.55-inch hub diameter suitable for tight clearance applications
• Modern-design arm style with bright silver color

Compatibility

Designed as a direct-mount clamping handle for assemblies using a 10-24 threaded stud interface. Suitable for use in jigs, fixtures, instrument enclosures, and mechanical panels requiring a compact adjustable handle at this thread size.

Installation Notes

Installation is performed by threading the stud into a pre-tapped 10-24 hole in the mating component. Ensure the receiving thread is clean and free of debris before engagement. The adjustable arm can be repositioned by loosening and re-clamping to the desired angle. No special tools are required for normal operation, though thread engagement depth should be verified to meet the assembly's structural requirements.
