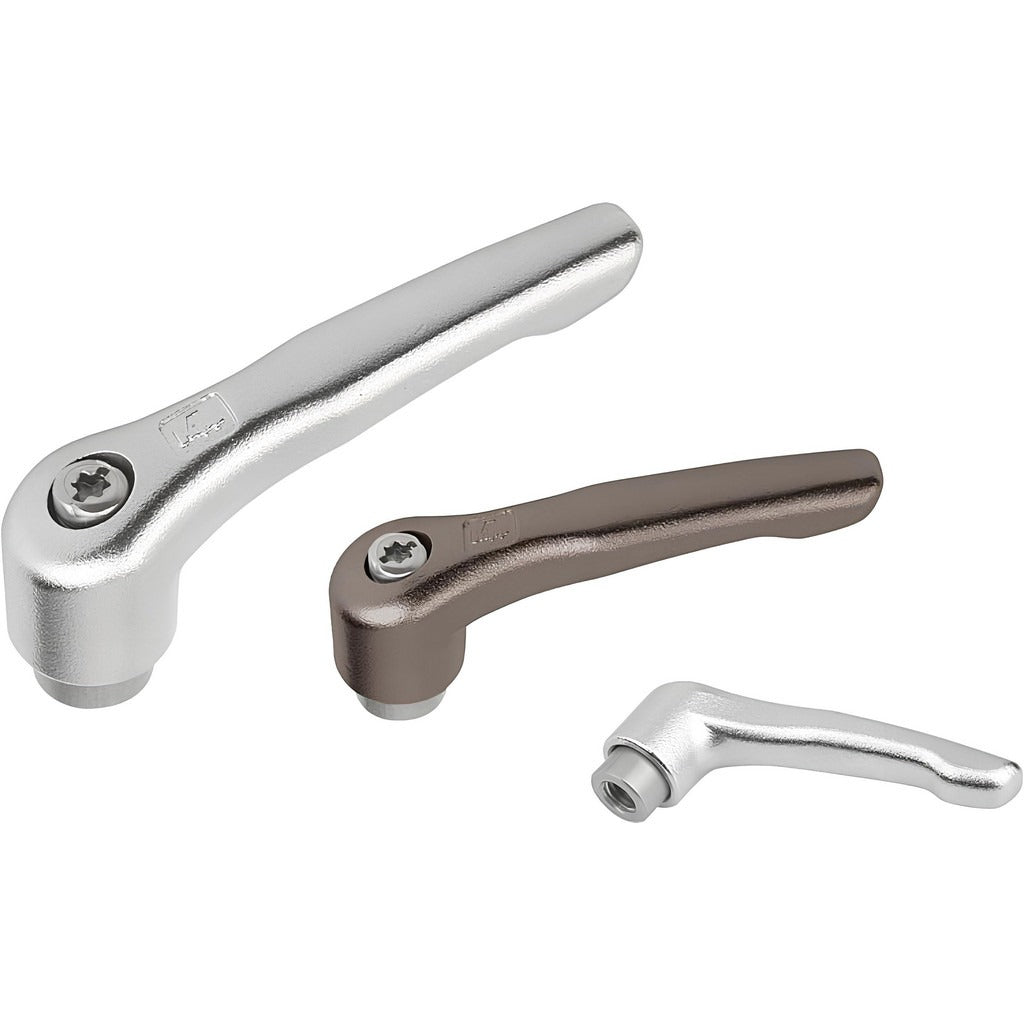

Kipp K0124.105X15 Adjustable Clamping Handle M5x0.8

Product Description

The KIPP K0124.105X15 is a female threaded insert adjustable clamping handle designed for secure manual fastening in industrial and mechanical assemblies. Built from AISI 316 and AISI 303 stainless steel with an electrolytic polished finish, this handle delivers corrosion resistance suitable for demanding environments. It accepts an M5x0.8 threaded stud with a 15 mm threaded stud length, and the handle arm spans 40 mm in radius length. The overall length is 1.85 inches and the hub diameter is 10 mm. This part is installed by machine builders, maintenance technicians, and mechanical assemblers who need a reliable, tool-free or tool-assisted clamping solution.

The K0124.105X15 is suited for use in light industrial machinery, jigs, fixtures, enclosures, and equipment panels where frequent manual adjustment is required. Its modern-design handle arm at a 20-degree angle allows ergonomic operation in confined or repetitive-adjustment applications. The silver, bright-finished stainless steel body makes it appropriate for clean environments, food-adjacent equipment, and corrosive-exposure scenarios where carbon steel hardware is not acceptable.

Key Features

• M5x0.8 female threaded insert with 15 mm stud length for secure engagement
• AISI 316 and AISI 303 stainless steel construction throughout handle and stud
• Electrolytic polished handle finish resists corrosion and simplifies cleaning
• Modern-design handle arm at 20-degree angle for ergonomic manual adjustment
• REACH Compliant and RoHS Compliant for regulated and export applications
• Compact 10 mm hub diameter and 13 mm body diameter for tight installation spaces

Compatibility

Designed as an OEM-style replacement or upgrade clamping handle for industrial machinery, fixtures, and equipment panels requiring an M5x0.8 female threaded insert mount with a 10 mm hub diameter.

Installation Notes

Installation is performed by mechanical assemblers or maintenance technicians using standard hand tools. Ensure the mating threaded post or stud matches the M5x0.8 thread specification before installation to avoid cross-threading or stripping. De-energize and lock out any associated equipment before servicing or replacing clamping hardware on active machinery. Do not exceed the torque limits specified by the equipment manufacturer for this thread size.
