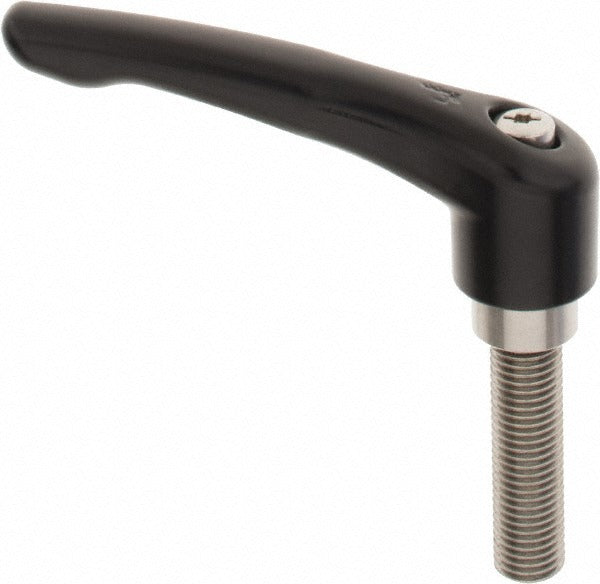

Kipp K0123.5161X60 Adjustable Clamping Handle M16x2

Product Description

The KIPP K0123.5161X60 is a metric threaded stud adjustable clamping handle designed for secure manual fastening in industrial machinery, fixtures, and equipment assemblies. The handle body is constructed from die cast zinc with a powder-coated black finish, while the threaded stud and hardware components are stainless steel, conforming to material specification DIN EN 12844. The M16x2 threaded stud extends 60 mm and provides a firm, vibration-resistant grip point. With an overall length of 110 mm and a modern ergonomic arm design set at a 20-degree angle, this handle delivers controlled clamping force across a wide range of adjustment positions. Machinists, fixture builders, and equipment maintenance technicians install these handles on clamping plates, machine guards, and adjustable stops.

This adjustable clamping handle is suited for use in light to medium industrial applications where frequent manual adjustment is required. Typical install scenarios include CNC fixture clamping, jig assembly, conveyor guarding, and industrial equipment panels. The threaded stud mount allows direct installation into tapped holes or through-holes with a corresponding nut. The 31 mm hub diameter and 23 mm base diameter make it compatible with standard clamping collars and mounting surfaces common in machine tool and automation environments.

Key Features

• M16x2 threaded stud with 60 mm stud length for direct tapped-hole installation
• Die cast zinc body with powder-coated black finish for corrosion resistance in industrial environments
• Stainless steel stud and hardware components, conforming to DIN EN 12844
• 20-degree handle arm angle for ergonomic grip and clearance in tight spaces
• 31 mm hub diameter and 110 mm handle length for consistent clamping leverage
• Bright-finished stainless components paired with a modern arm style for clean machine aesthetics

Compatibility

Designed as an OEM-style adjustable clamping handle for industrial fixtures, machine tools, and equipment assemblies requiring an M16x2 threaded stud mount.

Installation Notes

Installation is performed by machinists or equipment maintenance technicians using standard hand tools. Ensure the mating tapped hole or nut is properly aligned and the thread pitch matches M16x2 before engagement. De-energize and lock out any machinery before servicing or repositioning clamping handles on active equipment. Do not exceed the clamping load rating for the application or use the handle as a structural load-bearing component.
