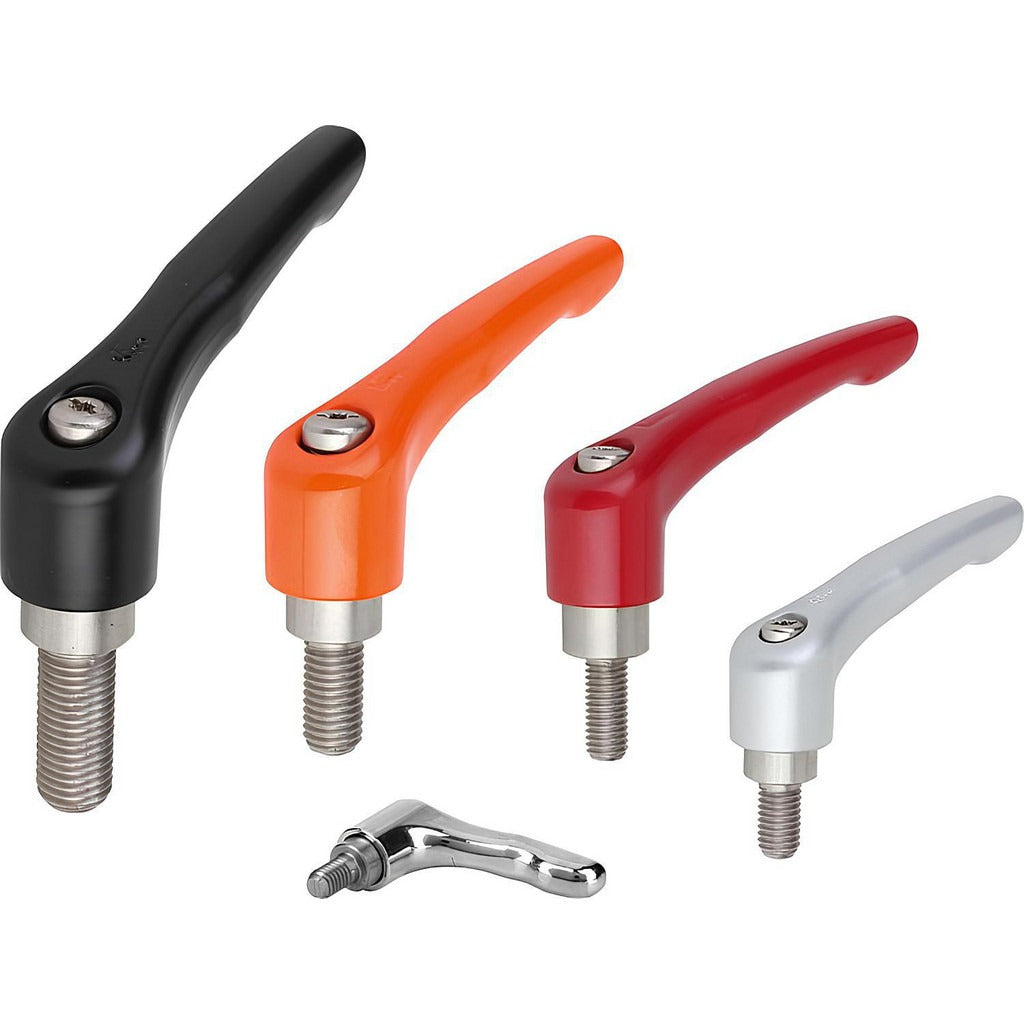

Kipp K0123.4121 Adjustable Clamping Handle M12 X 1.75

Product Description

The KIPP K0123.4121 is a threaded-hole adjustable clamping handle designed for secure, tool-free clamping in industrial and mechanical assembly applications. The handle body is die cast zinc with a powder-coated black finish, while the stainless steel components provide corrosion resistance at the connection interface. The M12 x 1.75 threaded hole provides a direct mount to compatible threaded studs or bolts. The hub diameter measures 27 mm and the handle arm extends 95 mm in radius length, giving the operator sufficient leverage for hand-tightening under load. The handle arm is set at a 20-degree angle for ergonomic access in tight mounting configurations.

This clamping handle is suited for machine tool fixtures, jigs, clamping stations, and general industrial equipment where repeatable manual positioning is required. The adjustable handle arm allows the grip to be repositioned to clear obstructions before tightening, making it practical in both production and maintenance environments. Licensed machine assemblers, millwrights, and industrial maintenance technicians are the primary installers. The black powder-coated finish reduces glare and provides a durable surface in shop environments.

Key Features

• M12 x 1.75 threaded hole for direct bolt or stud mounting
• Adjustable handle arm at 20-degree angle for clearance in confined installations
• Die cast zinc handle body with black powder-coat finish
• Stainless steel components with bright finish for corrosion resistance
• 27 mm hub diameter and 95 mm handle radius length for effective hand-tightening leverage
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as an OEM-style replacement or direct-fit handle for industrial fixtures and equipment using M12 x 1.75 threaded mounting studs or bolts.

Installation Notes

Installation requires no special tools beyond access to the threaded mounting stud. Disengage or de-energize any machine or clamping system before removing or installing the handle. Confirm the mating thread specification matches M12 x 1.75 before installation to avoid cross-threading. The adjustable arm should be set to its final operating position after the handle body is fully threaded onto the stud.
