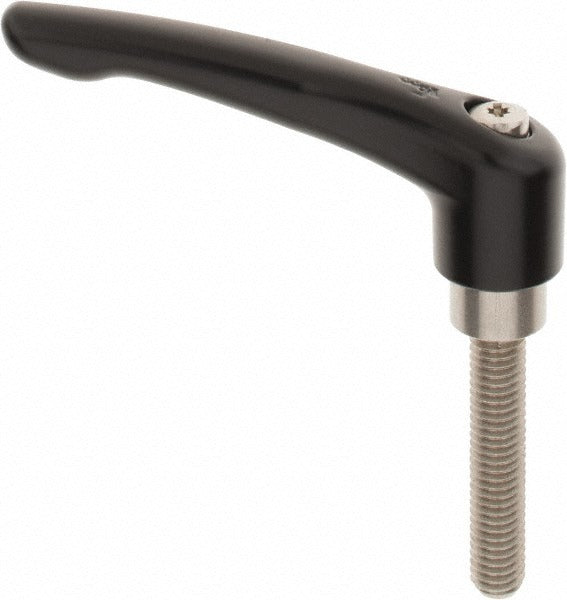

Kipp K0123.3A41X50 Adjustable Clamping Handle 3/8-16

Product Description

The KIPP K0123.3A41X50 is an adjustable clamping handle with a threaded stud mount, designed for tool-free clamping and quick-release applications on machinery, fixtures, and industrial equipment. The handle body is die cast zinc with a satin finish, and the stud and internal components are steel with a black oxide coating. The 3/8-16 threaded stud extends 1.97 inches, the hub diameter measures 0.83 inches, and the overall handle length is 3.15 inches. The 20-degree arm angle allows ergonomic grip in tight or awkward positions. Licensed tradespeople and machine builders use this handle where fast manual adjustment is required without separate tooling.

This clamping handle is suited for use in light industrial, manufacturing, and mechanical assembly environments. Common applications include machine tool fixtures, jigs, enclosure panels, and adjustment mechanisms on fabrication equipment. It is appropriate for both OEM assembly and aftermarket replacement on equipment using 3/8-16 threaded mounting points. The compact base diameter of 0.63 inches and body diameter of 0.83 inches allow installation in space-constrained mounting locations.

Key Features

• 3/8-16 threaded stud mount for direct installation into tapped holes or with a mating nut
• Die cast zinc body with satin finish resists corrosion in light-duty industrial environments
• Steel components with black oxide coating per DIN EN 12844 specification
• 20-degree handle arm angle for ergonomic grip and clearance in confined spaces
• 1.97-inch stud length accommodates standard panel and fixture thicknesses
• Tool-free adjustable design speeds up clamping and release cycles on frequently accessed equipment

Compatibility

Designed as an OEM-style replacement or direct upgrade for machinery and fixtures using 3/8-16 threaded stud clamping handles with a hub diameter of approximately 0.83 inches.

Installation Notes

Installation is performed by threading the stud directly into a tapped hole or securing it through a clearance hole with a mating nut. Ensure the mounting surface is clean and the thread engagement is sufficient for the applied clamping load before use. Always de-energize or lock out the equipment before replacing or adjusting clamping hardware on active machinery. Follow applicable machinery safety standards for your application.
