Kipp K0123.3A41X20 Adjustable Clamping Handle 3/8-16

Product Description

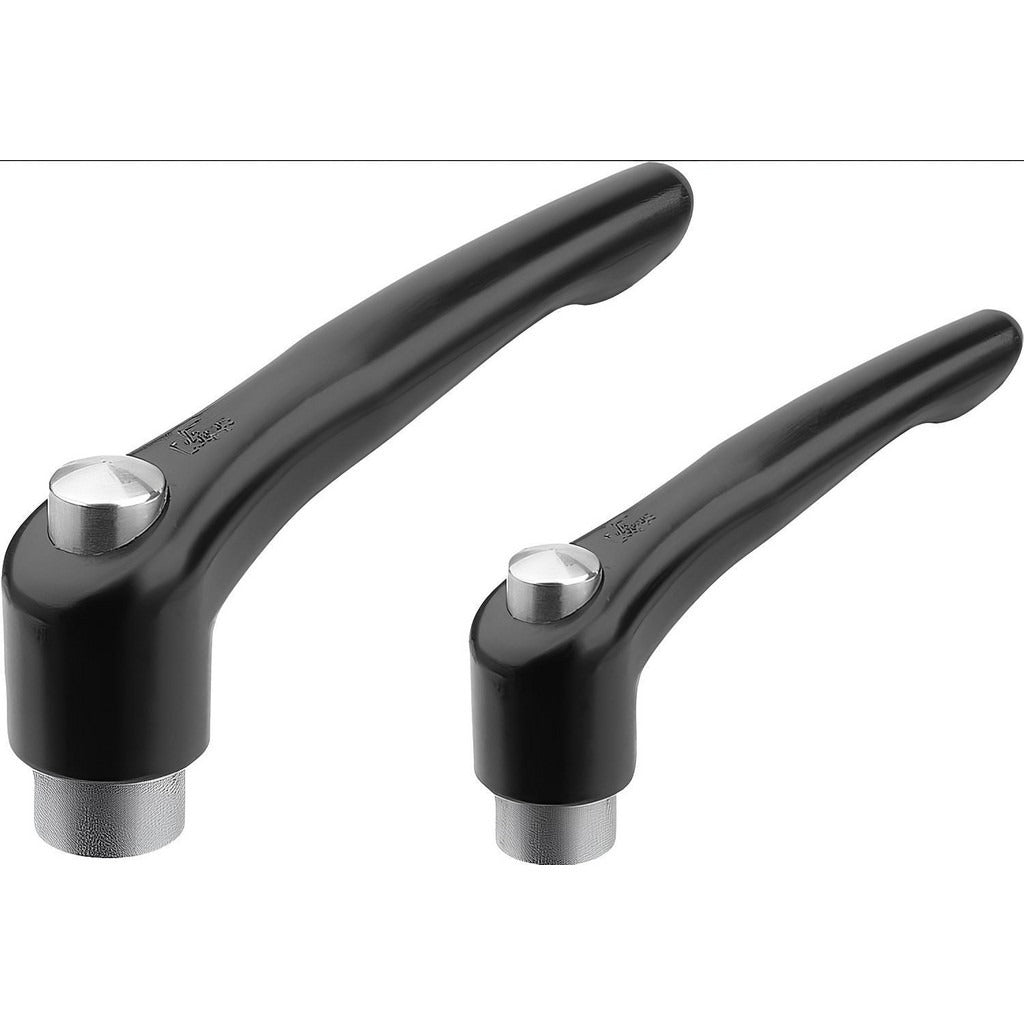

The KIPP K0123.3A41X20 is an adjustable clamping handle with a threaded stud mount designed for secure, tool-free clamping and locking applications on machinery, fixtures, and industrial equipment. The handle body is die cast zinc with a satin finish and measures 3.15 inches in handle length and 2.30 inches in overall height. The threaded stud is 3/8-16 with a 0.79-inch stud length, and steel components carry a black oxide finish. The hub diameter is 0.83 inches and the handle arm is positioned at a 20-degree angle for comfortable grip and repeatable positioning. Licensed tradespeople and equipment maintenance technicians typically install this style of handle during machine setup or retrofit work.

This adjustable clamping handle suits industrial machinery, jigs, fixtures, and trade equipment where operators need quick manual clamping without additional tooling. The 3/8-16 threaded stud integrates directly into tapped holes in machine frames, enclosures, guards, or adjustment mechanisms. The modern-design arm style and black oxide steel components make it appropriate for both light fabrication environments and maintenance applications where corrosion resistance is a factor.

Key Features

• 3/8-16 threaded stud mount for direct installation into standard tapped holes
• Die cast zinc body with satin finish for durability and a clean appearance
• Steel components with black oxide finish for corrosion resistance
• 20-degree handle arm angle for ergonomic grip and repeatable positioning
• 0.83-inch hub diameter and 3.15-inch handle radius for controlled clamping leverage
• Meets DIN EN 12844 material specification

Compatibility

Designed as an OEM-style or replacement adjustable clamping handle for industrial machinery, fixtures, and equipment with 3/8-16 threaded mounting points.

Installation Notes

Installation requires a properly tapped 3/8-16 hole in the mounting surface. Power down or de-energize equipment before replacing or installing clamping handles on active machinery. Verify thread engagement depth against the 0.79-inch stud length to ensure secure fastening without bottoming out. A licensed millwright, maintenance technician, or equipment installer typically performs this work in accordance with applicable machinery safety standards.
