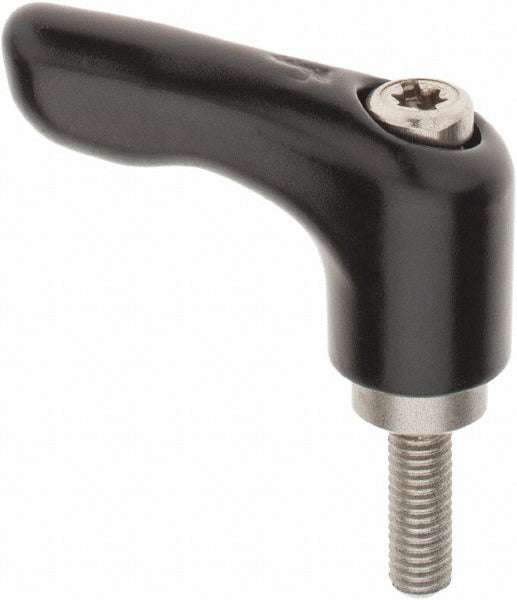

Kipp K0123.0A11X15 Adjustable Clamping Handle 10-32

Product Description

The KIPP K0123.0A11X15 is an adjustable clamping handle with a threaded stud mount, designed for use in machine guarding, fixture clamping, and general industrial fastening applications. The handle body is die cast zinc with a satin finish and features steel components with a black oxide coating. The 10-32 threaded stud measures 0.59 inches in length, with an overall handle length of 1.18 inches and an overall height of 1.30 inches. The modern 20-degree arm angle provides ergonomic grip in tight-access positions. Licensed machinists, millwrights, and equipment technicians install this type of handle on jigs, fixtures, enclosures, and adjustable assemblies.

This clamping handle suits light-duty industrial and commercial applications where repeatable hand-tightened clamping is required without tooling. Typical installations include machine tool fixtures, enclosure panels, conveyor guards, and adjustable mounting brackets. The compact hub diameter of 0.55 inches and body diameter of 0.51 inches allow fitment in space-constrained assemblies. Its threaded stud connection type makes it straightforward to install into pre-tapped holes or with a threaded insert.

Key Features

• 10-32 threaded stud mount with 0.59-inch stud length for secure, tool-free hand clamping
• Die cast zinc handle body with satin finish resists corrosion in light industrial environments
• Steel components with black oxide coating per DIN EN 12844 material specification
• 20-degree handle arm angle provides ergonomic access in restricted spaces
• Compact overall length of 1.18 inches and height of 1.30 inches for space-constrained applications
• Modern arm style with 1.18-inch handle radius for consistent grip torque by hand

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for assemblies using a 10-32 threaded stud mount with a 0.55-inch hub diameter interface.

Installation Notes

Installation requires a pre-tapped 10-32 threaded hole or a compatible threaded insert in the mating component. Disengage or de-energize any moving or powered equipment before adjusting or replacing clamping handles on active machinery. Use appropriate thread-locking compound if vibration is present in the application. Follow applicable machine guarding and fastener standards for the equipment type being serviced.
