Kipp K0122.4101 Adjustable Clamping Handle M10 X 1.50

Product Description

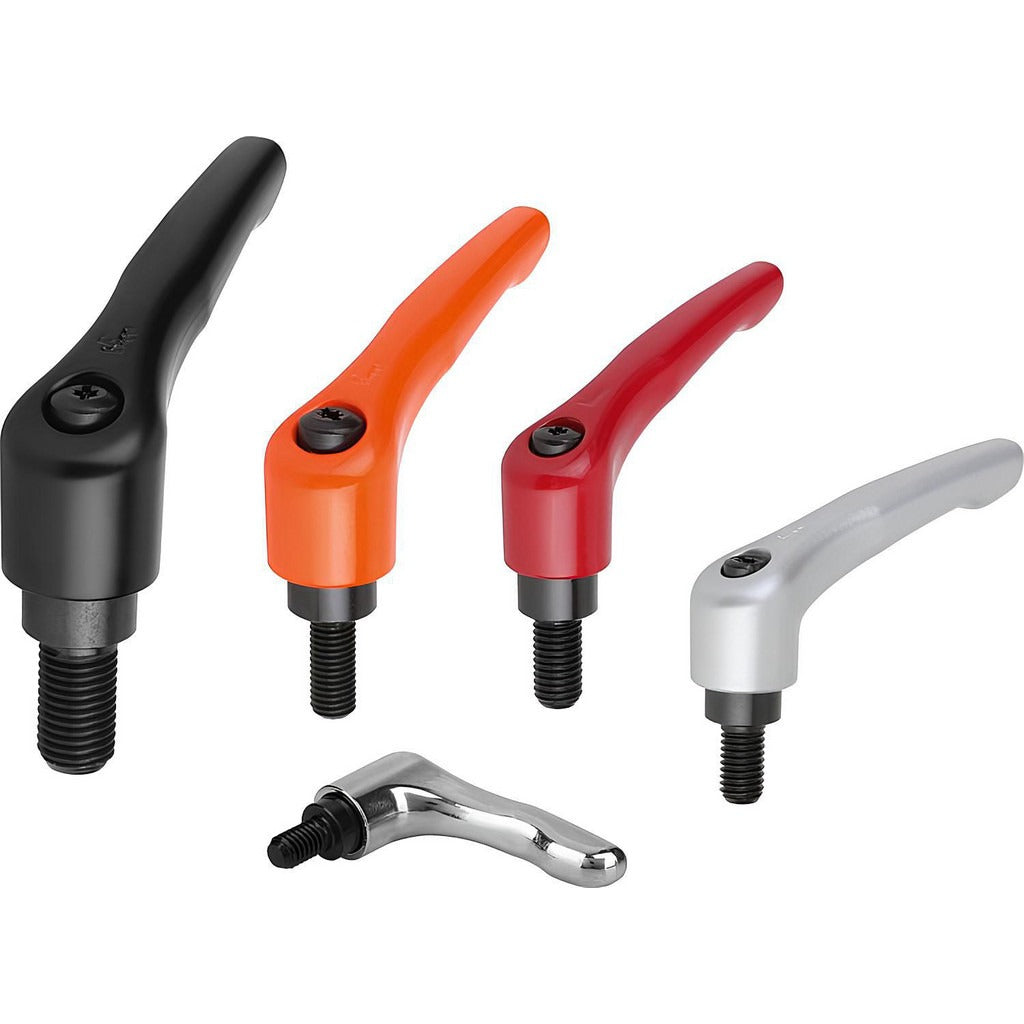

The KIPP K0122.4101 is an adjustable clamping handle designed for tool-free clamping and positioning applications in industrial and mechanical assemblies. The handle features a die cast zinc body with a powder-coated finish in black, delivering corrosion resistance and a durable grip surface. It accepts an M10 x 1.50 thread with a 17 mm threaded engagement depth, making it suitable for securing fixtures, jigs, machine guards, and adjustable stops. The steel arm is set at a 20-degree angle and spans 95 mm in handle radius length, giving technicians solid leverage without excessive bulk. This part is installed by maintenance technicians, toolmakers, and mechanical assemblers in light industrial environments.

The K0122.4101 is used in applications where hand-operated clamping and quick repositioning are required without tools. Typical install scenarios include machine tool fixtures, assembly jigs, workholding equipment, and adjustable panel or guard mounting. The 27 mm hub diameter and 19 mm base diameter make this handle a compact, practical choice for confined mounting areas. It is suited to both original equipment builds and replacement service in production and maintenance settings.

Key Features

• M10 x 1.50 threaded hole connection with 17 mm thread engagement depth
• 95 mm handle radius length and 20-degree arm angle for controlled hand torque
• Die cast zinc body construction with black oxide finish on steel components
• Powder-coated handle arm for added surface durability
• 27 mm hub diameter and 19 mm base diameter for compact fitment
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as a threaded-hole adjustable clamping handle for assemblies and fixtures requiring an M10 x 1.50 threaded mounting point.

Installation Notes

Installation is performed by hand threading the handle onto a compatible M10 x 1.50 threaded stud or boss. Ensure the mating thread is clean and free of debris before engagement. Do not use power tools to drive the handle, as this may damage the zinc body or thread insert. Verify that the 17 mm threaded depth is sufficient for the mounting stud length before final assembly.
