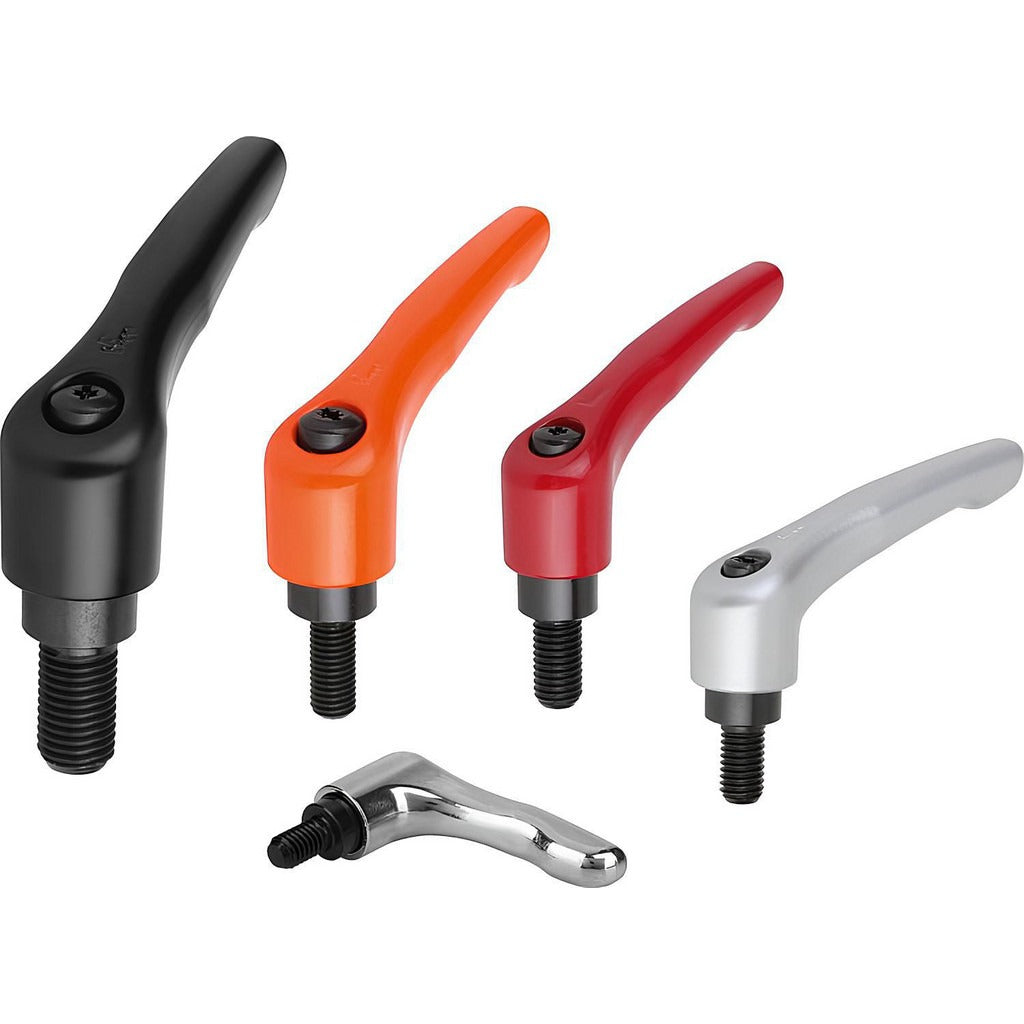

Kipp K0122.3A31 Adjustable Clamping Handle 5/16-18

Product Description

The KIPP K0122.3A31 is a threaded-hole adjustable clamping handle designed for secure manual clamping and positioning applications in industrial and mechanical assemblies. Built from die cast zinc with a powder-coated black finish, it provides a firm grip and corrosion-resistant surface for repeated use. The handle features a 5/16-18 threaded hole connection with a 0.55-inch threaded length, a 3.15-inch handle length, and a 2.30-inch overall height. Steel internal components with a black oxide finish add durability under load. This part is typically installed by machine builders, maintenance technicians, and assembly professionals working with fixtures, jigs, and adjustable mechanical components.

The K0122.3A31 is suited for use in light industrial equipment, precision fixtures, and adjustable assemblies where hand-tightened clamping is required. Its 20-degree handle arm angle supports ergonomic operation in tight or recessed mounting locations. The 0.83-inch hub diameter and 0.83-inch body diameter make it a compact fit for standard threaded mounting points. This handle is a practical choice for OEM equipment builds and field maintenance on existing assemblies requiring threaded-hole clamping hardware.

Key Features

• 5/16-18 threaded hole connection with 0.55-inch threaded depth for secure fastening
• Die cast zinc handle body with powder-coated black finish for durability and corrosion resistance
• Steel internal components with black oxide coating for added strength
• 20-degree handle arm angle for ergonomic operation in confined mounting areas
• 3.15-inch handle length and 2.30-inch overall height in a compact form factor
• Compliant with DIN EN 12844, REACH, and RoHS standards

Compatibility

Designed as a standard threaded-hole clamping handle for use with 5/16-18 threaded mounting points in industrial fixtures, jigs, and adjustable mechanical assemblies.

Installation Notes

Installation is performed by hand or with standard hand tools on a 5/16-18 threaded stud or insert. Ensure the mating thread is clean and free of debris before installation. De-energize or lock out any equipment before servicing or replacing clamping hardware on powered assemblies. Do not exceed the designed clamping load for die cast zinc handle bodies.
